H3C US110 Series Cloud-Managed Gigabit Switch | 2.5G SFP Uplink, PoE, 6kV Surge Protection for SMB & Surveillance

Brand Name:	H3C
Model Number:	H3C US110 Series Ethernet Switches
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

192Gbps - 336Gbps

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C US110 cloud-managed gigabit switch

2.5G SFP uplink PoE switch

6kV surge protection network switch

Product Description

H3C US110 Series Cloud-Managed Gigabit Switch

Product Overview

H3C US110 series Ethernet switches are next-generation cloud-managed switch products designed for small and medium-sized commercial markets. They deliver cost-effective cloud management performance while supporting high-performance access requirements.

Standard Models Specifications

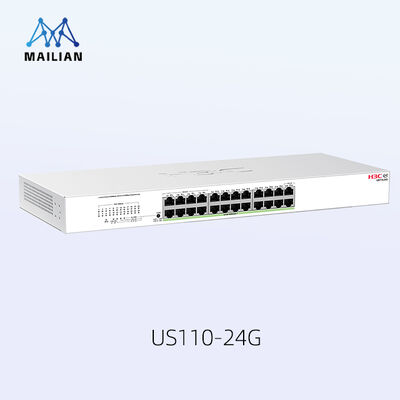

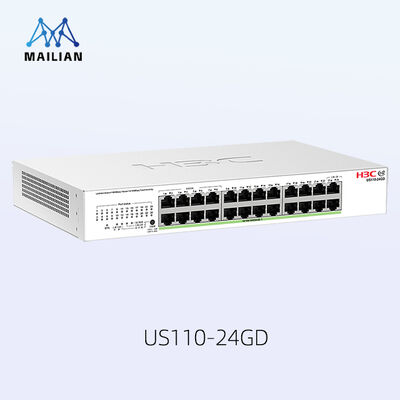

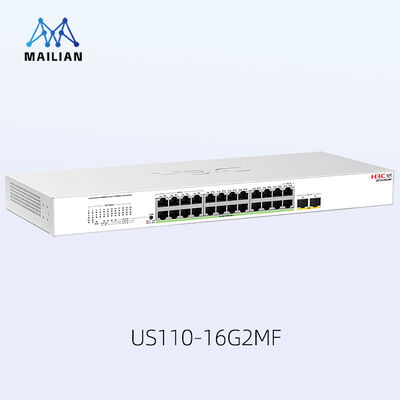

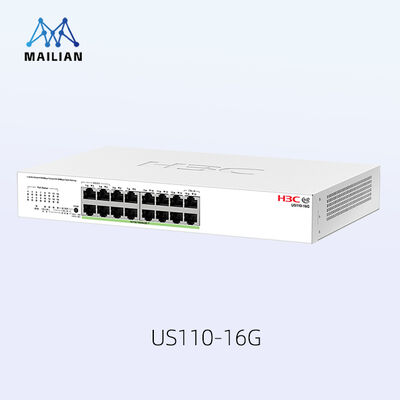

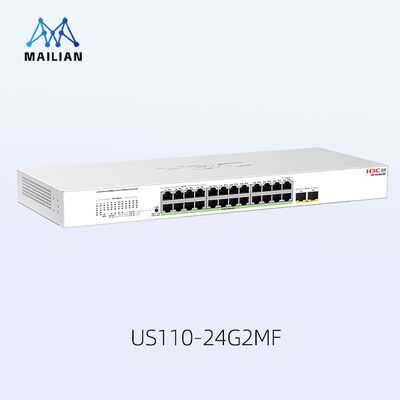

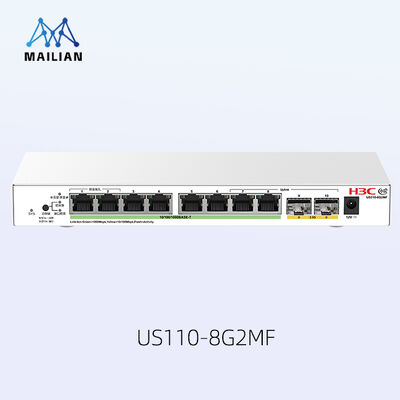

Support Features	US110-8G2MF	US110-16G	US110-16G2MF	US110-24GD	US110-24G	US110-24G2MF
Exchange Capacity	192Gbps	336Gbps	336Gbps	336Gbps	336Gbps	336Gbps
Package Forwarding Rate	19.5Mpps	24Mpps	31.5Mpps	36Mpps	36Mpps	43.5Mpps
Fixed Ports	8×10/100/1000 Base-T 2×2.5G/1G SFP	16×10/100/1000 Base-T	16×10/100/1000 Base-T 2×2.5G/1G SFP	24×10/100/1000 Base-T	24×10/100/1000 Base-T	24×10/100/1000 Base-T 2×2.5G/1G SFP
Priority Forwarding Ports	Ports 1-2	Ports 1-4	Ports 1-4	Ports 1-8	Ports 1-8	Ports 1-8
Static Power Consumption	1.5W	2.76W	2.81W	3.75W	3.75W	3.8W
Full Load Power Consumption	6W	8.32W	10.2W	12.92W	12.92W	14.8W
Weight	≤0.51kg	≤1.87kg	≤1.88kg	≤1.92kg	≤2.36kg	≤2.43kg
Dimensions (W×D×H, mm)	235×105×27	294×179×43.6	294×179×43.6	294×179×43.6	440×173×43.6	440×173×43.6

PoE Models Specifications

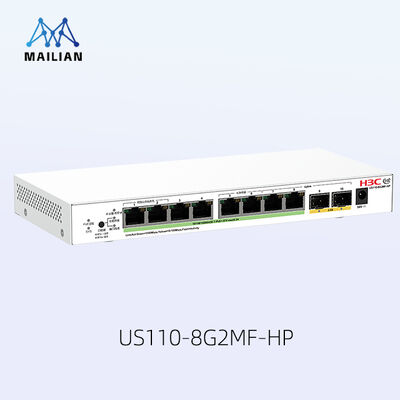

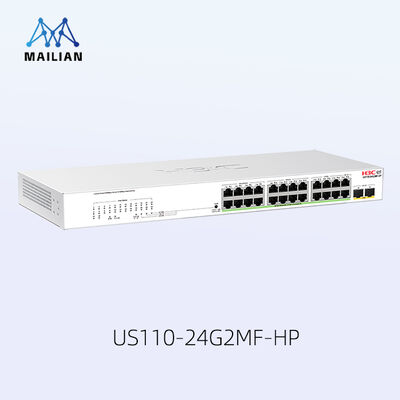

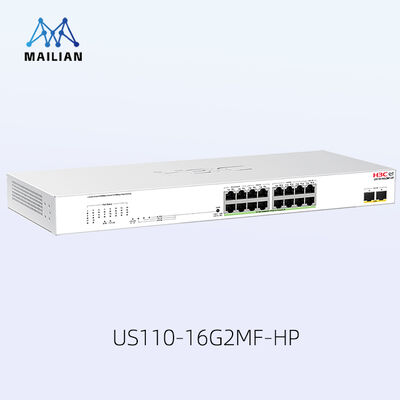

Support Features	US110-8G2MF-HP	US110-16G2MF-HP	US110-24G2MF-HP
Exchange Capacity	192Gbps	336Gbps	336Gbps
Package Forwarding Rate	19.5Mpps	31.5Mpps	43.5Mpps
Fixed Ports	8×10/100/1000 Base-T PoE+ 2×2.5G/1G SFP	16×10/100/1000 Base-T PoE+ 2×2.5G/1G SFP	24×10/100/1000 Base-T PoE+ 2×2.5G/1G SFP
Single-port Max PoE Power	30W	30W	30W
Max System PoE Power	130W	225W	370W
Static Power Consumption	5.1W	2.81W	4.79W
Full Load Power Consumption	136W	243W	390W
Weight	≤0.52kg	≤3.21kg	≤3.38kg
Dimensions (W×D×H, mm)	235×105×27	440×210×43.6	440×210×43.6

Common Features

MAC Address Table: 16K
VLAN: Support for 802.1Q VLANs, Port-based VLANs, 16 VLANs
DHCP: Client support, DHCP snooping
Safety Features: Unknown unicast suppression, Multicast storm suppression, Broadcast storm suppression
Management: H3C Xiaobei APP remote management, Jianyou Cloud O&M, Topology display, Anti-loop, Port isolation, Port flow control, Long-distance transmission, Port bandwidth rate limiting, Remote reboot, Version upgrades, Factory reset
Port Lightning Protection: 6KV
Operating Temperature: 0ºC～40ºC / Storage: -40ºC～70ºC
Operating Humidity: 10%~90% / Storage: 5%~90% RH (non-condensing)
Certification: CQC certification, network access license
MTBF: >200,000 hours
Heat Dissipation: Fanless silent design (natural heat dissipation)
Installation: Tabletop or rack-mounted (standard hanging ears)
Input Voltage: 90～264V AC

Key Features

Easy Management

Local: Standard DIP switch with multiple practical functions, hardware button for one-click mode switching. Cloud: H3C Xiaobei APP support for remote visual management, configuration adjustment, status monitoring, and quick fault location.

Rich Port Types

Gigabit Ethernet ports with backward compatibility, 2.5G optical ports for increased bandwidth, dual 2.5G optical port aggregation supporting up to 5G uplink bandwidth for flexible, scalable high-speed network architecture.

PoE Smart Power Supply

IEEE 802.3af/at standards support, up to 30W per port
Fast PoE: Powers PD devices within 10 seconds after switch power-on
Permanent PoE: Maintains power during thermal restart
PoE Watchdog: Automatic monitoring and millisecond-level self-healing
Non-standard PoE power supply compatibility

Business Quality Assurance

Forwarding Priority Ports: Zero packet loss for core services during network congestion
Power Supply Priority Ports: Zero interruption for critical devices during power shortages

Reliable Safety Protection

Over-current and over-voltage protection
Built-in professional high-voltage power supply
6KV lightning protection standard across all models

Green Energy-Saving Design

Latest energy-saving chips and innovative architecture
Low-power operation reduces maintenance costs
EU RoHS compliant materials
Reduced radiation meeting household appliance standards
