H3C US100 Series Compact Gigabit Ethernet Switch with Fanless Design, Plug and Play, and Energy-Saving Features for Home Office and SMB Networks

Brand Name:	H3C
Model Number:	H3C US100 series small port full Gigabit switches
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C US100 Gigabit Ethernet switch

fanless network switch for SMB

compact plug and play Ethernet switch

Product Description

H3C US100 Series 5/8-Port Compact Gigabit Ethernet Switch

Full Gigabit Ports, Plug and Play, Fanless, Energy-Saving for Home Office, SMB and Surveillance Network

Product Overview

H3C US100 series small port full Gigabit switches are a new generation of green energy-saving unmanaged Ethernet switch products launched by H3C. These switches are convenient to install and maintain, feature rich service capabilities, and can be widely used in small and micro enterprises, commercial chains, hotels, campuses, and other scenarios.

Technical Specifications

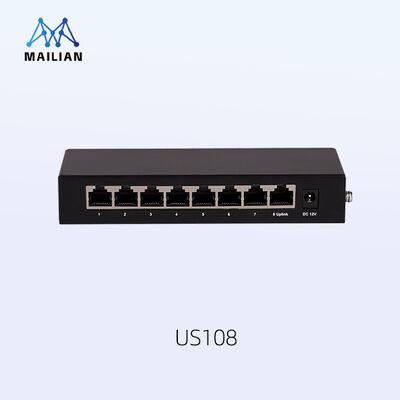

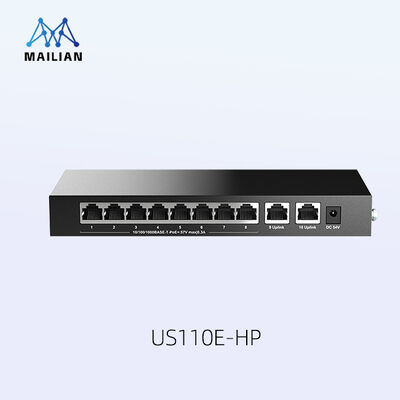

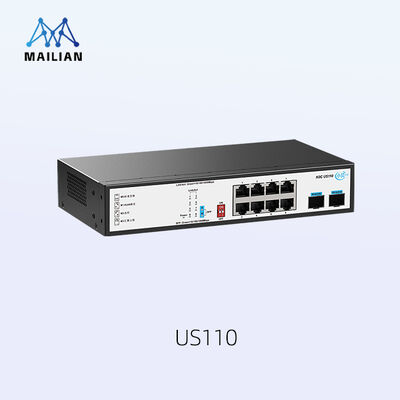

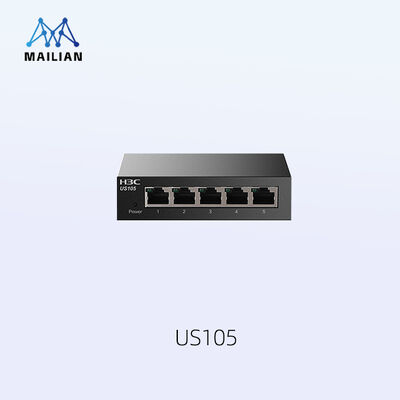

Support Features	US105	US108	US110	US110E-HP
Overall dimensions (WDH) mm	1555827	1555827	23012044	2058527
Fixed port	5 x 10/100/1000Base-T ports	8 x 10/100/1000Base-T ports	8 x 10/100/1000Base-T ports + 2 x 1000Base-X SFP ports (uplink port)	10 x 10/100/1000Base-T electrical ports
Mode switching	Standard exchange Port isolation	Standard exchange Port isolation	Standard exchange VLAN mode Flow control mode Gather the upper couplet	Standard exchange Port isolation Long-distance transmission
MAC address table	2K	4K	4K	4K
Exchange capacity	10Gbps	16Gbps	20Gbps	20Gbps
Forwarding capabilities	7.4Mpps	11.9Mpps	14.9Mpps	14.9Mpps
Package cache	1Mbit	1.5Mbit	2Mbit	2Mbit
Exchange mode	Store forwarding mode
PoE	Not supported	PoE+ support, the maximum power supply power of a single port is 30W Supports permanent PoE Support PoE watchdog
PoE power	-	120W
Power supply	12V/0.5A DC	12V/0.5A DC	100V～240V AC	54V/2.4A DC
Operating temperature/storage temperature	0ºC~45ºC/-40ºC~70ºC
Operating humidity/storage humidity	5%~95% (non-condensing)
Port lightning protection	6kV
Fan	No fan, natural heat dissipation
Certification	CQC certification, network access license
MTBF	>50000H
Installation method	Tabletop

Key Features

Meets IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab standards.
Port protection reinforcement, 6KV professional lightning protection.
10/100/1000M adaptive Ethernet ports.
Each port supports Auto-MDI/MDIX functions.
Supports permanent PoE, and the switch restarts the port without losing power, and the PoE power supply is zero.
Green Ethernet technology automatically reduces power consumption when the port is not connected or connected to a short network cable, achieving the purpose of saving equipment energy.
