H3C S6850 Series Data Center Switch with 3.6Tbps to 4Tbps Switching Capacity, 48x25G and 8x100G Ports, and VXLAN and MP-BGP EVPN Support

Brand Name:	H3C
Model Number:	H3C S5170-EI Series
MOQ:	1
Price:	Starting at USD 7,000 (depending on order quantity and specific model)
Payment Terms:	T/T
Supply Ability:	Up to 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

FCC/ICES/VCCI/CE/RCM/CCC/RoHS/REACH

Document:

H3C S6850 Series Data Cente...et.pdf

Switching Capacity:

3.6Tbps To 4Tbps(Subject To Specific Model)

Forwarding Capacity:

2024 Mpps

CPU:

C3000,2.2GHz@4Core

Flash/SDRAM:

4GB/8GB

Buffer(byte):

32M

Power Module Slot:

Fan Tray Slot:

4 Or 5 Hot-swappable Fan, Fan Speed Adjustable And Wind Invertible(Subject To Specific Model)

Expansion Slot:

2(6850-2C)

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Supply Ability:

Up to 30 days

Highlight:

3.6Tbps to 4Tbps Switching Capacity Data Center Switch

48x25G and 8x100G Ports Network Switch

VXLAN and MP-BGP EVPN Support H3C S6850 Series

Product Description

H3C S6850 Series Data Center Switches

H3C S6850 high-density intelligent switch series is developed for data centers and cloud computing networks. It provides powerful hardware forwarding capacity and abundant data center features, offering up to 48*25G ports and 8*100G ports. The switch supports redundant and hot-swappable power supplies and fans, with field-changeable airflow configurations.

This switch series is ideal for high-density 25GE switching and aggregation in data centers and cloud computing networks, and can operate as a TOR access switch on overlay or integrated networks.

Available Models

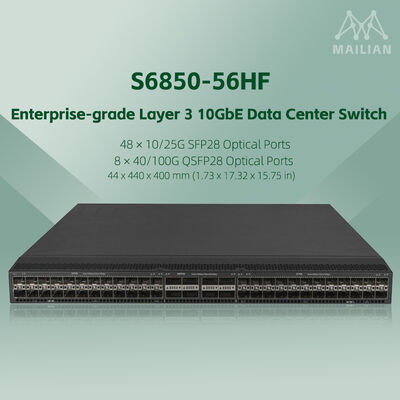

S6850-56HF: 48 * 25G SFP28 ports, 8 * 100G QSFP28 ports (25GE SFP28 supports autosensing down to 10GE/1GE)

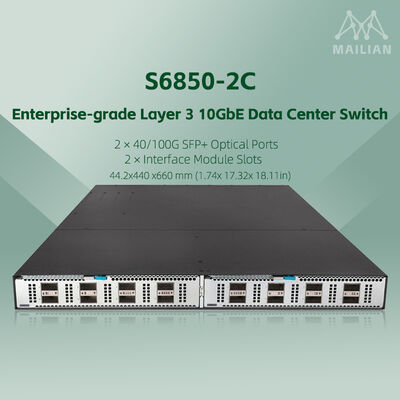

S6850-2C: 2 service slots, 2 * 100G QSFP28 ports

Data Center Features

VXLAN: Provides higher scalability of Layer 2 segmentation and better network path utilization
MP-BGP EVPN: Serves as VXLAN control plane to simplify configuration and reduce full mesh requirements
FCoE (Fiber Channel over Ethernet): Enables storage, data, and computing services transmission on one network
Data Center Bridging: PFC, ETS, and DCBX ensure low latency and zero packet loss for storage and computing services

Hardware Specifications

Item	S6850-56HF	S6850-2C
PID	LS-6850-56HF-H3	LS-6850-2C/LS-6850-2C-H1
Dimensions (H * W * D)	Without package: 44 * 440 * 400 mm With package: 150 * 658 * 556 mm	44.2 * 440 * 660 mm
Weight	≤ 10 kg (22.05 lb)	≤ 16 kg (35.27 lb)
Port Configuration	8 * 100G QSFP28, 48 * 25G SFP28	2 * 100G QSFP28, 2 expansion slots
Switching Capacity	4 Tbps	3.6 Tbps
Forwarding Capacity	2024 Mpps	2024 Mpps
Operating Temperature	0-45℃ (32°F to 113°F)	0-45℃ (32°F to 113°F)

Software Specifications

Virtualization & SDN

IRF2.0, M-LAG, S-MLAG, BGP-EVPN, VxLAN, EVPN ES, H3C SeerEngine-DC

Routing Protocols

Static, RIP, OSPF, ISIS, BGP, VRRP, PBR (IPv4 & IPv6)

MPLS/VPLS

L3 MPLS VPN, VLL, VPLS, MCE, MPLS OAM

Multicast

IGMP/MLD snooping, PIM, MSDP, Multicast VPN

Reliability

LACP, STP/RSTP/MSTP, RRPP, ERPS, BFD, Smartlink

QoS & Security

WRED, flexible queue scheduling, traffic shaping, CAR, COPP, AAA authentication

Programmability & Analytics

OpenFlow, NETCONF, Ansible, Python/TCL/RESTful API, sFlow, NetStream, Telemetry

High-Density 25GE Access

The switch offers high-density 100G/40G/25G/10G ports with wire-speed forwarding capacity up to 4 Tbps. With standard 25G ports, it provides high-density server access for high-end data centers.

RoCE (RDMA over Converged Ethernet)

Remote Direct Memory Access (RDMA) directly transmits user application data to server storage spaces, eliminating multiple data copying and context switching operations to reduce CPU load.

RoCE Key Features: PFC (Priority-based Flow Control), ECN (Explicit Congestion Notification), DCBX (Data Center Bridging Capability Exchange Protocol), ETS (Enhanced Transmission Selection)
