H3C S5170-EI Series Fully Managed Network Switch with 10G Uplink, PoE+ Support, and IPv4/IPv6 Dual-Stack

Brand Name:	H3C
Model Number:	H3C S5170-EI Series
MOQ:	1
Price:	$500 to $1020 (depending on order quantity and specific model)
Payment Terms:	T/T
Supply Ability:	Up to 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

FCC/ICES/VCCI/CE/RCM/CCC

Document:

System Switching Capacity:

128Gbps To 216Gbps(Subject To Specific Model)

Forwarding Capacity:

96Mpps To 161Mpps(Subject To Specific Model)

Flash:

SDRAM:

Buffer(byte):

MAC Address Entries:

32768

VLAN Table:

VLAN Interface:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Supply Ability:

Up to 30 days

Highlight:

10G Uplink Network Switch

PoE+ Support Ethernet Switch

128Gbps Switching Capacity Managed Switch

Product Description

H3C S5170-EI Series Fully Managed Weak Layer 3 10G Uplink Switches

A new-generation high-performance, high-port-density, highly secure and easy-to-install intelligent managed Gigabit Ethernet switch developed using industry-leading ASIC technology. It supports IPv4/IPv6 dual-stack management and forwarding, static routing, as well as routing protocols such as RIP and OSPF, and provides comprehensive management and security features. Positioned for the access and aggregation layers of enterprises and campus networks, it delivers high-density Gigabit access with fixed 10G uplink ports and supports PoE+.

Available Models

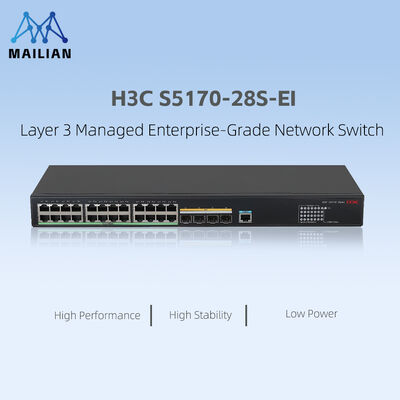

S5170-28S-EI: 24 x 10/100/1000BASE-T Ethernet ports, 4 x 1G/10G BASE-X SFP Plus ports

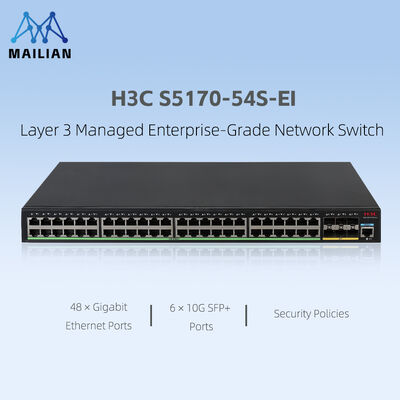

S5170-54S-EI: 48 x 10/100/1000BASE-T Ethernet ports, 6 x 1G/10G BASE-X SFP Plus ports

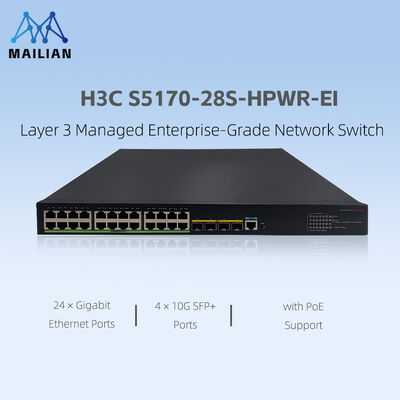

S5170-28S-HPWR-EI: 24 x 10/100/1000BASE-T Ethernet ports (PoE+), 4 x 1G/10G BASE-X SFP+ ports

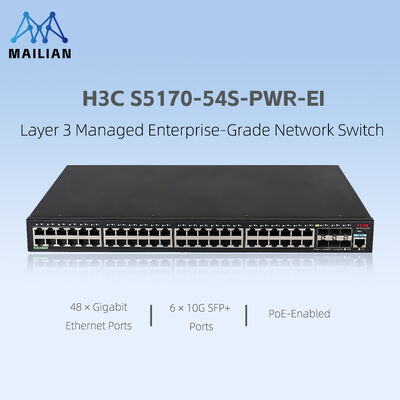

S5170-54S-PWR-EI: 48 x 10/100/1000BASE-T Ethernet ports (PoE+), 6 x 1G/10G BASE-X SFP+ ports

Hardware Specifications

Feature	S5170-28S-EI	S5170-54S-EI	S5170-28S-HPWR-EI	S5170-54S-PWR-EI
Port Switching capacity(bps)	128Gbps	216Gbps	128Gbps	216Gbps
System Switching Capacity(bps)	598Gbps
Forwarding capacity	96Mpps	161Mpps	96Mpps	161Mpps
Flash	512M
SDRAM	1G
Buffer(byte)	2M
CPU	1GHz, 2Cores
Dimensions (W * D * H)	440mm160mm43.6mm	440mm260mm43.6mm	440mm320mm43.6mm	440mm320mm43.6mm
Weight	≤2.2kg	≤4.0kg	≤5kg	≤5.5kg
10/100/1000Base-T port	24	48	24	48
SFP+ port	4	6	4	6
Input voltage	AC: Rated voltage range: 100V~240V AC, 50/60Hz Max voltage range: 90V~264V AC, 47~63HZ
Power consumption (Full configuration)	37W	53W	460W (including 370w PoE)	470W (including 370w PoE)
Number of Fan	1	1	2	2
MTBF(Year)	105.515	34.74	44.59	38.25
MTTR(Hour)	1	1	1	1
Operating temperature	-5℃ ~ 50℃(Normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with transmission distance between 20km and 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage temperature	-40～+70℃
Operating & storage humidity	5% RH to 95% RH, non-condensing

Performance Specifications

Entries	S5170-EI Series Switches
MAC address entries	32768
VLAN table	4094
VLAN interface	32
IPv4 routing entries	6144
IPv4 ARP entries	4096
IPv4 ACL entries	VFP:512 Ingress:1280 Egress:512
IPv4 multicast L2 entries	2000
IPv4 multicast L3 entries	2000
IPv6 unicast routing entries	2048
IPv6 ACL entries	VFP:512 Ingress:1280 Egress:512
IPv6 ND entries	2048
IPv6 multicast L2 entries	1000
IPv6 multicast L3 entries	1000
QOS forward queues	8
Jumbo frame length	12288
Max Stacking Members	9
Max Stacking Bandwidth	80Gbps
Max num in one link group	8
Link group num	126

Software Features

Feature	S5170-EI Series Switches
Port aggregation	GE/10GE port aggregation Dynamic aggregation Static aggregation Cross-device aggregation
Broadcast/Multicast/Unicast storm suppression	Storm suppression based on port bandwidth percentage Storm suppression based on PPS Storm suppression based on BPS Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression
IRF2	Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces Local device stacking and remote device stacking
MAC address table	Static MAC address Blackhole MAC address
VLAN	Port-based VLAN MAC-based VLAN Protocol-based VLAN QinQ and selective QinQ VLAN mapping Voice VLAN/Private VLAN/Super VLAN GVRP
DHCP	DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP Server DHCP auto-config
IP routing	Static routing RIPv1/v2 and RIPng OSPFv1/v2 and OSPFv3 IS-IS
Multicast	IGMPv1/IGMPv2/IGMPv3 IGMP Snooping V2/V3 MLD Snooping Multicast VLAN PIM-SM/PIM-SSM/PIM-DM MSDP
Layer 2 ring network protocol	STP/RSTP/MSTP/PVST/PVST+ Smart Link RRPP G.8032 ERPS (Ethernet Ring Protection Switching)
ACL	Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses, Time range-based ACL VLAN-based ACL Bidirectional ACL
QoS	Port rate limit (receiving and transmitting) Packet redirection Committed access rate (CAR) Eight output queues on each port Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR 802.1p DSCP remarking
Traffic statistic	sFlow
Mirroring	Port mirroring RSPAN
Security	Hierarchical user management and password protection AAA authentication support RADIUS authentication HWTACACS SSH2.0 Port isolation 802.1X authentication, centralized MAC authentication Port security Flow control IP Source Guard HTTPs EAD
Management and maintenance	Loading and upgrading through XModem/FTP/TFTP Zero Touch Provisioning Configuration through CLI, Telnet, and console port SNMPv1/v2c/v3 and Web-based NMS Restful Python Remote monitoring (RMON) alarm, event, and history recording IMC NMS System log, alarming based on severities, and output of debugging information NTP Ping, Tracert Virtual cable test (VCT) Device link detection protocol (DLDP) Loopback-detection
EMC	FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI-CISPR 32 CLASS A EN 55032 CLASS AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254 YD/T 993
Safety	CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1

Advanced Features

High Availability

H3C S5170-EI series switches feature multiple redundancy measures at the device and link levels, support current and voltage surge control, overheat protection, power and fan troubleshooting and alert, as well as fan speed adjustment when the temperature changes. Apart from device level redundancy, The S5170-EI series switch also provides diverse link redundancy support such as LACP/STP/RSTP/MSTP/Smart Link protocols. It supports IRF2 and 1: N redundancy backup as well as cross-device link aggregation which substantially increases network reliability.

Abundant QoS Features

H3C S5170-EI series switches offer abundant QoS features, including packet filtering based on packet header fields from Layer 2 through Layer 4, flexible queuing and scheduling algorithms configured on a per-port or per-queue basis, committed access rate (CAR) with the minimum granularity at 16 kbps, and port mirroring in both outbound and inbound directions for network monitoring and trouble shooting.

Professional Surge Protection

H3C S5170-EI series switches use professional built-in surge protection technology and support the industry-leading 10KV service port surge protection capability, which greatly reduces the damage rate of surge strikes to equipment even in harsh working environments.

Excellent Manageability

H3C S5170-EI series switches make switch management with ease with the support of SNMPv1/v2c/v3, which can be managed by NM platforms, such as Open View and iMC. With CLI and Telnet switch management is made easier. And with SSH 2.0 encryption, switch management security is enhanced. The switches support BIMS protocol and can automatically download configuration files and applications from the server to achieve zero configuration startup, greatly reducing the initial configuration workload of large networks and complex networks.

Application-Driven Campus

H3C S5170-EI series switches support H3C Application-Driven Campus (AD-Campus) Solution. AD-Campus is innovative campus network solution which aims to achieve great integration and convergence to easily reflect intent to network operation. With full lifecycle, open architecture and deep intelligence, AD-Campus is along with partner to be committed to solve existing challenges and assist customers to accelerate digital innovation and transformation.

Advanced PoE Capabilities

H3C S5170-EI series switches support PoE power supply and can remotely power powered devices (PDs) such as APs and cameras. In addition, H3C S5170-EI series also integrates AI capabilities into PoE technology, allowing PoE switches to support:

Fast PoE: Typically, PIs (power interface) does not deliver power to PDs (powered device) the moment the PSE (power sourcing equipment) is powered on but wait until the PSE completes startup. Fast PoE enables PIs to deliver power to PDs within few seconds after power is supplied to the PSE.
Perpetual PoE: Perpetual PoE continuously monitors the PD states and ensures continued power supply to PDs even when the PSE device is hot rebooting.

Green Design

H3C S5170-EI series switches use the latest energy-saving chips and innovative architecture design solutions to achieve the lowest power consumption of gigabit switches, bringing users green, environmentally friendly and energy-saving new network access products and reducing user maintenance costs. At the same time, H3C S5170-EI series switches adopt various green energy-saving designs, including auto-power-down (port automatic energy-saving), EEE energy-saving function, and meet the EU RoHS standard for material environmental protection and safety.
