H3C MS4000-EI Series Web-Managed Gigabit Security Surveillance Switch with PoE+ Support and 250m Power Supply Distance

Brand Name:	H3C
Model Number:	H3C MS4000-EI Series
MOQ:	1
Price:	$48 to $208 (depending on order quantity and specific model)
Payment Terms:	T/T
Supply Ability:	Up to 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Switching Capacity:

36Gbps To 52Gbps(Subject To Specific Model.)

Forwarding Rate:

27Mpps To 39Mpps(Subject To Specific Model.)

MAC Address Table:

8K To 16K(Subject To Specific Model.)

Packet Buffer:

Power Supply:

100~240V AC

Operating / Storage Temperature:

0°C～50°C / -40°C～70°C(Subject To Specific Model.)

MTBF:

>50000H

Simple Web Management:

Supported

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Supply Ability:

Up to 30 days

Highlight:

Max Power Supply Distance Up to 250 Meters Network Switch

Simple Web Management Gigabit Security Switch

36Gbps Switching Capacity PoE Switch

Product Description

H3C MS4000-EI Series Web-Managed Gigabit Security Surveillance Switches

H3C MS4000-EI Series Security Switches represent a new generation of energy-efficient switch products specifically engineered for the security surveillance industry. Featuring advanced hardware processing capabilities, comprehensive service functions, and security-specific features with diverse port configurations, these switches meet the demanding requirements of IP bearer networks for surveillance systems with varying code rates and IoT applications.

Engineered with professional lightning protection circuits and high-reliability design, these switches ensure stable operation in complex security surveillance environments. The built-in Web management interface simplifies configuration and maintenance, while enhanced Power over Ethernet (PoE+) support delivers robust power for high-power surveillance devices, wireless APs, and other connected terminals.

Product Specifications

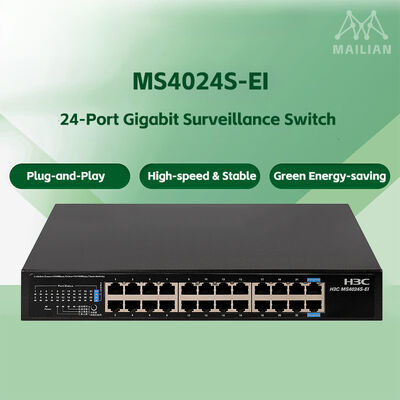

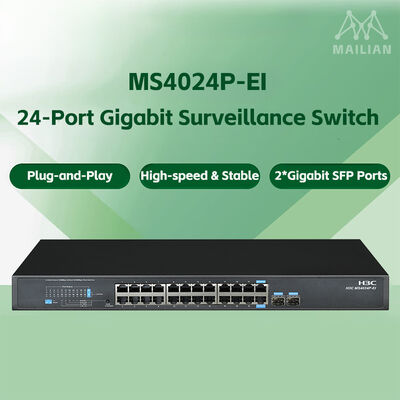

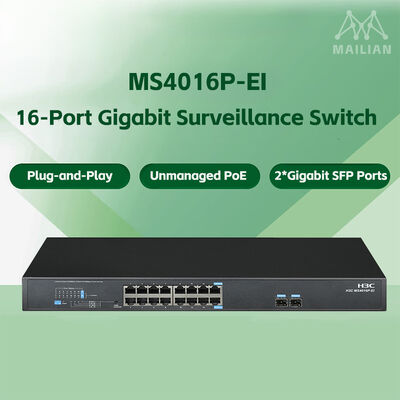

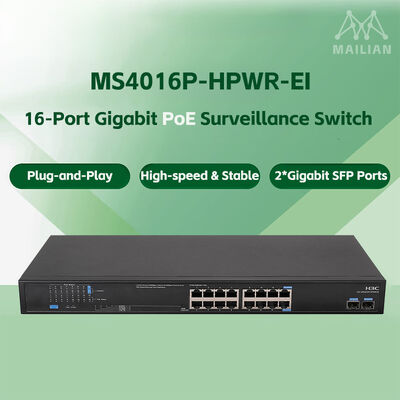

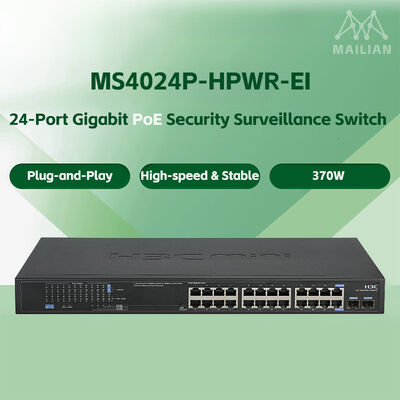

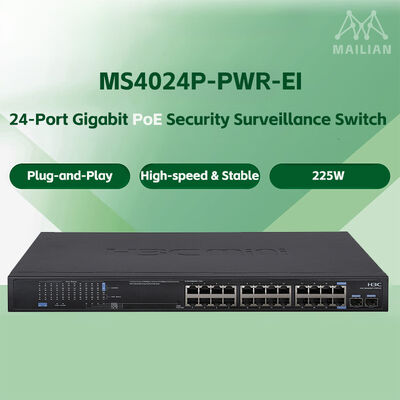

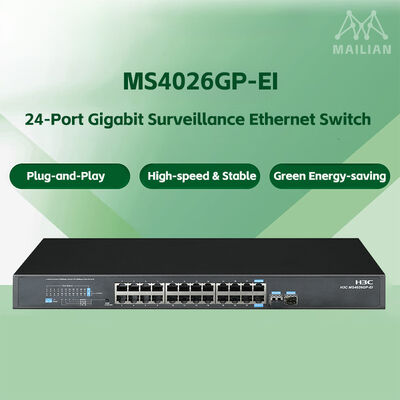

Item	MS4016P-EI	MS4024S-EI	MS4024P-EI	MS4026GP-EI	MS4016P-HPWR-EI	MS4024P-PWR-EI	MS4024P-HPWR-EI
Dimensions (W×H×D)	440×173×44mm	294×179×44mm	440×173×44mm	440×173×44mm	440×210×44mm	440×210×44mm	440×210×44mm
Fixed Ports	16× 10/100/1000Base-T 2× 1000Base-X SFP	24× 10/100/1000Base-T (2 uplink ports)	24× 10/100/1000Base-T 2× 1000Base-X SFP	24× 10/100/1000Base-T 2× 1000Base-X SFP 1× SFP Gigabit module	16× 10/100/1000Base-T (2 uplink ports) 2× 1000Base-X SFP	24× 10/100/1000Base-T 2× 1000Base-X SFP	24× 10/100/1000Base-T 2× 1000Base-X SFP
MAC Address Table	8K	16K	8K	16K	8K	16K
PoE+ Power Supply	100~240V AC				Supports PoE+ Max total power output: 225W Max power supply distance: 250 meters (Note: Subject to terminal adaptation support)		Supports PoE+ Max total power output: 370W Max power supply distance: 250 meters (Note: Subject to terminal adaptation support)
Switching Capacity	36Gbps	48Gbps	52Gbps	52Gbps	36Gbps	52Gbps	52Gbps
Forwarding Rate	27Mpps	35.7Mpps	39Mpps	39Mpps	27Mpps	39Mpps	39Mpps
Operating Temperature	0°C～40°C	0°C～50°C	0°C～40°C	0°C～40°C	0°C～40°C	0°C～40°C	0°C～40°C

Key Features & Benefits

Multiple Working Modes

One-key mode switching supports four operational modes: Monitoring Mode, Standard Switching, Aggregation Uplink, and Port Isolation for flexible deployment.

Easy Management

Built-in simple Web management interface enables straightforward configuration and maintenance without complex training.

High Reliability

Integrated security-grade lightning protection and professional high-withstand-voltage power supplies ensure stable operation in harsh environments.

High Performance

Shared buffer architecture multiplies available buffer space per port, significantly improving forwarding performance for burst traffic.

Green Design

Low power consumption with fanless, noise-free operation for energy-efficient and quiet deployment.

Security-Grade High-Power PoE

Supports PoE+ with maximum 30W per port and extended power supply distance up to 250 meters (terminal adaptation required).

PoE+ Power Supply: 100~240V AC | Maximum total output: 225W | Maximum power supply distance: 250m (subject to terminal support)

Additional Specifications

Packet Buffer: 4Mb
Switching Mode: Store-and-Forward
Simple Web Management: Supported
Power Supply: 100~240V AC
Cooling: Fanless passive cooling or dual fans depending on model
Storage Temperature: -40°C～70°C
Operating/Storage Humidity: 5%~95% (non-condensing)
Certifications: CQC Certification, Network Access License
MTBF: >50,000 hours
