H3C MS4000 Series Gigabit Ethernet Switch with 6 kV Lightning Protection PoE+ Support and Plug-and-Play Functionality

Brand Name:	H3C
Model Number:	H3C MS4000 Series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T
Supply Ability:	Up to 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Lightning Protection:

6 KV Common-mode Protection

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Supply Ability:

Up to 30 days

Highlight:

6 kV common-mode protection Ethernet Switch

PoE+ support Gigabit Switch

Plug-and-play functionality Network Switch

Product Description

H3C MS4000 Series New Generation Unmanaged Gigabit Ethernet Switches

Dedicated Ethernet switches specifically developed for security, surveillance, and IoT applications, featuring advanced hardware processing, comprehensive service functions, and security-specific features.

Key Features

Advanced energy-saving chip technology and innovative architectural design
Wire-speed Layer 2 gigabit forwarding on all ports
Shared buffer architecture for enhanced performance under burst traffic
PoE+ models deliver up to 30W per port for high-power surveillance cameras
Plug-and-play operation with simple network policy deployment
Professional-grade lightning protection with 6KV common-mode protection
DIP switch support for simplified network configuration

Available Models

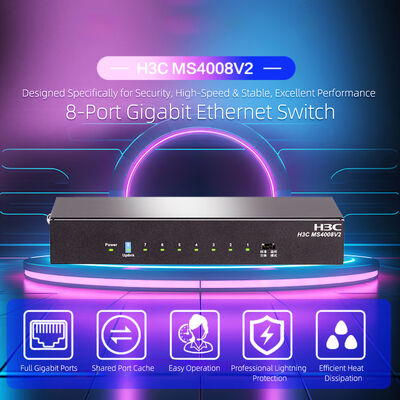

MS4008V2

8 × 10/100/1000Base-T Ethernet ports

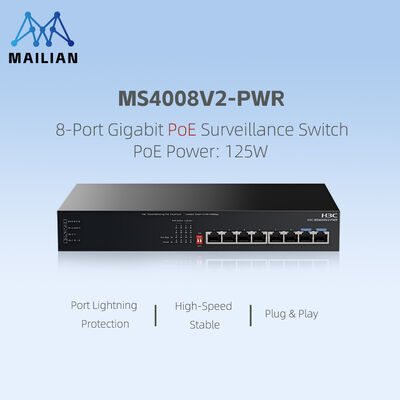

MS4008V2-PWR

8 × 10/100/1000Base-T Ethernet ports with PoE+ support

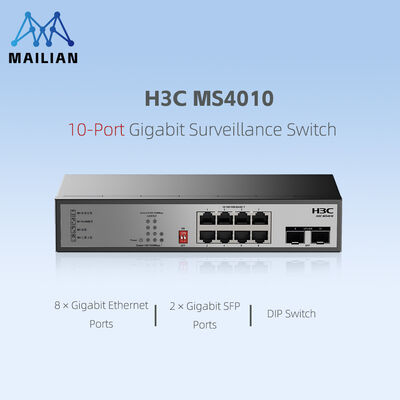

MS4010

8 × 10/100/1000Base-T ports + 2 × 1000Base-X SFP ports

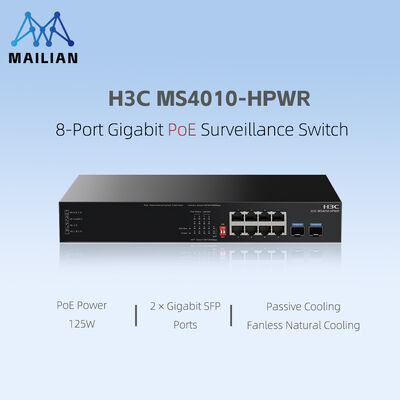

MS4010-HPWR

8 × 10/100/1000Base-T ports + 2 × 1000Base-X SFP ports with PoE+ support

Technical Specifications

Attribute	MS4008V2	MS4008V2-PWR	MS4010	MS4010-HPWR
Fixed Ports	8 × 10/100/1000M BASE-T	8 × 10/100/1000M BASE-T	8 × 10/100/1000M BASE-T 2 × 1000M SFP	8 × 10/100/1000M BASE-T 2 × 1000M SFP
Switching Capacity	20 Gbps	20 Gbps	28 Gbps	28 Gbps
Forwarding Performance	16 Mpps	16 Mpps	20 Mpps	20 Mpps
MAC Address Capacity	4K
Dimensions (L×W×H)	155×58×27 mm	294×179×44 mm	230×120×43.6 mm	294×179×44 mm
Power Consumption	≤ 4.6 W	≤ 148 W (PoE: 125 W)	≤ 5.9 W	≤ 150 W (PoE: 125 W)
Operating Temperature	0°C ~ 40°C

Standards Compliance

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, ANSI/IEEE 802.3 NWay Auto-negotiation
