H3C S6520X-EI Series Network Switch Enhanced 10GE Switches With ASIC Technology

Brand Name:	H3C
Model Number:	H3C S6520X-EI Series
MOQ:	1
Price:	According to the Model and configuration requirements
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Tolly

Document:

Products Item:

Campus-Aggregation Switch

Communication Mode:

Full-Duplex & Half-Duplex

Switching Capacity:

960Gbps-2160Gbps

Forwarding Capacity:

705Mpps-1050Mpps

Dual Core, 1.6GHz

Console Ports:

Management Ethernet Ports:

Warranty:

3 Years

Products Status:

Order

Packaging Details:

Original packaging

Supply Ability:

Highlight:

H3C S6520X-EI Series Network Switch

ASIC Technology H3C S6520X Switch

Product Description

Overview

H3C S6520X-EI Series Switches—Industry-leading high performance and scalable 10GE access switching solution developed by H3C using ASIC technology with modular dual power, fixed or modular uplinks (10GE/40GE/100GE) and IRF for resiliency. The series offers OSPF/BGP and multicast, SDN enabled and flexible management.

H3C S6520X-EI Series Switches include the following models:

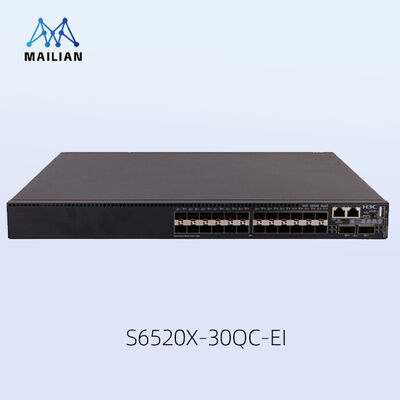

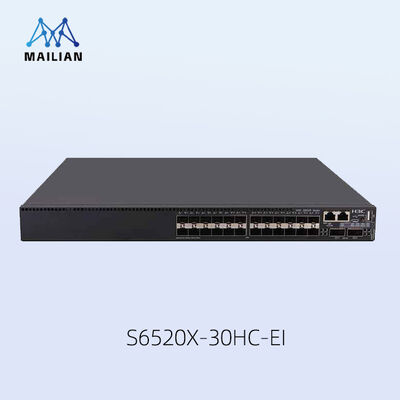

S6520X-30QC–EI: 24 × 1/10G SFP+ ports, 2 × QSFP+ ports (40GE, can be split into four 10GE ports.), 2 × expansion slots, 2 × fan tray slots, and 2 × power module slots;

S6520X-54QC–EI: 48 × 1/10G SFP+ ports, 2 × QSFP+ ports (40GE, can be split into four 10GE ports.), 2 × expansion slots, 2 × fan tray slots, and 2 × power module slots;

S6520X-30HC–EI: 24 × 1/10G SFP+ ports, 2 × QSFP28 ports (100G, can be split into four 25GE ports), 2 × expansion slots, 2 × fan tray slots, and 2 × power module slots;

S6520X-54HC–EI: 48 × 1/10G SFP+ ports, 2 × QSFP28 ports (100G, can be split into four 25GE ports), 2 × expansion slots, 2 × fan tray slots, and 2 × power module slots;

S6520X-30HF–EI: 24 × 1/10G SFP+ ports, 6 × QSFP28 ports, 3 × fan tray slots, and 2 × power module slots;

S6520X-54HF–EI: 48 × 1/10G SFP+ ports, 6 × QSFP28 ports, 3 × fan tray slots, and 2 × power module slots;

S6520X-54HC-UPWR-EI: 24 × 100M/1G/2.5G/5G/10G Base-T PoE++ ports, 4 × QSFP28 ports, 2 kinds of expansion slots (1 large slot in front, 1 normal slot in rear), 2 × fan tray slots, and 2 × power module slots.

Open Application Architecture

In H3C open application architecture (OAA), the switch can accommodate high-performance OAP modules to offer dedicated services such as firewall, IPS, or load balancing in addition to conventional forwarding services. By installing OAP modules, the customers can use the switch as a multiservice device without having to buy separate service appliances, such as a firewall device.

High-Density 10GE Forwarding

H3C S6520X-EI series switches offer high-density 10GE forwarding and can expand 10GE ports flexibly. It provides 48/24*10/1GE autosensing SFP+ ports, six QSFP28 ports or two QSFP28 or QSFP+ ports onboard, and two expansion slots that support up to 11 kinds of modules range from GE to 10GE, 25GE, 40GE,100GE and Multigiga ports. Using a QSFP+ to SFP+ splitter cable, you can split a QSFP+ port into four line-rate 10GE SFP+ ports. Max 72*10GE supported on one single switch.

Embedded Access Controller

H3C S6520X-EI series switches implement the WLAN function by installing an AC feature pack on the main control unit, thereby implementing both the wired function and the WLAN function on a single device. Embedded AC is a low-cost WLAN solution, save overall investment, improve forwarding capacity, realized a true unified wired and wireless solution in Campus. Max256 AP supported on one single switches.

H3C Intelligent Resilient Framework 2 (IRF2)

H3C Intelligent Resilient Framework 2 (IRF 2) virtualizes multiple S6520X-EI switches into one virtual switch and provides the following benefits:

Scalability: IRF 2 allows you to add devices to the IRF 2 system easily. It provides a single point of management, enables switch plug-and-play, and supports software auto-update for software synchronization from the master to the new member devices. It brings business agility with lower total cost of ownership by allowing new switches to be added to the fabric without network topology change as business grows.

High availability: The H3C proprietary routing hot backup technology ensures redundancy and backup of all information on the control and data planes and non-stop Layer 3 data forwarding in an IRF 2 fabric. It also eliminates single point of failure and ensures service continuity.

Redundancy and load balancing: The distributed link aggregation technology supports load sharing and mutual backup among multiple uplinks, which enhances the network redundancy and improves link resources usage.

Flexibility and resiliency: The switch use standard GE ports instead of specialized ports for IRF links between IRF member devices. This allows customers to assign bandwidth as needed between uplink, downlink, and IRF system connections. In addition, an S6520X-HI IRF fabric can span a rack, multiple racks, or multiple campuses.

Hardware Specifications

Item	S6520X-30HC-EI	S6520X-30QC-EI	S6520X-54HC-EI	S6520X-54QC-EI	S6520X-54HF-EI	S6520X-30HF-EI	S6520X-54HC-UPWR-EI
Port switching capacity	1200Gbps	960Gbps	2160Gbps	1440Gbps	2160Gbps	1680Gbps	2160Gbps
Packet forwarding rate	705Mpps	705Mpps	1050Mpps	1050Mpps	600Mpps	600Mpps	1050Mpps
Box Switching Capacity	2.56Tbps
Dimensions (H × W × D)	43.6 × 440 × 360 mm						44 × 440 × 460 mm
Weight	≤7.4KG	≤7KG	≤ 7.6KG	≤7.2KG	≤6KG	≤5.5KG	≤9.6 KG
CPU	Dual Core, 1.6GHz						4 Core, 2.0GHz
SDRAM	2GB	2GB	2GB	2GB	4GB	4GB	4GB
Flash	1GB	1GB	1GB	1GB	1GB	1GB	1GB
Packet Buffer	10M
Console ports	1
Management Ethernet ports	1
USB ports	1
1G/2.5G/5G/10G Base-T Multi-giga	-	-	-	-	-	-	24+24(optional)
SFP+	24	24	48	48	48	24	24(optional)
QSFP+	-	2	-	2	-	-	-
QSFP28	2	-	2	-	6	6	4
Expansion slots	2				-		2
Expansion modules	2-Port 10G SFP+ Ethernet Optical Interface Module 4-Port 10G SFP+ Ethernet Optical Interface Module 8-Port 10G SFP Plus Interface Card 8-Port 10G SFP+ with MACSec Interface Module 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module 2-port 25GE SFP28 interface module 2-port 40GE QSFP+ interface module 8-port 25GE SFP28 interface module (for S6520X-54HC-EI) 2-port 100GE QSFP28 interface module (for S6520X-54HC-EI)				N/A		Front Slot: 2410G/1G SFP+ ports module 24100M/1G/2.5G/5G/10G Base-T PoE++ Ports module Rear Slot: as shown in “Removable Components Matrix“
Input voltage range	AC power supply: Rated voltage range: 100 to 240 VAC @ 50/60 Hz Max voltage range: 90 to 290 VAC @ 47to 63 Hz High voltage input: 240V DC DC power supply: Rated voltage range: –48 to–60VDC Max voltage range: –36 to–72VDC				AC power supply: Rated voltage range: 100 to 240 VAC @ 50/60 Hz Max voltage range: 90 to 290 VAC @ 47to 63 Hz High voltage input: 240V DC DC power supply: Rated voltage range: –48 to–60VDC Max voltage range: –36 to–72VDC		AC power supply: Rated Voltage Range: 100 to 240 VAC @ 50/60 Hz Max voltage range: 90 to 290 VAC @ 47to 63 Hz
80 PLUS (80 PLUS Certified)	-				-		Y 80PLUSPlatinum
Fan trays	2 hot swappable fan trays, automatic multi-level adjustable speed, and invertible airflow				3 hot swappable fan trays, automatic multi-level adjustable speed, and invertible airflow		2 hot swappable fan trays, automatic multi-level adjustable speed, and invertible airflow
Power Supply slots	2(Hot swappable)
Idle power consumption (30% of traffic load, tested according to ATIS standard)	Single AC: 38W Dual AC: 43W	Single AC: 38W Dual AC: 43W	Single AC: 44W Dual AC: 49W	Single AC: 39W Dual AC: 44W	Single AC: 29W Dual AC: 36W	Single AC: 29W Dual AC: 35W	Host+SFP module: Single AC:74W Dual AC: 89W Host+Ethernet module: Single AC:69W Dual AC: 82W
Max. power Consumption (100% throughput, full speed of fans)	Single AC: 197W Dual AC: 200W	Single AC: 179W Dual AC: 183W	Single AC: 249W Dual AC: 251W	Single AC: 231W Dual AC: 234W	Single AC: 163W Dual AC: 162W	Single AC: 131W Dual AC: 134W	Host+SFP module Single AC:1580W Dual AC: 2487W Host+Ethernet module: Single AC:1595W Dual AC: 3061W
Operating Temperature	0℃ to 45℃ (32℉to 113℉) -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m.
Storage Temperature	-40℃ to 70℃(-40℉ to 158℉)
Operating & storage humidity	5% RH to 95% RH, non-condensing
MTBF(Year)	63.4	62.8	60.8	60.2	60.8	63.4	61.7
MTTR(Hour)	1	1	1	1	1	1	1
