Intelligent H3C S5130S-EI Gigabit Ethernet Switch PoE+ Support 10GE Uplinks

Brand Name:	H3C
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	,T/T
Supply Ability:	Up to 45 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

H3C S5130S-EI Series Enhanc...et.pdf

Type:

H3C S5130S-EI Switch

MAC Address Entries:

16K

VLAN Table:

4096 (VLAN IDs 0 And 4095 Are Reserved)

Active VLAN:

4094

Link Group Num:

124

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Supply Ability:

Up to 45 days

Highlight:

10GE Uplinks Gigabit Ethernet Switch

PoE+ Support Gigabit Ethernet Switch

H3C S5130S-EI switch

Product Description

The H3C S5130S-EI switch is a gigabit Ethernet switch independently developed by H3C Technologies Co., Ltd. (hereinafter referred to as H3C). It is an intelligent manageable switch designed for network environments requiring high performance, high port density and easy installation.

The H3C S5130S-EI series Ethernet switches are equipped with 10/100/1000Base-T auto-sensing Ethernet ports, SFP optical ports and 10G SFP+ optical ports. In enterprise networks, they can serve as access devices to deliver gigabit connectivity to the desktop. In metropolitan area networks or for industry users, they can provide gigabit access to end users or aggregate low-end switches downwards, and converge to high-capacity Layer 3 switches upwards via gigabit/10-gigabit optical fibers or link aggregation.

The H3C S5130S-EI series Ethernet switches support the innovative IRF (Intelligent Resilient Framework) technology. Users can connect up to 9 S5130EI switches to form a single logical entity, thus building a new intelligent network with high reliability, easy scalability and manageability.

The H3C S5130S-EI series Ethernet switches include the following models:

S5130S-10P-EI L2 Ethernet Switch with 8*10/100/1000BASE-T Ports and 2*1000BASE-X SFP Ports,(AC)
S5130S-20P-EI L2 Ethernet Switch with 16*10/100/1000BASE-T Ports and 4*1000BASE-X SFP Ports,(AC)
S5130S-28P-EI L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*1000BASE-X SFP Ports,(AC)
S5130S-52P-EI L2 Ethernet Switch with 48*10/100/1000BASE-T Ports and 4*1000BASE-X SFP Ports,(AC)

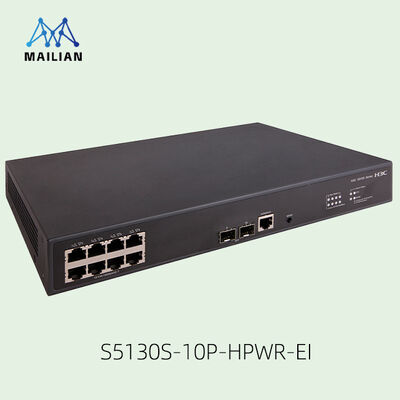

S5130S-10P-HPWR-EI L2 Ethernet Switch with 8*10/100/1000BASE-T PoE+ Ports(AC 125W), and 2*1000BASE-X SFP Ports,(AC)
S5130S-20P-PWR-EI L2 Ethernet Switch with 16*10/100/1000BASE-T PoE+ Ports(AC 185W) and 4*1000BASE-X SFP Ports,(AC)
S5130S-28P-PWR-EI L2 Ethernet Switch with 24*10/100/1000BASE-T PoE+ Ports(AC 185W) and 4*1000BASE-X Ports,(AC)
S5130S-28P-HPWR-EI-AC L2 Ethernet Switch with 24*10/100/1000BASE-T PoE+ Ports (AC 370W), 4*100/1000BASE-X SFP Ports, and 4*GE Combo Ports,(AC)
S5130S-52P-PWR-EI-AC L2 Ethernet Switch with 48*10/100/1000BASE-T PoE+ Ports (AC 370W) and 4*1000BASE-X SFP Ports,(AC)
S5130S-28S-EI L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*1G/10G BASE-X SFP Plus Ports,(AC)
S5130S-52S-EI L2 Ethernet Switch with 48*10/100/1000BASE-T Ports and 4*1G/10G BASE-X SFP Plus Ports,(AC)
S5130S-16S-PWR-EI L2 Ethernet Switch with 12*10/100/1000Base-T PoE+ Ports,2*10/100/1000Base-T Ports and 2*1G/10GBase-X SFP Plus Ports,(AC)
S5130S-28S-PWR-EI L2 Ethernet Switch with 24*10/100/1000BASE-T PoE+ Ports(AC 185W) and 4*1G/10G BASE-X SFP Plus Ports,(AC)
S5130S-28S-HPWR-EI-AC L2 Ethernet Switch with 24*10/100/1000BASE-T PoE+ Ports (AC 370W), 4*100/1000BASE-X SFP Combo Ports, and 4*1G/10G BASE-X SFP Plus Ports,(AC)
S5130S-52S-PWR-EI-AC L2 Ethernet Switch with 48*10/100/1000BASE-T PoE+ Ports (AC 370W) and 4*1G/10G BASE-X SFP Plus Ports,(AC)
S5130S-28ST-EI L2 Ethernet Switch with 24*10/100/1000Base-T Ports and 2*10G BASE-X SFP+ Ports and 2*1/2.5/5/10G BASE-T Ports,(AC)
S5130S-52ST-EI L2 Ethernet Switch with 48*10/100/1000Base-T Ports and 2*10G BASE-X SFP+ Ports and 2*1/2.5/5/10G BASE-T Ports,(AC)
S5130S-28ST-PWR-EI L2 Ethernet Switch with 24*10/100/1000Base-T Ports and 2*10G BASE-X SFP+ Ports and 2*1/2.5/5/10G BASE-T Ports,(PoE+,AC)

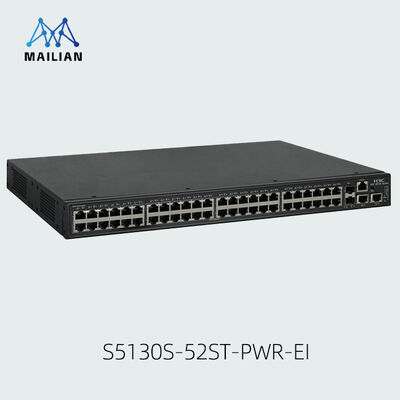

S5130S-52ST-PWR-EI L2 Ethernet Switch with 48*10/100/1000Base-T Ports and 2*10G BASE-X SFP+ Ports and 2*1/2.5/5/10G BASE-T Ports,(PoE+,AC)
S5130S-28F-EI L2 Ethernet Switch with 24*100/1000Base-X Ports(Including 8*SFP Combo Ports) and 8*10/100/1000Base-T Combo Ports and 4*1G/10GBase-X SFP Plus Ports,Without Power Supplies
S5130S-52F-EI L2 Ethernet Switch with 48*100/1000 BASE-X SFP Ports, 2*GE Combo Ports, and 4*1G/10G BASE-X SFP Plus Ports
S5130S-28PS-EI L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 8*SFP Combo Ports and 4*10G BASE-X SFP+ Ports,(AC/DC)
S5130S-12TP-EI L2 Ethernet Switch with 8*10/100/1000BASE-T Ports,2*GE Combo Ports and 4*1000BASE-X SFP Ports,(AC)
S5130S-28TP-EI L2 Ethernet Switch with 24*10/100/1000Base-T Ports and 2*GE Combo Ports and 2*100/1000Base-X SFP Combo Ports and 2*1000Base-X SFP Ports,(AC)

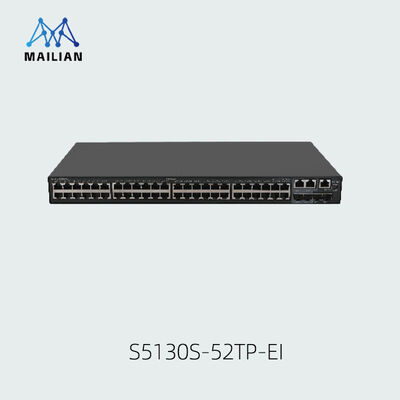

S5130S-52TP-EI L2 Ethernet Switch with 48*10/100/1000Base-T Ports and 2*GE Combo Ports and 2*100/1000Base-X SFP Combo Ports and 2*1000Base-X SFP Ports,(AC)
S5130S-12TP-HPWR-EI L2 Ethernet Switch with 8*10/100/1000BASE-T PoE+ Ports(AC 125W), 2*GE Combo Ports and 4*1000BASE-X SFP Ports,(AC)
S5130S-10MS-UPWR-EI L2 Ethernet Switch with 8*1G/2.5GBase-T(UPoE) Ports and 2*1G/10GBase-X SFP Plus Ports,(AC/DC)
S5130S-16S-UPWR-EI-Q L2 Ethernet Switch with 12*10/100/1000Base-T PoE++ Ports,2*10/100/1000Base-T Ports and 2*1G/10G Base-X SFP Plus Ports,(AC)
S5130S-28S-UPWR-EI-Q L2 Ethernet Switch with 8*10/100/1000BASE-T PoE++ Ports,16*10/100/1000BASE-T PoE+ Ports and 4*1G/10G BASE-X SFP Plus Ports,(AC)

Performance Specification

Entries	S5130S-EI Series Switches
MAC address entries	16K
VLAN table	4096 (VLAN IDs 0 and 4095 are reserved)
Active VLAN	4094
VLAN interface	32*
IPv4 routing entries	1024
IPv4 ARP entries	1024
IPv4 ACL entries	512
IPv4 multicast L2 entries	1000
IPv6 unicast routing entries	240
QOS forward queues	8
IPv6 ACL entries	512
IPv6 ND entries	240
Jumbo frame length	10240
MAX num in one link group	8
Link group num	124

Hardware Specifications

Features	S5130S-10P-EI	S5130S-20P-EI	S5130S-28P-EI	S5130S-52P-EI
Port Switching capacity	20Gbps	40Gbps	56Gbps	104Gbps
Forwarding capacity	15Mpps	30Mpps	42Mpps	78Mpps
Box Switching capacity	336Gbps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Latency (64byte/µs)	GE: < 5µs
Dimensions(W* D*H)	26616143.6 mm	33023043.6 mm	44016043.6 mm	44023043.6 mm
Weight	≤1.5kg	≤2kg	≤2.5kg	≤3.5kg
10/100/1000 Base-T port	8	16	24	48
SFP Port	2	4	4	4
Maximum Stacking Bandwidth	16Gbps	16Gbps	16Gbps	16Gbps
Maximum stacking Num	9	9	9	9
Input Voltage	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz
Power Consumption	MIN: AC: 7W MAX: AC: 12W	MIN: AC: 9W MAX: AC: 19W	MIN: AC:9W MAX: AC:23W	MIN: AC:18W MAX: AC:41W
Fan NUM	Fanless	Fanless	Fanless	1
MTBF(Year)	168.61	136.24	150.86	115.68
MTTR(Hour)	1	1	1	1
Operating Temperature	-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage Temperature	-40℃ ~ 70℃
Operating & Storage Relative Humidity	5% RH to 95% RH, non-condensing

Hardware Specifications (continued)

Features	S5130S-10P-HPWR-EI	S5130S-20P-PWR-EI	S5130S-28P-PWR-EI	S5130S-28P-HPWR-EI-AC	S5130S-52P-PWR-EI-AC
Port Switching Capacity	20Gbps	40Gbps	56Gbps	56Gbps	104Gbps
Forwarding Capacity	15Mpps	30Mpps	42Mpps	42Mpps	78Mpps
Box Switching Capacity	336Gbps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Latency (64byte/µs)	GE: < 5µs
Dimensions(W* D*H)	33023043.6 mm	33023043.6 mm	44026043.6 mm	44026043.6 mm	44040043.6 mm
Weight	≤2.5kg	≤3kg	≤4kg	≤ 4.5kg	≤6kg
10/100/1000 Base-T port	8	16	24	24	48
SFP Port	2	4	4	4 (4*Base-T combo)	4
Maximum Stacking Bandwidth	16Gbps	16Gbps	16Gbps	16Gbps	16Gbps
Maximum Stacking Num	9	9	9	9	9
Input Voltage	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz
Power Consumption(full configuration)	MIN: AC: 13W MAX: AC: 153W(PoE 125W)	MIN: AC: 18W MAX: AC: 223W(PoE 185W)	MIN: AC: 19W MAX: AC: 230W(PoE 170W)	MIN: AC: 15W MAX: AC: 443W(PoE 370W)	MIN: AC: 36W MAX: AC: 467W(PoE 370W)
Fan NUM	Fanless	2	2	3	1
MTBF(Year)	104.12	86.01	87.06	52.81	50.19
MTTR(Hour)	1	1	1	1	1
Operating Temperature	-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage Temperature	-40℃ ~ 70℃
Operating & Storage Relative Humidity	5% RH to 95% RH, non-condensing

Hardware Specifications (continued)

Features	S5130S-28S-EI	S5130S-52S-EI
Port Switching Capacity	128Gbps	176Gbps
Forwarding capacity	96Mpps	131Mpps
Box Switching Capacity	336Gbps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Latency (64byte/µs)	GE: < 5µs 10GE < 3µs
Dimensions(W* D*H)	44016043.6 mm	44023043.6 mm
Weight	≤2.5kg	≤3.5kg
10/100/1000 Base-T port	24	48
SFP+ port	4	4
Maximum Stacking Bandwidth	80Gbps	80Gbps
Maximum Stacking num	9	9
Input Voltage	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz
Power consumption(full configuration)	MIN: AC:9W MAX: AC:23W	MIN: AC:18W MAX: AC:41W
Fan NUM	Fanless	1
MTBF(Year)	131.97	153.41
MTTR(Hour)	1	1
Operating Temperature	-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage Temperature	-40℃ ~ 70℃
Operating & Storage Relative Humidity	5% RH to 95% RH, non-condensing

Hardware Specifications (continued)

Features	S5130S-16S-PWR-EI	S5130S-28S-PWR-EI	S5130S-28S-HPWR-EI-AC	S5130S-52S-PWR-EI-AC
Port Switching Capacity	68Gbps	128Gbps	128Gbps	176Gbps
Forwarding Capacity	51Mpps	96Mpps	96Mpps	131Mpps
Box Switching Capacity	336Gbps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Latency (64byte/µs)	GE: < 5µs 10GE < 3µs
Dimensions(W* D*H)	30026043.6 mm	44026043.6 mm	44026043.6 mm	44040043.6 mm
Weight	≤ 2.5kg	≤4kg	≤ 4.5kg	≤6kg
10/100/1000 Base-T Port	14	24	24 (4*SFP combo)	48
SFP+ Port	2	4	4	4
Maximum Stacking Bandwidth	16Gbps	80Gbps	80Gbps	80Gbps
Maximum Stacking Num	9	9	9	9
Input Voltage	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz
Power Consumption(full configuration)	MIN: AC: 14W MAX: AC: 157W(PoE 125W)	MIN: AC: 20W MAX: AC: 235W(PoE 170W)	MIN: AC: 16W MAX: AC: 445W(PoE 370W)	MIN: AC: 36W MAX: AC: 467W(PoE 370W)
Fan NUM	Fanless	2	3	1
MTBF(Year)	61.6	87.06	85.69	50.19
MTTR(Hour)	1	1	1	1
Operating Temperature	-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage Temperature	-40℃ ~ 70℃
Operating & Storage Relative Humidity	5% RH to 95% RH, non-condensing

Hardware Specifications (continued)

Features	S5130S-28ST-EI	S5130S-52ST-EI	S5130S-28ST-PWR-EI	S5130S-52ST-PWR-EI
Port Switching Capacity	128Gbps	176Gbps	128Gbps	176Gbps
Forwarding Capacity	96Mpps	132Mpps	96Mpps	132Mpps
Box Switching Capacity	336Gbps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Latency (64byte/µs)	GE: < 5µs 10GE < 3µs
Dimensions(W* D*H)	44016043.6 mm	44026043.6 mm	44032043.6 mm	44032043.6 mm
Weight	≤2.5kg	≤3.5kg	≤ 4.5kg	≤6kg
10/100/1000 Base-T port	24	48	24	48
SFP+ port	2	2	2	2
Multigiga port	2*1/2.5/5/10G BASE-T	2*1/2.5/5/10G BASE-T	2*1/2.5/5/10G BASE-T	2*1/2.5/5/10G BASE-T
Maximum Stacking Bandwidth	80Gbps	80Gbps	80Gbps	80Gbps
Maximum Stacking num	9	9	9	9
Input Voltage	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz
Power Consumption(full configuration)	MIN: AC:14.5W MAX: AC:33W	MIN: AC:24.5W MAX: AC:43W	MIN: AC: 24.5W MAX: AC: 420W(PoE 370W)	MIN: AC: 34.5W MAX: AC: 430W(PoE 370W)
Fan NUM	2	2	2	2
MTBF(Year)	131.97	87.06	97.74	85.69
MTTR(Hour)	1	1	1	1
Operating Temperature	-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage Temperature	-40℃ ~ 70℃
Operating & storage Relative humidity	5% RH to 95% RH, non-condensing

Hardware Specifications (continued)

Features	S5130S-28F-EI	S5130S-52F-EI
Port Switching Capacity	128Gbps	176Gbps
Forwarding Capacity	96Mpps	131Mpps
Box Switching Capacity	336Gbps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Latency (64byte/µs)	GE: < 5µs 10GE < 3µs
Dimensions(W* D*H)	44036043.6 mm	44036043.6 mm
Weight	≤6kg	≤6.5kg
SFP port	24 (8*BASE-T combo)	48 (2*BASE-T combo)
SFP+ port	4	4
Maximum Stacking Bandwidth	80Gbps	80Gbps
Maximum stacking num	9	9
Input Voltage	AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -54V～-57V DC	AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -54V～-57V DC
Power Consumption(full configuration)	MIN: Single PSR75-12A: 15 W Dual PSR75-12A: 17 W Single PSR150-A1: 18 W Single PSR150-D1: 18 W Dual PSR150-A1: 23 W Dual PSR150-D1: 22 W MAX: Single PSR75-12A: 26 W Dual PSR75-12A: 29 W Single PSR150-A1: 27 W Single PSR150-D1: 27 W Dual PSR150-A1: 32 W Dual PSR150-D1: 33 W	MIN: Single PSR75-12A: 45 W Dual PSR75-12A: 48 W Single PSR150-A1: 48 W Single PSR150-D1: 51 W Dual PSR150-A1: 55 W Dual PSR150-D1: 57 W MAX: Single PSR75-12A: 69 W Dual PSR75-12A: 72 W Single PSR150-A1: 74 W Single PSR150-D1: 84 W Dual PSR150-A1: 95 W Dual PSR150-D1: 95 W
Fan NUM	2	2
MTBF(Year)	77.58	125.56
MTTR(Hour)	1	1
Operating Temperature	-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage Temperature	-40℃ ~ 70℃
Operating & Storage Relative Humidity	5% RH to 95% RH, non-condensing

Hardware Specifications (continued)

Features	S5130S-28PS-EI	S5130S-12TP-EI	S5130S-28TP-EI	S5130S-52TP-EI	S5130S-12TP-HPWR-EI	S5130S-10MS-UPWR-EI
Port Switching Capacity	128Gbps	24Gbps	56Gbps	104Gbps	24Gbps	80Gbps
Forwarding Capacity	96Mpps	18Mpps	42Mpps	78Mpps	18Mpps	60Mpps
Box Switching Capacity	336Gbps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Latency (64byte/µs)	GE: < 5µs 10GE < 3µs
Dimensions(W* D*H)	44036043.6 mm	26616143.6 mm	44016043.6 mm	44023043.6 mm	33023043.6 mm	30026043.6 mm
Weight	≤5.5kg	≤1.5kg	≤2kg	≤3.5kg	≤3kg	≤3.5kg
10/100/1000 Base-T port	24 (8*SFP combo)	10 (2*SFP combo)	26 (2*SFP combo)	50 (2*SFP combo)	10 (2*SFP combo)	/
SFP Port	/	2	2	2	2	/
SFP+ Port	4	/	/	/	/	2
Multigiga Port	/	/	/	/	/	8*1G/2.5GBASE-T (UPoE)
Maximum Stacking Bandwidth	80Gbps	16Gbps	16Gbps	16Gbps	16Gbps	16Gbps
Maximum Stacking num	9	9	9	9	9	9
Input Voltage	AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -54V～-57V DC	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -54V～-57V DC
Power Consumption(full configuration)	MIN: AC: 14.5W DC: 14W MAX: AC: 33W DC: 32W	MIN: AC: 8W MAX: AC: 14W	MIN: AC:10W MAX: AC:24W	MIN: AC:20W MAX: AC:42W	MIN: AC: 14W MAX: AC: 156W(PoE 125W)	Min:AC:22.2 DC:17.38 MAX:AC:447(poe 370) DC:794.2(poe 740)
Fan NUM	1	Fanless	Fanless	1	Fanless	3
MTBF(Year)	131.97	140.82	97.94	58.96	117.08	52.27
MTTR(Hour)	1	1	1	1	1	1
Operating Temperature	-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage Temperature	-40℃ ~ 70℃
Operating & Storage Relative Humidity	5% RH to 95% RH, non-condensing

*Fanless indicates a noise level below 20dB.

Hardware Specifications (continued)

Features	S5130S-16S-UPWR-EI-Q	S5130S-28S-UPWR-EI-Q
Port Switching Capacity	68Gbps	128Gbps
Forwarding Capacity	50.6Mpps	95.2Mpps
Box Switching Capacity	336Gbps	336Gbps
FLASH/RAM	256MB/512MB	256MB/512MB
Memory Capacity of Packet Buffer(bytes)	1.5MB	1.5MB
Latency (64byte/µs)	GE: < 5µs 10GE < 3µs	GE: < 5µs 10GE < 3µs
Dimensions(W* D*H)	300 * 260* 43.6 mm	440 * 422 *43.6 mm
Weight	≤3.5kg	≤6kg
10/100/1000 Base-T Port	14	24
SFP+ Port	2	4
Maximum Stacking Bandwidth	16Gbps	80Gbps
Maximum Stacking Num	9	9
Input Voltage	AC: Rated voltage range: 100V~240V AC, 50/60Hz Max voltage: 90 VAC to 264 VAC @ 47 to 63 Hz	AC: Rated voltage range: 100V~240V AC, 50/60Hz Max voltage: 90 VAC to 264 VAC @ 47 to 63 Hz
Power Consumption(full configuration)	MIN: 12W MAX: 402W	MIN: 12W MAX:400W
Fan NUM(fiexd)	-	-
MTBF(Year)	118.784	84.211
MTTR(Hour)	1	1
NOISE(ISO7779)	0dB	0dB
Operating Temperature	-5℃ ~ +45℃
Storage Temperature	-40℃ ~ 70℃
Operating & Storage Relative Humidity	5% RH to 95% RH, non-condensing

Performance Specification

Entries	S5130S-EI Series Switches
MAC address entries	16K
VLAN table	4096 (VLAN IDs 0 and 4095 are reserved)
Active VLAN	4094
VLAN interface	32*
IPv4 routing entries	1024
IPv4 ARP entries	1024
IPv4 ACL entries	512
IPv4 multicast L2 entries	1000
IPv6 unicast routing entries	240
QOS forward queues	8
IPv6 ACL entries	512
IPv6 ND entries	240
Jumbo frame length	10240
MAX num in one link group	8
Link group num	124

PoE Power Capacity

Product Name	Total PoE power capacity	PoE Ports Quantity
S5130S-10P-HPWR-EI	125W	15.4W (802.3af): 8 30W (802.3at): 4
S5130S-20P-PWR-EI	170W	15.4W (802.3af): 11 30W (802.3at): 5
S5130S-28P-PWR-EI	170W	15.4W (802.3af): 11 30W (802.3at): 5
S5130S-28P-HPWR-EI-AC	370W	15.4W (802.3af): 24 30W (802.3at): 12
S5130S-52P-PWR-EI-AC	370W	15.4W (802.3af): 24 30W (802.3at): 12
S5130S-16S-PWR-EI	120W	15.4W (802.3af): 8 30W (802.3at): 4
S5130S-28S-PWR-EI	170W	15.4W (802.3af): 11 30W (802.3at): 5
S5130S-28S-HPWR-EI-AC	370W	15.4W (802.3af): 24 30W (802.3at): 12
S5130S-52S-PWR-EI-AC	370W	15.4W (802.3af): 24 30W (802.3at): 12
S5130S-28ST-PWR-EI	370W	15.4W (802.3af): 24 30W (802.3at): 12
S5130S-52ST-PWR-EI	370W	15.4W (802.3af): 24 30W (802.3at): 12
S5130S-12TP-HPWR-EI	125W	15.4W (802.3af): 8 30W (802.3at): 4
S5130S-10MS-UPWR-EI	AC: 370	15.4W (802.3af): 8 30W (802.3at): 8 60W (802.3bt): 6 90W (802.3bt): 4
S5130S-10MS-UPWR-EI	DC: 740	15.4W (802.3af): 8 30W (802.3at): 8 60W (802.3bt): 8 90W (802.3bt): 8
S5130S-16S-UPWR-EI-Q	370W	15.4W (802.3af): 14 30W (802.3at): 12 60W (802.3bt): 6 90W (802.3bt): 4
S5130S-28S-UPWR-EI-Q	370W	15.4W (802.3af): 24 30W (802.3at): 12 60W (802.3bt): 6 90W (802.3bt): 4

Tags:

Network Switch

Network Rack Server

Network Router

Wireless Access Point

Enterprise Storage

Network Storage

Network Firewall

Optical Modules

Network Switch

Network Rack Server

Network Router

Wireless Access Point

Enterprise Storage

Network Storage

Network Firewall

Optical Modules

products details

Network Switch

Network Rack Server

Network Router

Wireless Access Point

Enterprise Storage

Network Storage

Network Firewall

Optical Modules

Intelligent H3C S5130S-EI Gigabit Ethernet Switch PoE+ Support 10GE Uplinks

10GE Uplinks Gigabit Ethernet Switch

PoE+ Support Gigabit Ethernet Switch

H3C S5130S-EI switch

h3c switch

network poe switch

network ethernet switch

H3C S6520X-SI Series Multi Gigabit Network Switch 10GE Access Switching Solution

Industrial Grade H3C S5580X-HI Series Network Switch Layer 3 Gigabit Ethernet Switch

Secure H3C S1850V2-X Series Network Switch 10G Uplink Access Network Switch

H3C S1850V2-EI Series Gigabit Network Switch Access Switches For Government SMEs

3 Layer H3C S5590-EI Series PoE Gigabit Ethernet Switch High Power For Campus Network
