H3C IE4300U Network Ethernet Switch Industrial Grade Fan Less Natural Cooling Design

Detail Information

Product Description

Detail Information

Operating Temperature:

-40℃~80℃

Ethernet Switching:

Store-and-Forward

DHCP:

DHCP Client, DHCP Snooping

Total PoE Power Capacity:

100W

Type:

IE4300U-10P-PWR

Highlight:

H3C IE4300U Network Ethernet Switch

Industrial Grade Network H3c Switch

Natural Cooling Design Ethernet Switch

Product Description

H3C IE4300U Series Industrial Ethernet Switches

High-reliability industrial-grade components designed for harsh environments with wide operating temperature range compliance

Exceptional Quality, Solid as a Rock

The IE4300 industrial switch series represents the latest Ethernet switches developed with industrial compliance and wide operating temperature capabilities. All models utilize industrial-grade components, delivering significantly higher reliability than commercial counterparts under identical conditions.

Robust Environmental Performance

Fan-less natural cooling design with embedded heatsink and thermal adhesive for consistent performance in harsh environments
Operating temperature range: -40°C to 80°C
Shock and vibration resistant with dust proof IP41 compliance
High-level electromagnetic shielding capable of withstanding electrostatic discharge, surge/burst/electrical fast transients, pulse magnetic field, and radiated electrical field

Available Models

H3C IE4300U-5E: 5 * 10/100/1000 BASE-T Ports

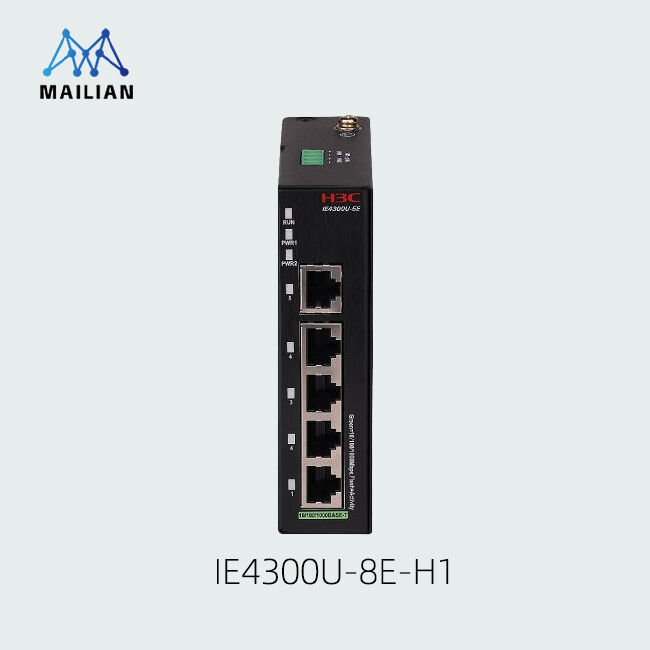

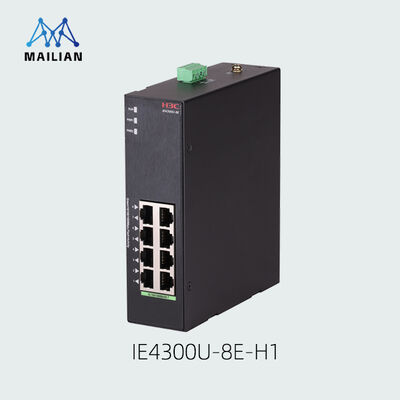

H3C IE4300U-8E-H1: 8 * 10/100/1000 BASE-T Ports

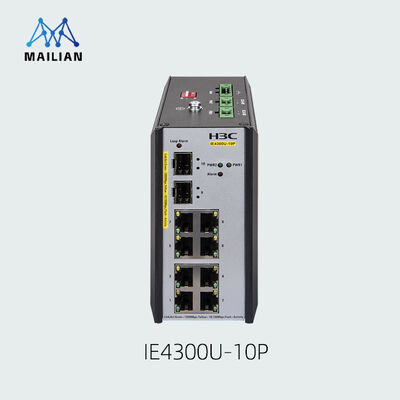

H3C IE4300U-10P: 8 * 10/100/1000 BASE-T Ports and 2 * 100/1000BASE-X SFP Ports
H3C IE4300U-10P-PWR: 8 * 10/100/1000 BASE-T PoE+ Ports and 2 * 100/1000BASE-X SFP Ports

Smart Management Features

IE4300U industrial switch series support Web management and Cloudnet management for comprehensive network control.

Enhanced PoE Power Capabilities

Supporting PoE+ power supply with up to 30W per port and total PoE budget of 100W, ensuring stable operation for various PoE-powered terminals.

Hardware Specifications

Feature	IE4300U-5E	IE4300U-8E-H1	IE4300U-10P-H1	IE4300U-10P-PWR
Switching Capacity	10Gbps	16Gbps	20Gbps	20Gbps
Forwarding Capacity	7.44Mpps	11.9Mpps	14.88Mpps	14.88Mpps
Dimensions (W * D * H)	30x100x120mm	44x131x150mm	44x131x150mm	44x131x150mm
Weight	≤0.36kg	≤0.57kg	≤0.62kg	≤0.65kg
10/100/1000 Base-T port	5	8	8	8
SFP port	-	-	2	2
Input Voltage	Dual backup redundancy: 12~48VDC (12~60VDC)	Dual backup redundancy: 12~48VDC (12~60VDC)	Dual backup redundancy: 12~48VDC (12~60VDC)	Dual backup redundancy: (12~60VDC) For Non-PoE 12~48V For PoE 48V~57V For PoE+ 52V~57V
Power Consumption	MIN: 0.9W MAX: 2.9W	MIN: 1.1W MAX: 3.4W	MIN: 1.5W MAX: 6.5W	MIN: 1.3W MAX: 106W (PoE: 100W)

Environmental Specifications

Operating Temperature: -40℃~80℃

Storage Temperature: -40℃~85℃

Operating Relative Humidity: 5～95%RH, non-condensing

Software Specifications

Feature	IE4300U switch series
Ethernet Switching	Store-and-Forward
Jumbo Frame	Support
VLAN	Port-based VLAN
DHCP	DHCP Client, DHCP Snooping
Security	Unicast Suppression, Multicast Suppression, Broadcast Suppression, MAC Black Hole
Management and maintenance	Web-based NMS, Cloudnet management

Performance Specification

Entries	IE4300U-5E	IE4300U-8E-H1, IE4300U-10P, IE4300U-10P-PWR
MAC address entries	2K	4K
Static Mac address	32	32
VLAN table	16	16
Jumbo frame length	10000	10000

PoE Power Capacity

Product Name	Total PoE power capacity	PoE Ports Quantity
IE4300U-10P-PWR	100W	15.4W (802.3af): 6 30W (802.3at): 3

Note: This content is applicable only to regions outside mainland China. H3C reserves the right to interpret the content.
