H3C WSG1840X Next-Gen Enterprise Gateway Wireless Controller with 64 built-in AP licenses, supports up to 128 APs, 4Gbps throughput, rich ports, fast roaming, WIDS/WIPS and multiple authentications.

Brand Name:	H3C
Model Number:	H3C WSG1840X
MOQ:	1
Price:	747$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Dimensions:

440 Mm * 165 Mm * 43.6 Mm

Weight:

1.8 Kg

Throughput:

4Gbps

Interfaces:

WAN 2*GE & LAN 4*GE & LAN 1*SFP+ & LAN 1*5GE & 1*USB & 1*Console

Operating Temperature:

0°C~45°C

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Product Description

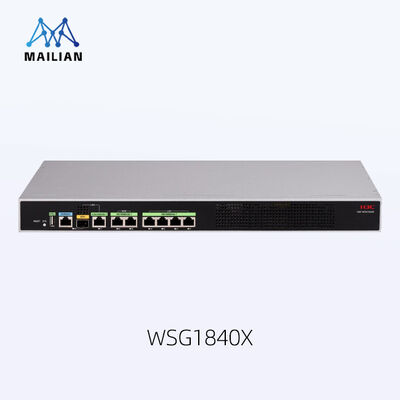

H3C WSG1840X Next-Gen Enterprise Gateway Wireless Controller

H3C WSG1840X is a gateway-type wireless controller (AC) independently developed by H3C Technology Co., Ltd. This next-generation enterprise-level wireless controller integrates fine user control management, perfect RF resource management, 7x24-hour wireless security control, Layer 2 and 3 fast roaming, flexible QoS control, IPv4 & IPv6 dual stack and other functions. Specially designed for the wireless network needs of branch offices and small campuses, it integrates gateway and AC functions, supporting WIPS, firewall, and other capabilities with the H3C Fit AP product series.

Hardware Specifications

Specification	WSG1840X
Dimensions (width × depth × height)	440 mm × 165 mm × 43.6 mm
Weight	1.8 kg
Throughput	4 Gbps
Interfaces	WAN 2×GE & LAN 4×GE & LAN 1×SFP+ & LAN 1×5GE & 1×USB & 1×Console
Power Supply	Built-in open-rack power supply
Operating Temperature	0°C ~ 45°C
Storage Temperature	-40°C ~ 70°C
Operating/Storage Humidity	5% ~ 95% (non-condensing)
MTBF	≥ 145 years

Software Specifications

Feature Category	Support Features	WSG1840X
Base Performance	Maximum managed APs / Default AP licenses	128 / 64
Wireless Capabilities	802.11 protocol cluster, SSIDs, User isolation	Yes
Roaming	Layer 2 & 3 roaming across APs	Yes
Security	WPA/WPA2/WPA3, WIPS, Multiple authentication methods	Yes
Management	WEB, SNMP, CLI, TELNET, FTP	Yes
Protocol Support	IPv4/IPv6 dual stack, Multicast, VPN	Yes

Key Features

Wi-Fi 7 Support: Manages traditional 802.11a/b/g/n/ac/ax APs and supports H3C Wi-Fi 7 (802.11be) APs
Flexible Data Forwarding: Supports centralized, distributed, and policy-based forwarding modes
Advanced Access Control: User Profile-based management with CAR and QoS policies
Gateway Functionality: Dual WAN port design with PPPoE, NAT, and dynamic/static IP support
Bonjour Gateway: Easy integration with Apple devices (printers, TVs, tablets)
Intelligent RF Management: Automatic channel switching and AP load balancing
Comprehensive Security: 7-layer mobile security detection/defense (WIDS/WIPS)
RealTime Spectrum Guard: 24/7 wireless environment monitoring and interference detection
Multiple Authentication: Supports 802.1x, MAC address, and Portal authentication
IPv6 Ready: Native IPv6 support with dual protocol stack
End-to-End QoS: Diff-Serv standard support with IPv6 QoS capabilities
Fast Roaming: Layer 2 & 3 roaming with switching time under 50ms

Enterprise Benefits

The WSG1840X wireless controller reduces equipment types and quantities required by enterprises during deployment. Its wide range of port types, including USB for peripheral connectivity, combined with comprehensive wireless management and security features, makes it an all-rounder solution for enterprise networking in branch offices and small campus environments.
