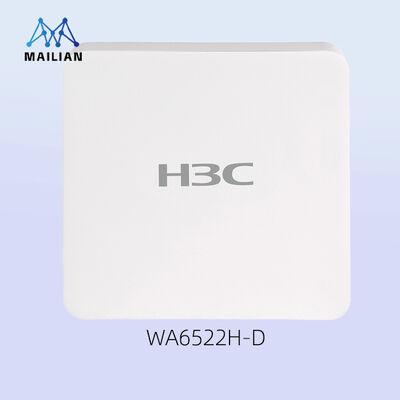

H3C WA6522H-D Dual-Band Four-Stream Wi-Fi 6 (802.11ax) Wallplate Wireless Access Point, 2.975Gbps Enterprise AP with Built-in Antennas, PoE & 86mm Panel Mount for Hotel/Hospital

Brand Name:	H3C
Model Number:	H3C WA6522H-D
MOQ:	1
Price:	65$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Dimensions:

86*86*44.5mm

Weight:

PoE Standard:

802.3af

Operating Frequency:

5.725GHz-5.850GHz (China); 2.4GHz-2.483GHz (China)

Max Data Rate:

2.975Gbps

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Product Description

H3C WA6522H-D Dual-Band Four-Stream Wi-Fi 6 (802.11ax) Wallplate Wireless Access Point

The H3C WA6522H-D is a Wi-Fi 6 (802.11ax) wireless access device featuring 2.975Gbps enterprise-grade performance with built-in antennas. Designed for PoE operation and 86mm panel mounting, it's ideal for hotel rooms, hospital wards, school dormitories, and other dense room environments where traditional AP deployment methods suffer from poor signal quality.

Key Features

Dual-band four-stream design with maximum access rate of 2.975Gbps
5GHz RF: 2 spatial streams with maximum negotiation rate of 2.4Gbps
2.4GHz RF: 2 spatial streams with maximum negotiation rate of 0.575Gbps
Flexible installation supporting various mounting methods
802.3af PoE power supply
Built-in intelligent antenna system

Hardware Specifications

Properties	WA6522H-D
Dimensions	86×86×44.5mm (antenna interface and accessories not included)
Weight	200g
Fixed Interface	UpLink port: 10/100/1000M electrical port×1, RJ-45 LAN port: 10/100/1000M electrical port×1, RJ-45
PoE	802.3af power supply
Built-in Antenna	Built-in intelligent antenna system
Operating Frequency Band	802.11ax/ac/n/a: 5.725GHz-5.850GHz (China); 5.47GHz～5.725GHz; 5.15GHz~5.35GHz (China) 802.11ax/b/g/n: 2.4GHz-2.483GHz (China)
Transmit Power	20dBm (actual transmit power varies according to national regulations)
Adjustable Power Granularity	1dBm
Operating Temperature	-10ºC～40ºC
Storage Temperature	-40ºC～70ºC
Power Consumption	≤12.95W
MTBF	>850,000 hours

Software Specifications

Properties	WA6522H-D
Product Positioning	Indoor panel type (5GHz 2×2 MIMO + 2.4GHz 2×2 MIMO)
Working Mode	Fit (Managed by AC control) Cloud (Fat) - Managed by cloud or works independently
Wi-Fi 6 Features	TWT, BSS Color, MU-MIMO, OFDMA, Only 11ax mode
Maximum Users	128 per RF (256 total device capacity)
Virtual APs	16 (5 per RF recommended in actual applications)
Security	TKIP, CCMP, WPA3, WAPI encryption 802.1x, MAC address, PSK, Portal authentication
Quality of Service	WMM, bandwidth management, load balancing, spectrum navigation
Management	AC centralized management, cloud simplified management, local web, Telnet, SSH

*The "Supported" option listed in the software specification sheet means that all AP modes are supported

Working Modes

Fit AP Mode

Supports Fit AP mode for management by wireless controllers with Comware system, enabling batch AP management in networking configurations.

Cloud AP Mode

Supports cloud-based solutions for wireless networking without hardware AC and authentication servers. Implements rich authentication functions including PPSK, PSK, Portal, SMS, and WeChat. Features simplified branch startup, hierarchical management, and intelligent dashboard capabilities.

Advanced Features

Intelligent Operation & Maintenance

Comprehensive visualization, measurement, and automatic optimization capabilities including data visibility for terminal onboarding/offline reasons, AP performance metrics, and network health evaluation systems.

Security Protection

Endpoint access security with 802.1x, PSK, MAC, PPPOE, Portal, WeChat, and SMS authentication. Wireless Intrusion Prevention System (WIPS) with rogue detection and intrusion prevention capabilities.

RF Resource Management

Real-time monitoring of channel utilization, interference, and environmental issues with automatic adjustment of operating channels, bandwidth, and power parameters for optimal RF performance.

Application Assurance

Wi-Fi 6 eXtreme Plus technology for intelligent application identification, roaming optimization, and priority traffic management to ensure smooth user experience for critical services.
