H3C WA6520S-D Dual-Band Four-Stream Wi-Fi 6 (802.11ax) Wireless Access Point, 2.975Gbps High-Speed Enterprise AP with BLE 5.1 & PoE Support

H3C WA6520S-D Dual-Band Four-Stream Wi-Fi 6 (802.11ax) Wireless Access Point, 2.975Gbps High-Speed Enterprise AP with BLE 5.1 & PoE Support

Brand Name: H3C
Model Number: H3C WA6520S-D
MOQ: 1
Price: 95$
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Document:
WA6520S-D.pdf
Dimensions:
130*130*36mm
Weight:
0.4KG
Ethernet Interface:
1 (10/100/1000M Port)
PoE Support:
802.3af
Operating Temperature:
-10ºC～55ºC
Packaging Details:
See the hardware specification sheet for details based on the specific model.
Product Description

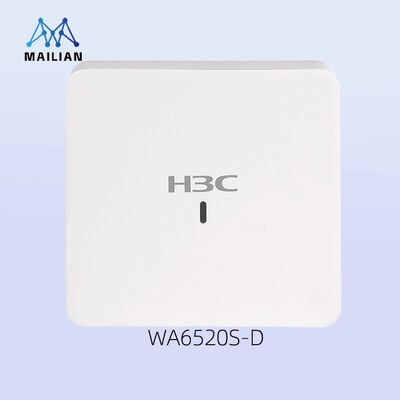

H3C WA6520S-D Dual-Band Four-Stream Wi-Fi 6 (802.11ax) Wireless Access Point
Product Overview

The H3C WA6520S-D is a Wi-Fi 6 (802.11ax) wireless access device independently developed by H3C Technology Co., Ltd. This dual-band four-stream access point delivers maximum speeds of 2.975Gbps, making it ideal for high-bandwidth, high-concurrency indoor environments.

Hardware Specifications
Property WA6520S-D
Dimensions 130*130*36mm
Weight 0.4kg
Ethernet Interface 1 (10/100/1000M port)
PoE Support 802.3af power delivery
Local Power Supply 54V DC
Console Port 1
Antenna System Built-in intelligent antenna system
IoT Module Built-in BLE 5.1
Operating Frequency 5GHz: 5.725-5.850GHz, 5.47-5.725GHz, 5.15-5.35GHz
2.4GHz: 2.4-2.483GHz
Transmit Power 23dBm (varies by national regulations)
Operating Temperature -10°C to 55°C
Power Consumption ≤12.4W
Software Specifications
Feature Category WA6520S-D
Wi-Fi 6 Support Maximum speed: 2.4Gbps + 0.575Gbps
Advanced Features TWT, BSS Color, MU-MIMO, OFDMA, 11ax-only mode
Maximum Users 256 total users (128 per RF)
Virtual APs 16 total services (8 per RF)
Security WEP, TKIP, CCMP, WPA3, WAPI encryption
802.1x, MAC, PSK, Portal authentication
Management AC centralized management, Cloud simplified management, Local web, Telnet, SSH, SNMP
All listed software features are supported across all AP modes.
Operating Modes

The WA6520S-D supports flexible mode switching to meet diverse deployment requirements:

  • Fit AP Mode: Managed by H3C wireless controllers for centralized batch management
  • Cloud AP Mode: Wireless networking without hardware AC, supporting rich authentication functions including PPSK, PSK, Portal, SMS, and WeChat
Key Technologies
  • OFDMA Technology: Simultaneous data transmission to multiple terminals using subcarriers
  • Spatial Reuse (BSS Coloring): Improved channel reuse in high-density deployments
  • TWT Technology: Scheduled terminal wake-up/hibernation for energy efficiency
  • Flexible Forwarding: Local data packet conversion to save bandwidth
  • IPv4/IPv6 Dual Stack: Full IPv6 support with automatic registration
  • Chinese SSID Support: Up to 16 Chinese characters in SSID names
Security Features
  • Wireless Intrusion Prevention System (WIPS) with rogue detection
  • Endpoint Admission Domination (EAD) for terminal security compliance
  • AP wired access control with 802.1x client authentication
  • CAPWAP tunnel encryption and DTLS security
  • User isolation and packet filtering capabilities
