H3C WX2550X-LI Next-Gen Enterprise Gateway Wireless Controller, supports up to 256 APs, dual-WAN, 10Gbps throughput and centralized Wi-Fi 6 management for enterprise networks.

Brand Name:	H3C
Model Number:	H3C WX2550X-LI
MOQ:	1
Price:	633$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Dimensions:

440 Mm * 250 Mm * 43.6 Mm

Weight:

3.3kg

Throughput:

10Gbps

Managed APs:

256 (Normal AP) / 512 (Distribution Panel AP And Terminator Split)

Operating Temperature:

0°C~45°C

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Product Description

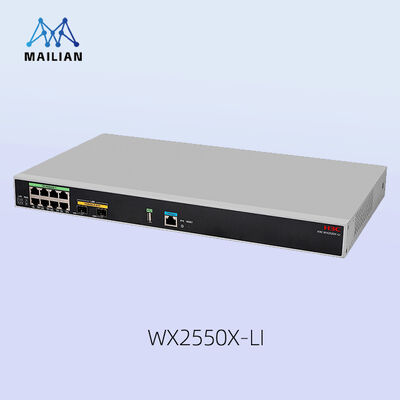

H3C WX2550X-LI Next-Gen Enterprise Gateway Wireless Controller

The H3C WX2550X-LI is a next-generation enterprise-level gateway-type wireless controller supporting up to 256 APs, dual-WAN connectivity, 10Gbps throughput, and centralized Wi-Fi 6 management for enterprise networks.

Product Overview

The WX2550X-LI wireless controller is specifically designed for the wireless network requirements of branches and small campuses. It integrates gateway and AC functions, and supports WIPS, firewall, and other capabilities when paired with H3C Fit AP product series, making it a comprehensive enterprise networking solution. With diverse port types including a built-in USB interface for enterprise peripheral connectivity, it reduces the number of devices required during network deployment, helping enterprises optimize investment.

Hardware Specifications

Specification	WX2550X-LI
Dimensions (W×D×H)	440 mm × 250 mm × 43.6 mm
Weight	3.3 kg
Throughput	10 Gbps
Interfaces	WAN: 2×GE LAN: 6×GE + 2×SFP+ 1×USB + 1×Console
Power Supply	Built-in dual power supplies
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating/Storage Humidity	5% to 95% (non-condensing)
Safety Specifications	FDA 21 CFR Subchapter J, GB 4943.1, UL 62368-1, CAN/CSA C22.2 No 62368-1, IEC 62368-1, EN 62368-1, AS/NZS 62368-1
EMC Compliance	CISPR 35:2016, EN 61000-3-2:2014, EN 61000-3-3:2013, ETSI EN 300 386 V1.6.1(2012-09), ETSI EN 300 386 V2.1.1(2016-07), EN 55032:2015+A1:2020, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, CISPR 32:2015+AMD1:2019, AS/NZS CISPR 32:2015+AMD1:2020, EN IEC 61000-3-2:2019, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61000-3-3:2013+A2:2021+AC:2022, ETSI EN 300 386 V2.2.1(2022-09), GB/T 9254.1-2021
MTBF	≥ 145 years

Software Specifications & Features

Feature Category	Supported Features	WX2550X-LI
Base Performance	Maximum managed APs, Default AP count, License steps, Maximum configured APs, Maximum users, ARP table entries, ND items, IPv4/IPv6 routing tables, VLAN table, MAC table, Portal/802.1x authentication users	Yes
802.11 MAC	Protocol cluster, Maximum SSIDs, Hide SSID, User limits, User testing, Multi-country code, Wireless user isolation, Channel switching, Local forwarding	Yes
CAPWAP	AP serial auto-entry, AC discovery, IPv6 tunnels, Clock sync, AP dual uplink, Basic network parameter configuration, L2/L3 networking, NAT traversal	Yes
Roaming	L2/L3 roaming within same AC, L2/L3 roaming across different ACs	Yes
Routing	NAT, PPPoE, DDNS, SSL VPN, IPSEC VPN, RIP/RIPNG, GRE	Yes
Access Control	Open system, Shared-Key, WEP, WPA/WPA2/WPA3, TKIP, CCMP, WAPI, SSH v2.0, Wireless EAD, Local/LDAP authentication, Visitor access	Yes
QoS	Priority mapping, L2-L4 classification, Flow rate limiting, 802.11e/WMM, Role-based access control, Intelligent bandwidth control, Voice optimization, WMM CAC, End-to-end QoS	Yes
Wireless Resource Management	Country code lock, Static/dynamic channel/power settings, Rate adjustment, Load balancing, Intelligent load balancing	Yes
Security Defense	Static/dynamic blacklists, Whitelist, Illegal AP detection/countermeasures, Flooding/Spoof/Weak IV attacks, WIPS	Yes
Layer 2 Protocols	ARP reply, 802.1p/q/x, Broadcast storm suppression	Yes
IP Protocols	IPv4 protocol, Native IPv6, IPv6 SAVI, IPv6 Portal	Yes
Multicast	MLD Snooping, IGMP Snooping, Multicast groups, Multicast to Unicast	Yes
Network Management	WEB, SNMP v1/v2/v3, RMON, CLI, TELNET, FTP	Yes
Green Energy Saving	Scheduled RF port shutdown, Service shutdown, Packet power control	Yes
WLAN Applications	RF Ping, Remote probe, Real-time spectrum protection, Intelligent service awareness, Fair scheduling, Traffic shaping, Channel sharing/reuse, Rate adjustment, Weak signal handling	Yes

Key Features

802.11ax AP Management

Supports management of traditional 802.11a/b/g/n/ac APs and cooperates with H3C 802.11ax protocol APs to enhance wireless spectrum utilization, increase effective access users, reduce deployment costs, and improve user experience in high-density environments.

Dual Power Supply Redundancy

Built-in dual-power redundant backup ensures network stability and reliability. If one power supply or circuit fails, the other immediately takes over.

Flexible Data Forwarding

Supports centralized, distributed, and policy-based forwarding modes. Users can flexibly configure forwarding methods based on business needs and network conditions, including centralized authentication with local forwarding.

Reliable Gateway Functionality

Dual WAN port design provides uplink backup. Supports PPPoE, NAT gateway functions, dynamic/static IP address settings, and other essential gateway capabilities for small and medium enterprises.

Bonjour Gateway Support

Enables easy integration with Apple devices such as printers, TVs, and tablets for small business environments.

Operational-Level Access Control

User Profile-based access control with configurable templates for CAR policies, QoS policies, and user behavior restrictions. Supports MAC-based authentication and VLAN-based security policies for granular user management.

Intelligent Channel Switching

Automatically assigns optimal channels to APs, reduces adjacent channel interference, and avoids interference sources like radar and microwave ovens through real-time channel interference detection.

Intelligent AP Load Balancing

Analyzes wireless client locations in real-time, dynamically determines load-sharing APs, and allocates load based on user sessions or traffic to optimize network performance.

7-Layer Mobile Security (WIDS/WIPS)

Comprehensive security defense including blacklist/whitelist, rogue AP detection, malformed packet detection, illegal user offline, and signature-based MAC layer attack detection. Integrates with H3C firewall/IPS equipment for end-to-end security protection.

RealTime Spectrum Guard (RTSG)

Professional spectrum monitoring solution with Sensor AP integration for 24/7 wireless environment quality monitoring, interference source identification, and RF quality history tracking through H3C iMC management center.

RF Optimization Engine (ROE)

Built-in optimization engine improves application acceleration and quality assurance in high-density access and streaming media scenarios through features like multi-user fair scheduling, interference filtering, rate optimization, and intelligent bandwidth assurance.

Comprehensive Authentication Methods

802.1x Authentication: Supports TLS, PEAP, TTLS, MD5, SIM cards, and local authentication with dynamic VLAN/ACL authorization
MAC Address Authentication: Ideal for handheld terminals like Wi-Fi phones and medical PDAs
Portal Authentication: Built-in Portal server with browser-based authentication, flexible page customization, and policy-based access control

IPv4/IPv6 Dual Protocol Stack

Supports Native IPv6 for wireless customers, IPv6 tunnel negotiation, and operation in IPv6 networks while maintaining IPv4 compatibility. Includes IPv6 Source Address Validation (SAVI) technology to prevent forged packet attacks.

End-to-End QoS

Based on Comware platform with full Diff-Serv standard support, including flow classification, traffic policing, queue management, and scheduling. Supports IPv6 protocol and implements EF, AF1~AF4, and BE service classes for comprehensive data, voice, and video service guarantees.

Fast Layer 2 & 3 Roaming

Supports seamless L2 and L3 roaming across subnets with key caching technology enabling fast switching. Roaming time within a single AC does not exceed 50ms, meeting voice service requirements and simplifying network planning.
