H3C UAP752 802.11be Wi-Fi 7 Dual-Band High-Speed Enterprise Ceiling Wireless Access Point with 2.5G Ethernet Port, PoE+ Powered for High-Density Office, Hotel and Commercial Network Coverage

Brand Name:	H3C
Model Number:	H3C UAP752
MOQ:	1
Price:	80$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Dimensions:

220mm*220mm*43.3mm

Weight:

Ethernet Port:

1 X 100/1000/2500Mbps (PoE Powered)

Power Consumption:

≤18.9W

Transmit Power:

2.4GHz:29dBm, 5GHz:29dBm

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C UAP752 Wi-Fi 7 access point

enterprise ceiling wireless AP with 2.5G Ethernet

PoE+ powered high-density commercial access point

Product Description

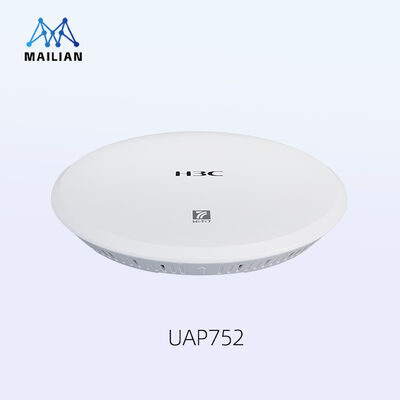

H3C UAP752 802.11be Wi-Fi 7 Dual-Band High-Speed Enterprise Ceiling Wireless Access Point

The H3C UAP752 is an indoor 802.11be wireless access device with a maximum access rate of 3.57Gbps. Featuring dual-band quadruple stream technology, RF 1 supports the 5GHz frequency band with 2 spatial streams and maximum negotiable rate of 2.882Gbps, while RF 2 supports the 2.4GHz frequency band with 2 spatial streams and maximum negotiable rate of 0.688Gbps. This access point delivers superior signal coverage quality, meeting wireless coverage needs for small, medium and micro enterprise indoor scenarios.

Management Modes

Cloud Management Mode: Industry-leading capabilities including cloud remote management, monitoring, cloud authentication, cloud operation and maintenance, and network optimization. This is the preferred management mode suitable for networking requirements of all sizes.
Local Centralized Management Mode: Supports centralized management of UR series cloud gateways with backup management capabilities.

Hardware Specifications

Properties	UAP752
Dimensions (antenna interface and accessories not included)	220mm * 220mm * 43.3mm
Weight	640g
Shell Color	White
Fixed Port	1 * 100/1000/2500Mbps Ethernet port uplink port (PoE powered)
PoE	Support 802.3at power receiver
Local Power Supply	Support (power adapter not included) Power adapter input: 100-240V AC Power adapter output: 12V/2A
Power Consumption	≤18.9W
Built-in Antenna	Built-in low-emission omnidirectional antenna (2.4GHz: 3dBi, 5GHz: 4dBi)
Transmit Power (combined power)	2.4GHz: 29dBm 5GHz: 29dBm The actual power is adjusted according to the requirements of different national regulations
Adjustable Power Granularity	10%
Operating Frequency Band	802.11be/ax/ac/n/a: 5.725GHz-5.850GHz (China); 5.47～5.725GHz; 5.15~5.35GHz (China) 802.11be/ax/b/g/n: 2.4GHz-2.483GHz (China)
Modulation Technology	OFDM, DSSS, MIMO-OFDM, MIMO-OFDMA with various modulation schemes
Operating Temperature/Storage Temperature	-10ºC～55ºC / -40ºC～70ºC
Working Humidity/Storage Humidity	5%~95% (non-condensing) / 5% ~95% (non-condensing)
MTBF	3,468,960 hours

Software Specifications

Characteristics	Description
802.11 Protocol	802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11n, 802.11ac, 802.11ax, 802.11be, 802.11k, 802.11v
WLAN Security	RSN, WPA3, WPA2, WPA, TKIP, CCMP, Open system, PSK, MAC address blacklist, MAC address whitelist
Wireless Service	SSID configuration, Hide SSID configuration, Split RF bound wireless services, Service template bound to VLAN, User speed limit
Radio Frequency Management	Power settings, Channel settings, DFS, RF switch, RF mode
Portal Authentication	SMS authentication, one-click authentication, WeChat official account authentication, account authentication, membership authentication, etc. (Networking must be coordinated with UR routing + cloud platform)
Performance Specifications	Maximum wireless terminal accesses: 256 (theoretical) Supports up to 8 SSIDs (including 1 * Managed Wi-Fi)

Advanced Technology Features

Multi-RU Technology

Supports more granular allocation of wireless resources. Wi-Fi 7 allows a single STA to occupy multiple RU resources simultaneously, with RUs of different sizes combinable for more flexible resource scheduling compared to Wi-Fi 6.

MLO Technology (Multi-Link Operation)

Supports multi-link operation, establishing multiple RF links with terminals simultaneously. Switches and collaborates on different links based on usage scenario and air interface status for more efficient, faster, and more reliable data transmission.

OFDMA Technology

Supports Orthogonal Frequency Division Multiple Access technology, enabling APs to subdivide wireless bandwidth and use different subcarriers to transmit data to multiple terminals simultaneously, reducing delay and improving user experience for low-latency applications.

4096-QAM Technology

Supports 4096 QAM digital signal modulation mode, where modulation symbols carry 12 bits. Provides 20% rate boost compared to Wi-Fi 6's 1024-QAM under the same encoding.

Preamble Puncturing Technology

Bundles the main channel and remaining discontinuous available slave channels when secondary channels encounter interference, reducing bandwidth waste and increasing spectrum utilization by up to 300%.

Space Multiplexing Technology

Supports SR technology & BSS Coloring mechanism, adjusting transmit power through link layer recognition packet color control terminal. Improves channel multiplexing ability during high-density deployment and alleviates same-channel interference.

TWT Technology

Supports Target Wake Times technology, allowing APs to uniformly schedule terminal wake-up and hibernation. Reduces conflicts between terminals and unnecessary wake-ups, achieving energy saving purposes.

Operational Features

Plug and Play: Supports plug-and-play wireless services when cloud platform bound or locally managed by UR series devices.
UR Centralized Management: Can be centrally managed by UR series routers with comprehensive management functions including wireless service configuration, RF configuration, version updates, VLAN modification, and reset.
Ad Hoc Network Features: Based on native equipment intelligence, supports automatic discovery between devices, automatic topology establishment, plug-and-play of new devices, and automatic synchronous configuration for simplified initiation and configuration.
High Reliability: Supports custom link detection and network analysis tools with multiple fault detection and recovery mechanisms to ensure stable network operation.
