H3C UAP752H 802.11be Wi-Fi 7 Dual-Band In-Wall Panel Wireless Access Point with 2.5G Port, PoE Powered Enterprise-Grade AP for Hotel, Office, Smart Room and High-Density Indoor Coverage

Brand Name:	H3C
Model Number:	H3C UAP752H
MOQ:	1
Price:	63$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Dimensions:

86mm*86mm*43.5mm

Weight:

Max Access Rate:

3.57Gbps

Power Consumption:

Operating Temperature:

0ºC～40ºC

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C UAP752H Wi-Fi 7 access point

dual-band in-wall wireless AP

enterprise-grade PoE access point

Product Description

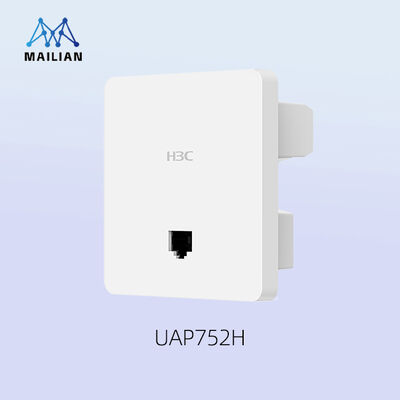

H3C UAP752H 802.11be Wi-Fi 7 Dual-Band In-Wall Panel Wireless Access Point

The H3C UAP752H is an enterprise-grade Wi-Fi 7 (802.11be) ultra-thin panel access point featuring a 2.5G port and PoE power. Designed for high-density indoor environments including hotels, offices, smart rooms, and educational facilities, this access point delivers maximum throughput of 3.57Gbps with dual-band quad-stream capability.

Key Features

Wi-Fi 7 (802.11be) technology with 3.57Gbps maximum throughput
Dual-band quad-stream: 5GHz (2.882Gbps) + 2.4GHz (0.688Gbps)
8.5mm ultra-thin design with standard 86mm panel size
2.5G Ethernet ports (uplink and LAN) with PoE support
Multi-color shell options: white, black, gold, gray
Cloud management and local web management
Supports up to 256 wireless clients and 8 SSIDs

Hardware Specifications

Property	Specification
Dimensions	86mm * 86mm * 43.5mm
Weight	230g
Ports	1 * 100/1000/2500Mbps Ethernet (PoE powered uplink) 1 * 100/1000/2500Mbps Ethernet (LAN)
PoE Support	802.3af/802.3at power receiver
Power Consumption	13W
Antenna	Built-in omnidirectional (2.4GHz: 3dBi, 5GHz: 3dBi)
Transmit Power	2.4GHz: 20dBm, 5GHz: 19dBm
Operating Temperature	0°C to 40°C
MTBF	613,200 hours

Advanced Technologies

Multi-RU Technology: Enables flexible spectrum resource scheduling by allowing single stations to occupy multiple resource units simultaneously.

MLO (Multi-Link Operation): Establishes multiple RF links with terminals for faster, more reliable data transmission.

OFDMA Technology: Reduces latency by transmitting data to multiple terminals simultaneously using different subcarriers.

4096-QAM Modulation: Provides 20% higher data rates compared to Wi-Fi 6's 1024-QAM.

Spatial Reuse Technology: Improves channel utilization in high-density deployments through BSS Coloring mechanism.

TWT (Target Wake Time): Reduces power consumption by scheduling terminal wake-up and hibernation cycles.

Management & Deployment

Plug-and-play operation with cloud platform binding
Centralized management via UR series routers
Ad hoc networking with automatic device discovery
Multiple management interfaces: cloud platform, local web, H3C Xiaobei APP
High reliability with custom link detection and fault recovery
Easy installation on standard 86mm panel cassettes

Ideal Applications: School dormitories, hospital wards, hotel rooms, office spaces, and other high-density indoor environments where traditional AP deployment suffers from poor signal quality.
