H3C UAP652 802.11ax AX1500 Wi-Fi 6 Dual-Band Indoor Ceiling/Wall-Mount Wireless Access Point, Gigabit PoE Powered Enterprise AP for Office, School & Retail Coverage

Brand Name:	H3C
Model Number:	H3C UAP652
MOQ:	1
Price:	44$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Dimensions:

220mm*220mm*35mm

Weight:

Ethernet Port:

1 X 10/100/1000Mbps

Transmit Power:

2.4G:27dBm; 5G:27dBm

Operating Temperature:

-10ºC～55ºC

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C UAP652 Wi-Fi 6 access point

AX1500 dual-band wireless AP

Gigabit PoE enterprise access point

Product Description

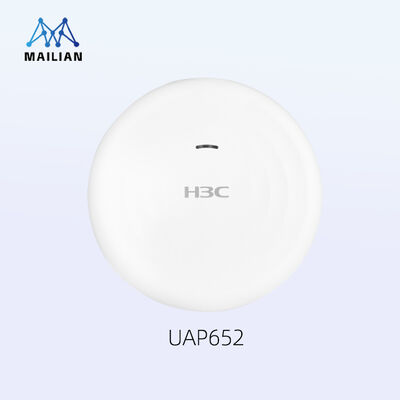

H3C UAP652 AX1500 Wi-Fi 6 Dual-Band Indoor Access Point

H3C UAP652 is a Wi-Fi 6 (802.11ax) access point independently developed by H3C Technology Co., Ltd., delivering 1500Mbps access rates with maximum adjustable rates up to 1800Mbps. Designed for enterprise environments including offices, schools, and retail spaces.

Hardware Specifications

Properties	UAP652
Dimensions	220mm * 220mm * 35mm
Weight	370g
Shell Color	White
Fixed Port	1 * 10/100/1000Mbps Self-Negotiating Ethernet Uplink (PoE Powered)
PoE Support	802.3at power receiver
Local Power Supply	Power adapter input: 100-240V AC; Output: 12V/1.5A (≥18W)
Power Consumption	≤11.35W
Built-in Antenna	Low-emission omnidirectional (2.4GHz: 3dBi, 5GHz: 4dBi)
Transmit Power	2.4G: 27dBm; 5G: 27dBm (actual power adjusted per national regulations)
Operating Frequency Band	802.11ax/ac/n/a: 5.15GHz-5.85GHz; 802.11ax/b/g/n: 2.4GHz-2.483GHz
Operating Temperature	-10ºC to 55ºC
Storage Temperature	-40ºC to 70ºC
MTBF	2,229,720 hours

Software Specifications

Characteristics	Description
802.11 Protocols	802.11a/b/d/e/g/h/i/n/ac/ax/k/v
WLAN Security	RSN, WPA3, WPA2, WPA, TKIP, CCMP, Open system, PSK, MAC address blacklist/whitelist
Wireless Service	SSID configuration, VLAN binding, user speed limit, RF management
Portal Authentication	SMS, one-click, WeChat, account, membership authentication
Performance Specifications	Max wireless terminals: 256; Max SSIDs: 8 (including 1 Managed Wi-Fi)

Key Features

OFDMA Technology: Subdivides wireless bandwidth for simultaneous data transmission to multiple terminals, reducing latency for voice and video applications
Spatial Reuse Technology: BSS Coloring mechanism improves channel multiplexing in high-density deployments
TWT Technology: Schedules terminal wake-up/hibernation to reduce conflicts and save energy
Plug and Play: Automatic wireless service provisioning with cloud platform or local device management
Intelligent Rate Adjustment: 2.4GHz RF supports 802.11n/ax mode switching with rates up to 1800Mbps
Centralized Management: Compatible with MSG300/USG300/UR series gateways
Ad Hoc Networking: Automatic device discovery, topology establishment, and configuration synchronization
High Reliability: Custom link detection, network analysis tools, and multiple fault recovery mechanisms

The UAP652 supports ad hoc network features for fast deployment, automatic management, and simplified operation in small to medium business environments, allowing users to focus on their core business operations.
