H3C UAP672H-E 802.11ax AX3000 Wi-Fi 6 In-Wall Panel Wireless Access Point with 2.5G Port, Ultra-Thin Enterprise-Grade AP for Hotel, Office, Hospital & Dormitory Coverage

Brand Name:	H3C
Model Number:	H3C UAP672H-E
MOQ:	1
Price:	55$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Dimensions:

86mm*86mm*37mm

Weight:

Uplink Port:

1 X 100Mbps/1000Mbps/2.5Gbps

LAN Port:

1 X 10/100/1000Mbps

Operating Temperature:

-10ºC～50ºC

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C UAP672H-E Wi-Fi 6 access point

AX3000 in-wall wireless AP

enterprise-grade access point 2.5G port

Product Description

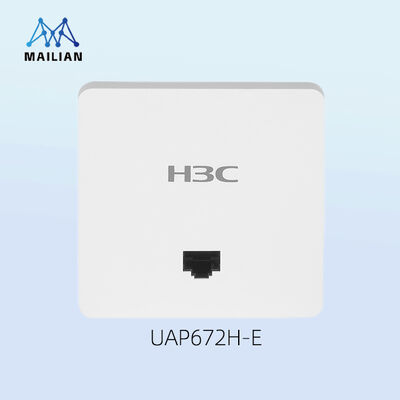

H3C UAP672H-E 802.11ax AX3000 Wi-Fi 6 In-Wall Panel Wireless Access Point

H3C UAP672H-E is a Wi-Fi 6 (802.11ax) ultra-thin panel AP product independently developed by H3C Co., Ltd., with dual-band quad-stream and a maximum access rate of 2.975Gbps. Compact appearance, 7.9mm ultra-thin design, four-color shell, perfectly adapted to the decoration style, simple installation method, can be installed on the cassette.

Hardware Specifications

Properties	UAP672H-E
Size	86mm * 86mm * 37mm
Weight	150g
Fixed Port	Uplink: 1 * 100Mbps/1000Mbps/2.5Gbps self-negotiating Ethernet port (PoE powered) LAN: 1 * 10/100/1000Mbps self-negotiating Ethernet port
PoE	Support 802.3af power
Shell Color	White (default), black, gold, gray can be replaced
Built-in Antenna	Built-in low-radiation omnidirectional smart antenna (2.4G: 3dBi; 5G: 4dBi)
Operating Frequency Band	802.11ax/ac/n/a: 5.725GHz-5.850GHz (China); 5.47GHz～5.725GHz; 5.15GHz~5.35GHz (China) 802.11ax/b/g/n: 2.4GHz-2.483GHz (China)
Transmit Power	2.4G: 21dBm; 5G: 20dBm (combined power, actual power adjusted according to the requirements of different national regulations)
Adjustable Power Granularity	10%
Operating Temperature/Storage Temperature	-10ºC～50ºC / -40ºC～70ºC
Working Humidity/Storage Humidity	5% ~95% (non-condensing) / 5% ~95% (non-condensing)
Power Consumption	≤11W
MTBF	>613200 hrs at 25ºC

Software Specifications

Characteristics	Description
802.11 Protocol	802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11n, 802.11ac, 802.11ax, 802.11k, 802.11v
WLAN Security	RSN, WPA3, WPA2, WPA, TKIP, CCMP, Open system, PSK, MAC address blacklist, MAC address whitelist
Wireless Service	SSID configuration, Hide SSID configuration, Split RF bound wireless services, Service template bound to VLAN, User speed limit
Radio Frequency Management	Power settings, Channel settings, DFS, RF switch, RF mode
Portal Authentication	SMS authentication, one-click authentication, WeChat official account authentication, account authentication, membership authentication, No perceptual authentication, Portal escape
Network Protocol	ARP, ARP SNOOPING, ICMP, NTP client, DNS client, TCP/UDP, DHCP Server (Manage Wi-Fi Only), DHCP Client, DHCP option 43, HTTP, HTTPS, IPV6, LLDP, 802.1q

Key Features

Standard 86mm Panel Size
UAP672H-E adopts standard 86mm * 86mm panel sizes, which can completely reuse the user's existing 86mm network port panel cassette. During installation, the original network port panel can be easily replaced without professionals, and the 7.9mm ultra-thin design will not affect other socket panels or decoration items.

OFDMA Technology
Supporting OFDMA (Orthogonal Frequency Division Multiple Access) technology, APs can subdivide wireless bandwidth and use different subcarriers to transmit data to multiple terminals simultaneously, reducing delay and improving user experience for low-latency applications such as voice and video.

Spatial Reuse Technology
Supports SR (Spatial Reuse) technology & BSS Coloring mechanism, adjusting transmit power through link layer recognition packet color control terminal, improving channel multiplexing ability during high-density deployment, and enhancing spectrum resource utilization.

TWT Technology
Supports TWT (Target Wake Times) technology, allowing APs to uniformly schedule the wake-up and hibernation of terminals, reducing conflicts between terminals and unnecessary wake-ups, achieving energy saving.

Plug and Play
UAP672H-E supports plug-and-play wireless services, providing wireless services when bound to cloud platform or managed by local MSG300/USG300/UR series devices.

Centralized Management
Can be centrally managed by MSG300/USG300/UR series multi-service gateways, supporting various management functions including wireless service configuration, RF configuration, version updates, VLAN modification, and reset.

Ad Hoc Network Features
Based on native equipment of Xinhua 3Intelligence, featuring fast start, fast network distribution, fast tuning, fast troubleshooting, and fast cloud migration. Supports automatic device discovery, topology establishment, plug-and-play of new devices, and automatic configuration synchronization.

High Reliability
Supports custom link detection and network analysis tools, including various hang and fault detection detections. Features multiple fault recovery mechanisms to ensure stable network operation.

Performance Specifications

Maximum number of wireless terminal accesses: 256 (theoretical)
Single RF supports up to 8 SSIDs (including 1 managed Wi-Fi)
