H3C UAP672H-S Panel 802.11ax Wireless Access Point High‑Speed Wi-Fi 6 Enterprise‑Grade In‑Wall AP for Hotel Rooms Offices and Smart Building Coverage

Brand Name:	H3C
Model Number:	H3C UAP672H-S
MOQ:	1
Price:	43$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Dimensions:

86mm*86mm*37mm

Weight:

Ethernet Ports:

1 X 10/100/1000Mbps Uplink, 1 X 10/100/1000Mbps LAN

PoE Support:

802.3af

Operating Temperature:

-10ºC～50ºC

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C UAP672H-S Wi-Fi 6 access point

enterprise-grade in-wall wireless AP

hotel room smart building coverage

Product Description

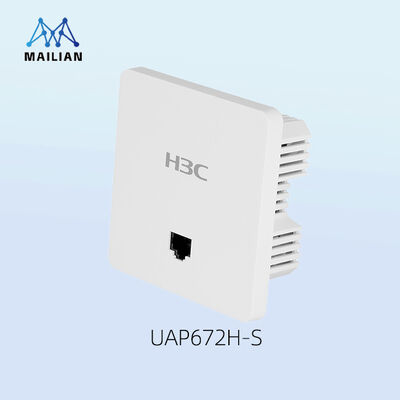

H3C UAP672H-S Panel 802.11ax Wireless Access Point

High-Speed Wi-Fi 6 Enterprise-Grade In-Wall AP for Hotel Rooms, Offices and Smart Building Coverage

Product Overview

H3C UAP672H-S is a Wi-Fi 6 (802.11ax) ultra-thin panel AP product independently developed by H3C Technology Co., Ltd., with dual-band quad-stream and a maximum access rate of 2.975Gbps. Compact appearance, 7.9mm ultra-thin design, four-color shell options, perfectly adapted to various decoration styles with simple installation.

Hardware Specifications

Properties	UAP672H-S
Size	86mm * 86mm * 37mm
Weight	150g
Fixed Ports	Uplink: 1 * 10/100/1000Mbps self-negotiating Ethernet port (PoE powered) LAN: 1 * 10/100/1000Mbps self-negotiating Ethernet port
PoE	Support 802.3af power
Shell Color	White (default), black, gold, gray (replaceable)
Built-in Antenna	Built-in low-radiation omnidirectional smart antenna (2.4G: 3dBi; 5G: 4dBi)
Operating Frequency Band	802.11ax/ac/n/a: 5.725GHz-5.850GHz (China); 5.47GHz-5.725GHz; 5.15GHz-5.35GHz (China) 802.11ax/b/g/n: 2.4GHz-2.483GHz (China)
Transmit Power	2.4G: 21dBm; 5G: 20dBm (combined power, adjusted per national regulations)
Adjustable Power Granularity	10%
Operating/Storage Temperature	-10ºC to 50ºC / -40ºC to 70ºC
Operating/Storage Humidity	5% to 95% (non-condensing)
Power Consumption	≤11.65W
MTBF	>613,200 hours at 25ºC

Software Specifications

Supported Protocols: 802.11a/b/d/e/g/h/i/n/ac/ax/k/v
WLAN Security: RSN, WPA3, WPA2, WPA, TKIP, CCMP, Open system, PSK, MAC address blacklist/whitelist
Wireless Service: SSID configuration, Hide SSID, Split RF bound wireless services, VLAN binding, User speed limit
RF Management: Power settings, Channel settings, DFS, RF switch, RF mode
Portal Authentication: SMS, one-click, WeChat official account, account, membership authentication
Performance: Maximum 256 wireless terminal accesses, Single RF supports up to 8 SSIDs

Key Features

Standard 86mm Panel Size: Fits existing 86mm mesh panel cassettes, easy replacement installation
OFDMA Technology: Orthogonal Frequency Division Multiple Access reduces latency for voice/video applications
Spatial Reuse Technology: SR & BSS Coloring mechanism improves channel multiplexing in high-density deployments
TWT Technology: Target Wake Times reduces terminal conflicts and unnecessary wake-ups for energy saving
Plug and Play: Automatic wireless service provisioning with cloud platform or local device management
Centralized Management: Compatible with MSG300/USG300/UR series gateways for comprehensive management
Ad Hoc Networking: Automatic device discovery, topology establishment, and configuration synchronization
High Reliability: Custom link detection, network analysis tools, and multiple fault recovery mechanisms
