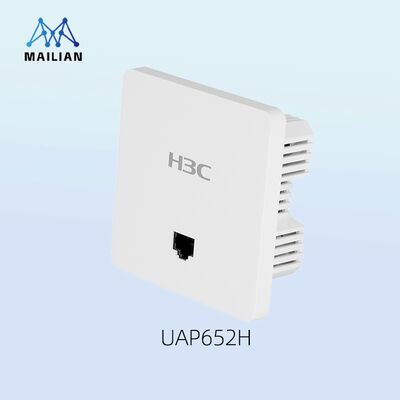

H3C UAP652H 1.5Gbps Dual-Band Wi-Fi 6 802.11ax Wall Panel Wireless Access Point (PoE, 2×GE Ports)

Brand Name:	H3C
Model Number:	H3C UAP652H
MOQ:	1
Price:	37$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Dimensions:

86mm*86mm*37mm

Weight:

Ethernet Ports:

2×10/100/1000Mbps

PoE Support:

802.3af

Operating Temperature:

-10ºC～50ºC

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C UAP652H Wi-Fi 6 access point

dual-band wireless access point PoE

wall panel access point 2×GE ports

Product Description

H3C UAP652H 1.5Gbps Dual-Band Wi-Fi 6 802.11ax Wall Panel Wireless Access Point

The H3C UAP652H is a Wi-Fi 6 (802.11ax) ultra-thin panel access point product independently developed by H3C Technology Co., Ltd. Featuring dual-band quadruple streams with an access rate of 1800Mbps, this compact device boasts a 7.9mm ultra-thin design and four-color shell options to perfectly adapt to various decoration styles.

Hardware Specifications

Properties	UAP652H
Size	86mm * 86mm * 37mm
Weight	150g
Fixed Ports	Uplink: 1 * 10/100/1000Mbps self-negotiating Ethernet port (PoE powered) LAN: 1 * 10/100/1000Mbps self-negotiating Ethernet port
PoE	Supports 802.3af power
Shell Color	White (default), black, gold, gray (replaceable)
Built-in Antenna	Built-in low-radiation omnidirectional antenna (2.4G: 3dBi; 5G: 4dBi)
Operating Frequency Band	802.11ax/ac/n/a: 5.725GHz-5.850GHz (China); 5.47GHz-5.725GHz; 5.15GHz-5.35GHz (China) 802.11ax/b/g/n: 2.4GHz-2.483GHz (China)
Transmit Power	2.4G: 21dBm; 5G: 20dBm (combined power, adjusted per national regulations)
Adjustable Power Granularity	10%
Operating/Storage Temperature	-10ºC to 50ºC / -40ºC to 70ºC
Operating/Storage Humidity	5% to 95% (non-condensing)
Power Consumption	≤11.65W
MTBF	>613,200 hours at 25ºC

Software Specifications

802.11 Protocols Supported:

802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11n, 802.11ac, 802.11ax, 802.11k, 802.11v

WLAN Security:

RSN, WPA3, WPA2, WPA, TKIP, CCMP, Open system, PSK, MAC address blacklist/whitelist

Wireless Service: SSID configuration, hidden SSID, split RF bound wireless services, VLAN binding, user speed limiting
Radio Frequency Management: Power settings, channel settings, DFS, RF switch, RF mode
Portal Authentication: SMS authentication, one-click authentication, WeChat official account authentication, account authentication, membership authentication, no perceptual authentication, portal escape
Performance Specifications: Maximum 256 wireless terminal accesses (theoretical), maximum 8 SSIDs (including 1 * Managed Wi-Fi)

Key Features

Standard 86mm Panel Size

UAP652H adopts the standard 86mm * 86mm panel size, completely reusing existing 86mm mesh panel cassettes. The 7.9mm ultra-thin design ensures compatibility with surrounding socket panels and decoration items.

OFDMA Technology

Supports Orthogonal Frequency Division Multiple Access technology, allowing APs to subdivide wireless bandwidth and use different subcarriers to transmit data to multiple terminals simultaneously, reducing delay and improving user experience for low-latency applications.

Spatial Reuse Technology

Supports SR technology & BSS Coloring mechanism, adjusting transmit power through link layer recognition to improve channel multiplexing ability during high-density deployment and alleviate same-channel interference.

TWT Technology

Supports Target Wake Times technology, allowing APs to uniformly schedule terminal wake-up and hibernation, reducing conflicts between terminals and unnecessary wake-ups for energy saving.

Plug and Play

Supports plug-and-play wireless services, providing wireless services when powered up with cloud platform binding or local MSG300/USG300/UR series device management.

Centralized Management

Can be centrally managed by MSG300/USG300/UR series multi-service gateways, supporting wireless service configuration, RF configuration, version updates, VLAN modification, and reset functions.

Ad Hoc Network Features

Based on native Xinhua 3Intelligence equipment, featuring fast start, network distribution, tuning, troubleshooting, and cloud migration. Supports automatic device discovery, topology establishment, and plug-and-play functionality.

High Reliability

Supports custom link detection and multiple network analysis tools, including various hanging detection and fault detection mechanisms, with multiple fault recovery mechanisms to ensure stable network operation.
