H3C UAP522H AC1300 Dual Band In-Wall Wireless Access Point with PoE Gigabit and Ultra-Thin 7.9mm Design

Brand Name:	H3C
Model Number:	H3C UAP522H
MOQ:	1
Price:	28$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

AC1300 Dual Band Wireless Access Point

PoE Gigabit WiFi AP

Ultra-Thin 7.9mm In-Wall AP

Product Description

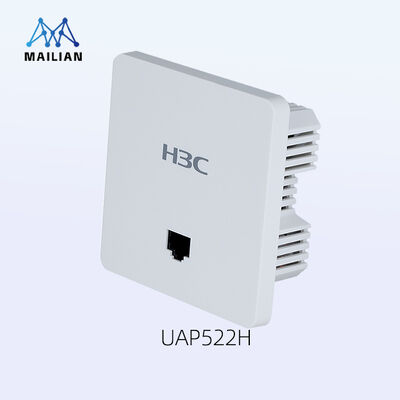

H3C UAP522H AC1300 Dual Band In-Wall Wireless Access Point

The H3C UAP522H is a gigabit high-speed ultra-thin panel wireless access point based on 802.11ac Wave2 technology, featuring dual band operation and quadruple stream architecture with an access rate of 1300Mbps. With its compact 7.9mm ultra-thin design and four-color shell options, it seamlessly integrates with any decor style while providing robust management capabilities.

Key Applications

Ideal for high-density environments including school dormitories, hospital wards, and hotel rooms. Solves traditional AP signal quality issues while significantly reducing installation and operating costs.

Management Modes

Cloud Management: Remote management, monitoring, cloud authentication, operation and maintenance, and network optimization
Local Management: Direct configuration and control

Hardware Specifications

Property	Specification
Dimensions	86mm * 86mm * 37mm (Wall Thickness: 7.9mm)
Fixed Ports	Uplink: 1 * 10/100/1000Mbps Ethernet (PoE powered) LAN: 1 * 10/100/1000Mbps Ethernet
PoE Support	802.3af power standard
Shell Colors	White (default), black, gold, gray (replaceable)
Antenna	Built-in low-radiation omnidirectional (2.4G: 3dBi; 5G: 4dBi)
Operating Frequency	5.725GHz-5.850GHz & 5.15GHz-5.35GHz (5GHz) 2.4GHz-2.483GHz (2.4GHz)
Transmit Power	2.4G: 21dBm; 5G: 20dBm
Power Adjustment	10% granularity
Operating Temperature	-10°C to 50°C
Storage Temperature	-40°C to 70°C
Power Consumption	≤11.65W
MTBF	>613,200 hours at 25°C

Software Features

Wireless Standards

802.11a/b/d/e/g/h/i/n/ac/k/v compliant

Security Protocols

RSN, WPA3, WPA2, WPA, TKIP, CCMP, Open System, PSK, MAC address blacklist/whitelist

Wireless Services

SSID configuration and hiding
Split RF bound wireless services
Service template VLAN binding
User speed limiting

RF Management

Power and channel settings
DFS support
RF switching and mode selection
5G priority optimization

Portal Authentication

SMS, one-click, WeChat official account, account, and membership authentication with seamless user experience and portal escape capabilities.

Performance Specifications

Maximum wireless terminal access: 256 (theoretical)
Supports up to 8 SSIDs (including 1 managed Wi-Fi)

Key Benefits

Standard 86mm Panel Design: Fits existing 86mm mesh panel cassettes for easy installation without professional assistance

Plug and Play Operation: Automatic wireless service provisioning when powered on with cloud platform or UR series device management

Centralized Management: Comprehensive control through UR series multi-service gateways including configuration, updates, and monitoring

Ad Hoc Networking: Automatic device discovery, topology establishment, and plug-and-play functionality with fast deployment and troubleshooting

High Reliability: Custom link detection, network analysis tools, and multiple fault recovery mechanisms ensure stable operation

Management Interfaces

Cloud platform management, local web management, and H3C Xiaobei APP support for comprehensive device control and monitoring.
