H3C US100 Series High-Port Density Gigabit Ethernet Switch with 6kV Lightning Protection and Plug & Play for Enterprise Networking

Brand Name:	H3C
Model Number:	H3C US100 series large-port Ethernet switches
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

H3C US100 Series Large-port...es.pdf

Port Count:

16/24/48

Port Type:

10/100/1000Base-T, 1000Base-X SFP, 10G Base-X SFP+

Switching Capacity:

32Gbps-104Gbps

Forwarding Rate:

23.8Mpps-77.4Mpps

Power Supply:

100~240V AC

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C US100 Gigabit Ethernet switch with 6kV lightning protection

high-port density network switch for enterprise

plug and play Gigabit Ethernet switch

Product Description

H3C US100 Series High-Port Gigabit Ethernet Switch

The H3C US100 series is a new generation of green energy-saving unmanaged Ethernet switch products designed for easy installation and maintenance. Featuring rich business capabilities, these switches are ideal for small and micro enterprises, commercial chains, hotels, campuses, and various networking scenarios.

Standard Models Specifications

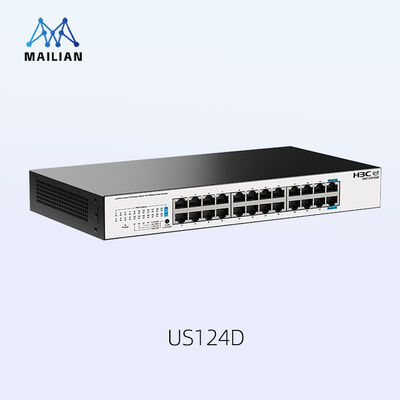

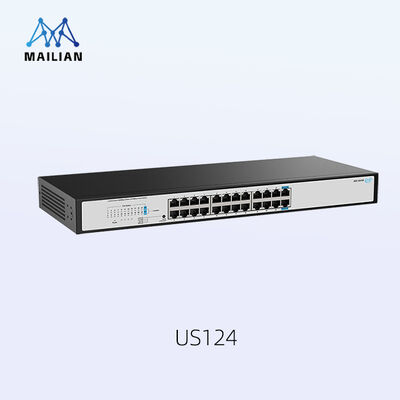

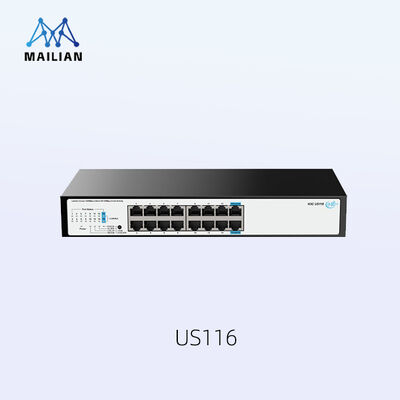

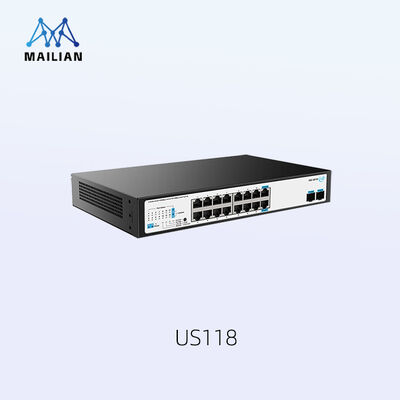

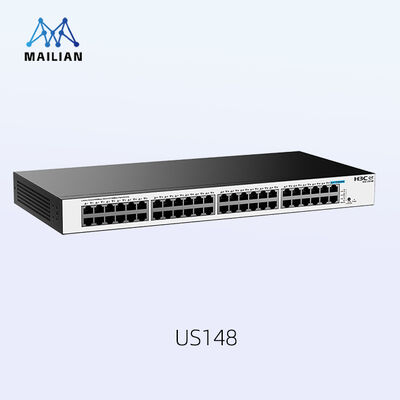

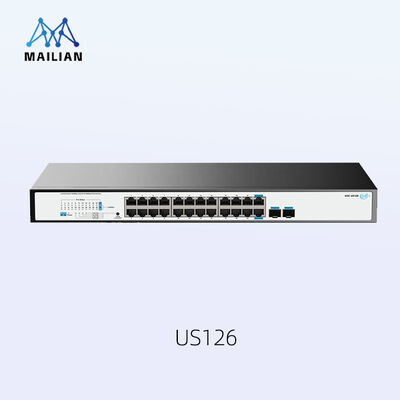

Properties	US116	US118	US124D	US124	US126	US148
Dimensions (W×D×H) mm	294×179×44	440×173×44	440×210×44
Fixed Ports	16×10/100/1000Base-T (2 uplink)	16×10/100/1000Base-T (2 uplink) 2×1000Base-X SFP (uplink)	24×10/100/1000Base-T (2 uplink)	24×10/100/1000Base-T (2 uplink)	24×10/100/1000Base-T (2 uplink) 2×1000Base-X SFP (uplink)	48×10/100/1000Base-T (2 uplink)
MAC Address Table	8K	8K	16K	16K	16K	16K
Port Switching Capacity	32Gbps	36Gbps	48Gbps	48Gbps	52Gbps	96Gbps
Forwarding Capability	23.8Mpps	26.8Mpps	35.7Mpps	35.7Mpps	38.7Mpps	71.4Mpps
Package Cache	4Mbit	4Mbit	12Mbit	12Mbit	12Mbit	12Mbit
PoE+ Support	Not supported
Cooling	No fan, natural	No fan, natural	Fan cooling	Fan cooling	Fan cooling	Fan cooling

PoE+ Models Specifications

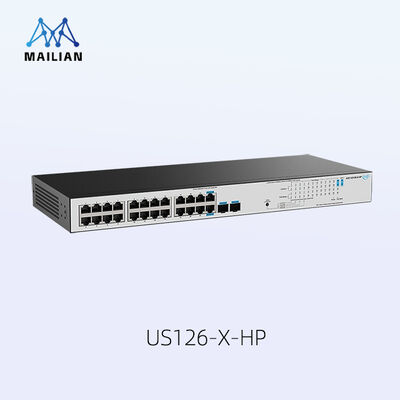

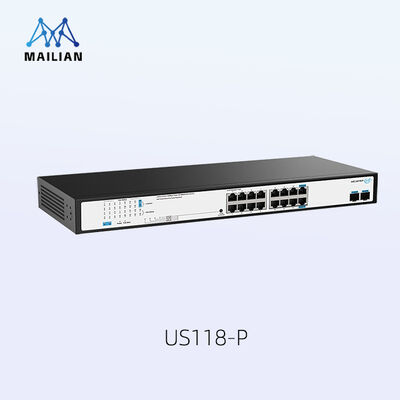

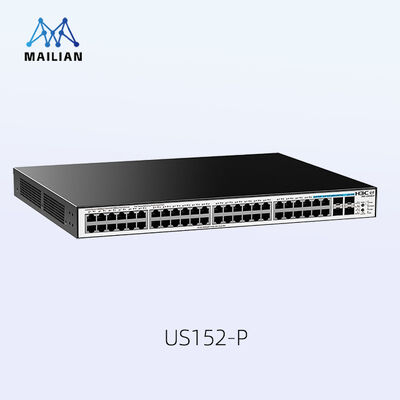

Properties	US118-P	US126-X-P	US126-X-HP	US152-P
Dimensions (W×D×H) mm	440×210×44	440×350×44
Fixed Ports	16×10/100/1000Base-T (2 uplink) 2×1000Base-X SFP (uplink)	24×10/100/1000Base-T (2 uplink) 2×10G Base-X SFP+ (uplink)	24×10/100/1000Base-T (2 uplink) 2×10G Base-X SFP+ (uplink)	48×10/100/1000Base-T (4 uplink) 4×1000Base-X SFP (uplink)
MAC Address Table	8K	16K
Port Switching Capacity	36Gbps	88Gbps		104Gbps
Forwarding Capability	26.8Mpps	65.7Mpps		77.4Mpps
Package Cache	4Mbit	12Mbit
PoE+ Power Supply	Max output: 225W Single port: 30W	Max output: 370W Single port: 30W		PoE+ supported

Common Features

Mode Switching: Standard exchange, Port isolation, Gather the upper couplet, Network cloning

Exchange Mode: Store forwarding mode
Power Supply: 100~240V AC
Operating Temperature: 0ºC～40ºC / Storage: -40ºC～70ºC
Operating Humidity: 5%~95% (non-condensing)
Port Lightning Protection: 6kV professional lightning protection
Certification: CQC certification, network access license
MTBF: >50,000 hours
Installation: With hanging ears, rack mountable

Key Features

Permanent PoE support - switch restarts ports without losing power, zero PoE power supply interruption
Four working modes: standard switching, port isolation, aggregation and uplinking, and network cloning
One-click mode switching - no complex configuration required
All ports support full-line speed forwarding for zero packet forwarding blocking
Shared cache architecture enhances burst traffic forwarding performance and reduces video lag
Professional built-in power supply and industrial grade design
Port protection reinforcement with 6kV professional lightning protection
