H3C MSR860-XS Series Gigabit Multi-Service Integrated Services Routers with Built-in AC Wireless Controller, Cloud Management, Advanced Security and QoS for SME Branch and Retail Network Gateways

Brand Name:	H3C
Model Number:	H3C MSR860-XS Series Routers
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Applicable Bandwidth:

500Mbps / 1Gbps

Encryption Performance:

200Mbps / 300Mbps

NAT Sessions:

250,000

Memory:

Power Consumption:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C MSR860-XS gigabit router

multi-service router with cloud management

SME branch network gateway router

Product Description

H3C MSR860-XS Series Gigabit Multi-Service Integrated Services Routers

Built-in AC Wireless Controller, Cloud Management, Advanced Security and QoS for SME Branch and Retail Network Gateways

Product Overview

The H3C MSR860-XS Series Routers address the evolving needs of small and medium-sized enterprises in network infrastructure. As businesses expand their digital presence, these routers provide comprehensive solutions for modern networking challenges including refined traffic control, simplified management, and integrated wired/wireless connectivity.

Key Features

Cloud management platform for simplified network administration
Integrated AC wireless controller eliminating separate AC equipment
Advanced traffic identification and control capabilities
Mobile app and cloud platform management support
Professional-grade security and QoS features

Hardware Specifications

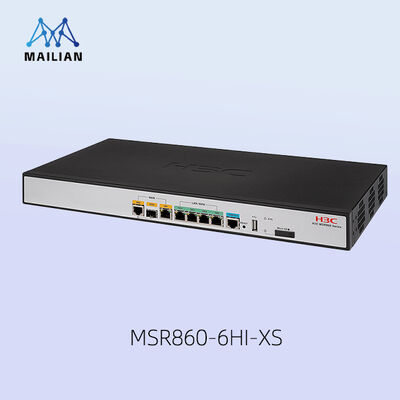

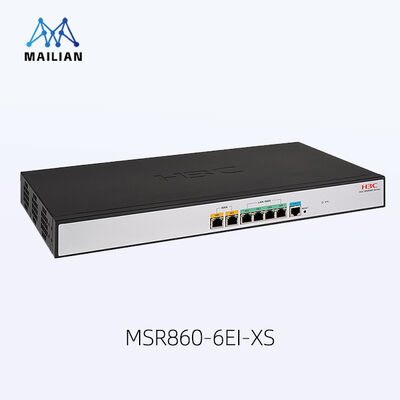

Properties	MSR860-6EI-XS	MSR860-6HI-XS
With the machine	250	350
Applicable bandwidth	500Mbps	1Gbps
Encryption performance	200Mbps	300Mbps
Number of IPSEC VPN tunnels	128	128
Number of NAT sessions	250,000	250,000
Memory	1GB	1GB
USB2.0	/	1
CON	1	1
WAN Ethernet	2GE	2GE(1Combo)
LAN Ethernet port	4GE (all switchable to WAN)	4GE (all switchable to WAN)
Maximum power consumption	20W	20W
AC power	Rated Range: 100～240V 50/60Hz	Rated Range: 100～240V 50/60Hz
Dimensions (WDH, mm)	44022544	44022544
Ambient temperature	0～45℃	0～45℃
Ambient relative humidity	5~95% (non-condensing)	5~95% (non-condensing)

Note: The number of bands and the applicable bandwidth are recommended values for comprehensive evaluation in specific environments, and may vary based on the actual site environment

Software Specifications

Properties	Function
Layer 2 protocol	Support Ethernet, Ethernet II, VLAN, 802.1p, 802.1Q, 802.1x, STP, RSTP, MSTP, PPP, PPPOE Client/Server, DDR, Modem
IP services	Support unicast/multicast forwarding, TCP, UDP, IP Option, IP Unnumber, policy routing, Netstream, sFlow, ECMP, UCMP
IP applications	Support Ping, Trace, ICMP, DHCP Server/Relay/Client, DNS client/Proxy, DDNS, UDP Helper, NTP, SNTP
IPv4 routing	Static routing, RIPv1/v2, OSPFv2, BGP, IS-IS, Routing iteration, Routing Strategy, ECMP, IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP
IPv6	Support IPv6 ND, PMTU, FIB, ACL, NAT-PT, tunnel, 6PE, DS-LITE; Static/dynamic routing protocols; IPv6 multicast protocols
QoS	Support LR, Port-Based Mirroring, Trust Mode, Priority, CAR, FIFO, WFQ, CBQ, GTS, traffic classification
Safety features	URL filtering, website blacklist/whitelist, application recognition/control, PORTAL, 802.1x, RBAC, Radius, Tacacs, ASPF, ACL, FILTER, IKE, IPSec, ADVPN, L2TP, NAT/NAPT, PKI, RSA, SSH, URPF, GRE, ARP attack prevention, EAD, VxLAN
MPLS	Protocols: LDP, Static LSP; L3VPN/L2VPN capabilities; MPLS TE, RSVP TE
Reliability	Support VRRP/VRRPv3, bandwidth/user-based load balancing/backup, NQA co-routing linkage, interface backup
Management and maintenance	WEB management, cloud platform remote management, SNMP, SYSLOG, RMON, command line management, dual image, protocol testing, multiple login methods

Performance Highlights

Cloud Simplified Management Platform

Enterprises can enjoy professional network management and operation services without building dedicated management servers and software, significantly reducing management complexity and improving operational experience.

Superior Business Concurrency Processing

Advanced network communication processor with H3C software/hardware technology
Forwarding performance: MSR860-6EI-XS: 200Kpps | MSR860-6HI-XS: 300Kpps
NAT sessions: 250,000
Recommended machine capacity: MSR860-6EI-XS: 150-250 | MSR860-6HI-XS: 250-350

Refined Flow Control Capabilities

Identification and control of nearly 1,000 common applications (IM, streaming media, stock trading, games, P2P)
URL filtering, website blacklist/whitelist, fuzzy keyword matching
Asymmetric link load sharing and intelligent traffic balancing
Bandwidth ratio, user/user group, and service/application-based load sharing

Rich Network Security Features

Local PPPoE authentication, portal authentication access control
Diverse firewall functions: packet filtering, stateful, domain-based
Comprehensive anti-attack protection: ARP attacks, single-packet attacks, scanning attacks, flood attacks
WAN-based Endpoint Access Defense (EAD)

Complete VPN Network Capabilities

Comprehensive VPN technologies: IPsec, L2TP, GRE, ADVPN, SSL, GDVPN
IPSec over GRE for dynamic routing between branches and headquarters
L2TP over IPSec for secure client access
GRE over IPSec for branch networks with dynamic/private addresses
ADVPN for flexible branch-to-branch and branch-to-headquarters VPN management
GDVPN for centralized key and security policy management
SSL VPN for browser-based secure internal resource access
