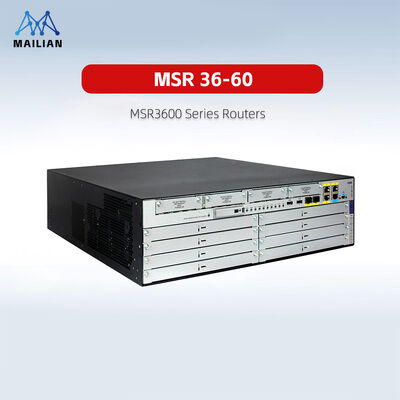

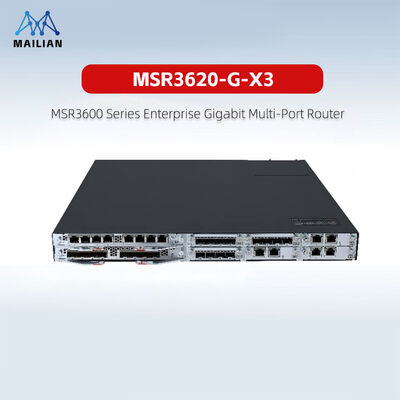

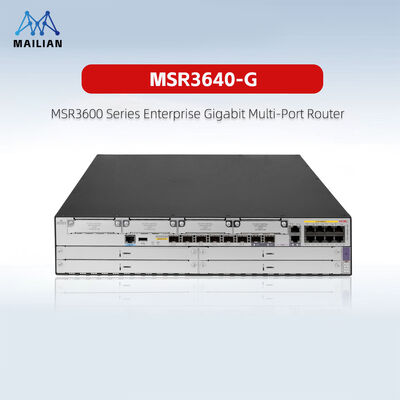

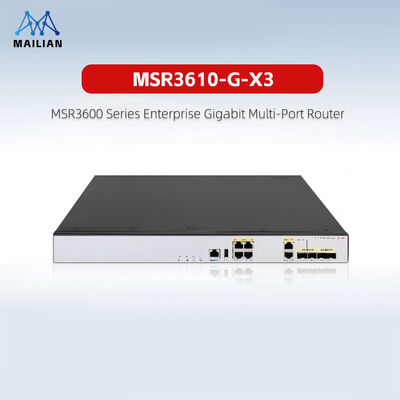

H3C MSR3600-3 Series Network Router offering flexible deployment options robust security frameworks and support for multiple network topologies

Advanced Technical Support

•  Adopts H3C mature Comware network operating system, featuring intelligent service scheduling and management mechanisms, loose coupling of service modules, as well as dynamic loading of processes and patches.
•  Equipped with high-performance multi-core CPUs and non-blocking switching architecture, which greatly enhances multi-service concurrent processing capability.
•  Integrated routing and switching fabric technology separates routing and switching planes to deliver high-speed transmission.
•  Built-in diversified service acceleration engines, including data encryption engine and voice DSP processing engine.

Comprehensive SDN Capabilities

•  Supports Telemetry, Netconf and other management & control protocols, compatible with H3C AD-WAN controllers and third-party controllers, enabling bulk delivery of SRv6 Policy tunnels via SDN controllers.
•  Supports Segment Routing, VXLAN, EVPN and other forwarding services with flexible forwarding models to meet diverse networking requirements.
•  Zero-configuration deployment via URL, USB flash drive and DHCP, enabling mass, low-cost and fast network commissioning.
•  Built-in DPI application identification for precise traffic identification, realizing visualized, customizable and flexible network traffic scheduling.
•  Fully compatible with IPv6+ and SRv6 functions: SRv6 BE, SRv6 TE Policy, EVPN L3VPN/L2VPN over SRv6/SRv6 TE Policy, SRv6 Policy traffic statistics, SRv6 TI-LFA FRR, linkage between SRv6 TE Policy and SBFD, EVPN E-tree over SRv6, consistent forward and reverse paths of bidirectional SRv6 Policy tunnels, SRv6 end-node protection, APN6, etc.
•  Supports Kbps-level sub-interface slicing and 10G FlexE fine-grained slicing down to 10 Mbps, ensuring isolated transmission and bandwidth guarantee for core network services.
•  Supports WAN optimization features including Web Cache, TFO, LZ and DRE to cut transmission costs and optimize user application experience.

Powerful Security Features

•  Supports quintuple-based packet filtering, ASPF stateful filtering, MAC address filtering, URL filtering, antivirus protection, APR, domain-based firewall and IPS functions.
•  Diverse VPN technologies: IPsec, L2TP, GRE, ADVPN, GDVPN, MPLS VPN, and flexible combination of multiple VPN modes.
•  Terminal access security: 802.1X/Portal authentication, EAD security inspection authentication and terminal MAC address authentication.
•  DDoS attack defense against SYN flood, ACK flood, RST flood, UDP flood and other common flood attacks.
•  Role-based access control for device management, enabling flexible resource allocation and hierarchical permission management.
•  Control plane traffic restriction, supporting traffic control and filtering based on standard and custom protocol packets.

Refined Service Control

•  Achieves application-level traffic speed limit, bandwidth guarantee and traffic filtering via precise identification and refined control, and guides network optimization through detailed traffic statistics.
•  Supports ECMP equal-cost link load balancing and UCMP unequal-cost link load balancing; UCMP implements load distribution based on link bandwidth ratio.

Intelligent Network Management

•  Multiple management modes available: Telnet/SSH, SNMP, TR069, Netconf, etc.
•  Embedded EAA automation architecture with TCL and Python script programming capabilities, enabling real-time  monitoring of internal system hardware and software status and automatic script execution upon specified events.

High Reliability

•  Millisecond-level BFD fast link fault detection, linked with static routes, dynamic routing protocols   (RIP/OSPF/BGP/ISIS), VRRP and interface backup.
•  NQA intelligent network service quality detection, supporting linkage with static routes, VRRP and interface backup.
•  Supports multi-device redundancy backup and load balancing via VRRP/VRRPE.
•  Hot-swappable service interface cards.

Network Virtualization

•  Pioneers IRF2 (Intelligent Resilient Framework 2) on WAN devices, virtualizing two physical devices into one logical unit to reduce networking complexity, cut O&M costs and improve link & device utilization efficiency.
•  Cross-device Ethernet link aggregation realizes load balancing and mutual backup of multiple uplinks, boosting overall network reliability and link resource utilization.

Eco-friendly Design

•  Compliant with RoHS environmental protection standards.
•  Optimized air duct structure for higher space utilization.
•  Multi-level fan speed regulation system automatically adjusts fan speed according to internal temperature, lowering   operating noise and power consumption.
