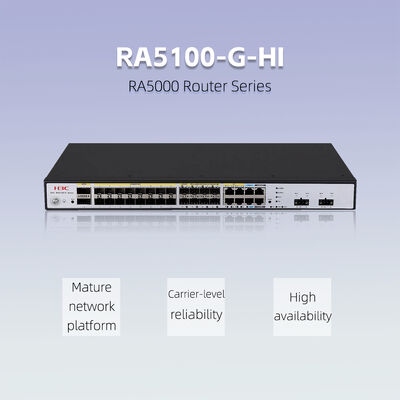

H3C RA5100-G-HI Carrier-Grade 5G IPRAN Access Router with Dual AC/DC Power Input, Wire-Speed 10GE Aggregation, and Level-8 Aseismic Grade

H3C RA5100-G-HI Carrier-Grade 5G IPRAN Access Router with Dual AC/DC Power Input, Wire-Speed 10GE Aggregation, and Level-8 Aseismic Grade

Brand Name: H3C
Model Number: RA5100-G
MOQ: 1
Price: depending on order quantity and specific model
Payment Terms: T/T
Supply Ability: Up to 30 days
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE/FCC/ISED/VCCI/RCM/CCC
Document:
H3C RA5000 Router Series Da...et.pdf
Switching Capacity:
1.24Tbps
Forwarding Performance:
590Mpps
Fixed Interface:
2*100GE/50GE/40GE+16*25GE/10GE/GE +8*GEF/FEF+4*GE+8*GEF(CSFP)
RIB V4/v6:
1M/1M
MAC:
96K
AC Power Supply:
100-240Vac, 50/60Hz, 3A Or DC 240V/2A
Aseismic Grade:
Level-8
Operating Temperature:
-20-60ºC
Frame Height (U Height):
1RU
Packaging Details:
See the hardware specification sheet for details based on the specific model.
Supply Ability:
Up to 30 days
Highlight:

H3C RA5100-G-HI 5G IPRAN router

,

Carrier-grade router with dual AC/DC power

,

5G router with wire-speed 10GE aggregation

Product Description
H3C RA5100-G-HI(DC/AC) Carrier-Grade 5G IPRAN Access Router
Dual AC/DC Power Input, Wire-Speed 10GE Aggregation for Operator Backhaul & Enterprise Private Network
The H3C RA5000 series represents high-performance integrated access routers specifically designed for 5G network backhaul scenarios. These routers meet the sustainable development needs of operators and large enterprise dedicated networks, helping improve network bandwidth, deployment efficiency, and reduce operational costs.
5G Network Characteristics
  • High-speed: Maximum downlink bandwidth up to 10 Gbps (50-100x 4G networks), supporting 4K and VR media transmission
  • Large capacity: Utilizes high-frequency spectrum resources and massive MIMO technology to serve more terminals simultaneously
  • Low latency: Network delay as low as 1 millisecond, critical for autonomous driving, emergency response, and industrial control
Hardware Specifications
Item RA5100-G(DC/AC) RA5100-G-HI(DC/AC) RA5300(DC/AC)
Switching capacity144Gbps1.24Tbps1.6Tbps
Forwarding performance214Mpps590Mpps590Mpps
Master controlCentralizedCentralized1:1 redundancy
Fixed interface6*10GE/GE+8*GEF/FEF+4*GE2*100GE/50GE/40GE+16*25GE/10GE/GE +8*GEF/FEF+4*GE+8*GEF(CSFP)N/A
RIB v4/v61M/1M1M/1M1M/1M
FIB v4/v61M/1M1M/1M1M/1M
MAC96K96K96K
Reset key111
HRIC slotN/AN/AAC: 7/DC: 8
Network management interface1GE/FE1GE/FE1GE/FE
ALMI/ALMO1(RJ45, 3 in 1 out)1(RJ45, 3 in 1 out)1(RJ45, 3 in 1 out)
TOD1(RJ45)1(RJ45)1(RJ45)
CLK1(RJ45)1(RJ45)1(RJ45)
Redundant power supply1+1 redundancy1+1 redundancy1+1 redundancy (pluggable)
DC power supply-48 ~ -60V-48 ~ -60V-48 ~ -60V
AC power supply100-240Vac, 50/60Hz, 3A or DC 240V/2A100-240Vac, 50/60Hz, 3A or DC 240V/2A200~240V/100-127VAC dual live wire, 50/60Hz, 10-6A or DC 240V/5A
Fan frame1(2*Fans)1(3*Fans)1 (pluggable)
Frame height (U height)1RU1RU3.5RU
Outward size (W * D * H, mm)440*205*44440*205*44440*220*163.5
Aseismic gradelevel-8level-8level-8
Operating temperature-20-60ºC-20-60ºC-20-60ºC
Operational altitude5000m5000m5000m
Ambient relative humidity5~95%, non-condensing5~95%, non-condensing5~95%, non-condensing
Software Specifications
Item Specification
Layer 2 protocolSupport Ethernet, Ethernet II, VLAN, 802.1p, 802.1Q, LLDP, QinQ, 802.3d (STP), 802.3w (RSTP), 802.3s (MSTP), IEEE 802.3ad (link aggregation), Port mirroring, IEEE 802.3ah OAM, DHCP Snooping, IGMP/MLD Snooping
Application of IPSupport Eth-Trunk Support FlexE Network Slicing Support Ping, Trace Support DHCP Server, DHCP Relay, DHCP Client Support DNS client, DNS Proxy Support NTP, SNTP
IPv4 routing and multicastStatic routing Routing Policy Dynamic routing protocols: OSPFv2, BGP, IS-IS ECMP (Equivalent Multipath) Multicast routing protocols: IGMPV1/V2/V3, PIM-DM, PIM-SM
IPv6 routing and multicastStatic routing Routing Policy Support IPv4 and IPv6 dual stack Dynamic routing protocols: OSPFv3, IS-ISv6, BGP4+ Support Ipv6 ND, Ipv6 PMTU, Ipv6 FIB, Ipv6 ACL,6PE IPv6 Multicast Protocol: MLD V1/V2, PIM-DM, PIM-SM
QoSSupport LR Support CAR (Committed Access Rate) Support FIFO, SP, WFQ Support GTS (Generic Traffic Shaping) Support HQoS
SecurityLocal Authentication, RBAC, Radius, Tacacs ACL, FILTER PKI, SSH, URPF Support ARP Attack Prevention Control Plane Anti-Attack Characteristic
MPLSSupport LDP Support MPLS L2/L3 VPN, MPLS TE, MPLS RSVP-TE, MPLS TE Hot-standby backup Support Segment Routing Support EVPN Support IPv6 MPLS L3VPN
SDN technologySupport EVPN Support network information collection protocols such as BGP-LS Support Netconf and YANG protocols Support MPLS SR and SRv6 Support Telemetry protocol Support SRv6 Policy function for SRv6 BE failover Support SRv6 Policy optimization based on delay/bandwidth/packet loss rate
Network slicingSupport FlexE network slicing Support sub-interface slicing Support network slicing by SliceID
ReliabilitySupport MPLS L2VPN FRR, MPLS L3VPN FRR, OSPF/ISIS FRR, PW redundancy, LFA Support BFD for ISIS, OSPF, BGP, PW, LDP Support LFA, LSP (1:1) tunnel protection, PW Redundancy service protection Support VRRP, VRRPv3 Supporting load balance and backup Support GR Support NSR Supports iFIT (in-situ Flow Information Telemetry) for real-time network quality detection and visualized management
OAMSupport BFD OA Support Y.1731, RFC2544, TWAMP Light, Y.1564
Clock synchronizationSupport SyncE Support 1588V2 Support BMC (Best Master Clock) algorithm
Management and maintenanceSupport DCN Operator Network Management Automation Support SNMP V1/V2c/V3, NETCONF, MIB, SYSLOG, RMON Support Telemetry Support for Dying Gasp Support command line management, file system management Support Console/Telnet/SSH and other management methods Support EAA (Embedded Automation Architecture)
Key Features
Carrier-Grade Reliability
Support for abundant reliability characteristics ensures uninterrupted network operation with millisecond-level switching capabilities and comprehensive fault detection mechanisms.
High Precision Clock Synchronization
Achieves nanosecond-level time synchronization through SyncE + PTP, supporting G.8275.1 compliance and BMC algorithm for optimal clock source selection.
Comprehensive OAM Capabilities
Hardware coprocessor-enabled detection protocols provide millisecond-level accuracy for network quality monitoring across 10GE, 25GE, 50GE, and 100GE links.
  • Dual master control, fan redundancy, power redundancy (RA5300), supporting AC and DC power
  • Professional integrated business processing engine with line-speed processing capabilities
  • Support for GE, 10GE, 25GE, 50GE, 100GE interface types
  • Comprehensive MPLS L2/L3 VPN, MPLS TE, Segment Routing, EVPN, FlexE features
  • Advanced clock synchronization with ToD+1PPS and BITS clock interfaces
  • Hardware coprocessor ensuring nanosecond-level clock accuracy
  • Comprehensive OAM functions including BFD, Y.1731, RFC2544, TWAMP Light, Y.1564
  • Support for SR/SRv6, iFIT, EVPN, and Telemetry advanced features
  • AD-WAN backbone solution integration with H3C controllers
  • Multiple network slicing technologies with FlexE slicing at 10Mbps level
  • 220mm depth design for base station cabinet deployment
  • Operating temperature range: -20ºC to 60ºC
  • Continuous IPv6 evolution capability
