| Brand Name: | H3C |
| Model Number: | H3C MSR2600-XS series routers |
| MOQ: | 1 |
| Price: | Subject to the specific model and configuration |
| Payment Terms: | T/T |
The MSR2600-XS series routers utilize industry-leading high-performance multi-core processors and H3C's advanced software and hardware design technology, delivering superior service forwarding capabilities and exceptional network experience. These routers integrate routing, switching, security, and wireless features to meet the flexible and integrated networking requirements of enterprises.

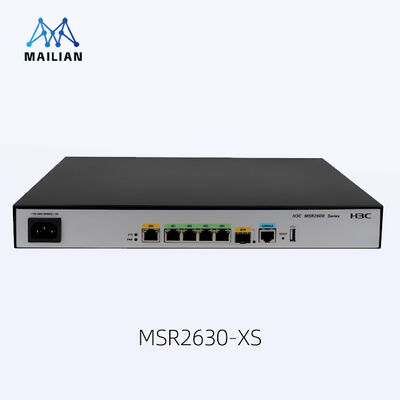

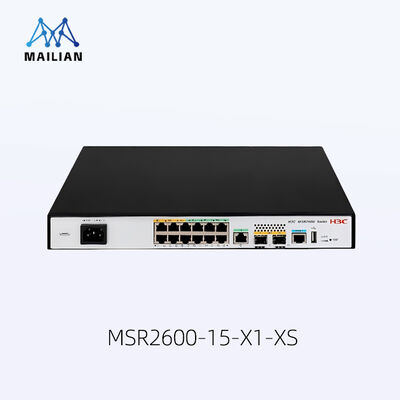

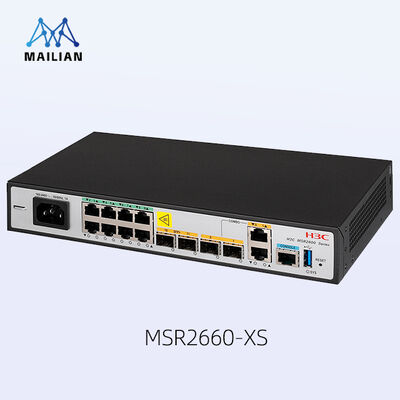

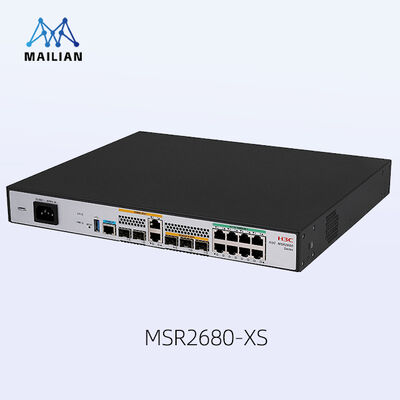

| Properties | MSR2680-XS | MSR2660-XS | MSR2600-15-X1-XS | MSR2630-XS |
|---|---|---|---|---|
| Applicable bandwidth | 6Gbps | 4Gbps | 2Gbps | 1Gbps |
| Firewall performance | 6Gbps | 4Gbps | 2Gbps | 1Gbps |
| Encryption performance | 4Gbps | 2Gbps | 800Mbps | 400Mbps |
| Forwarding performance | 35Mpps | 9Mpps | 3Mpps | 2Mpps |
| System switching capacity | 105Gbps | 60Gbps | 52Gbps | 24Gbps |
| IPSec VPN tunnels | 1000 | 128 | 128 | 128 |
| NAT sessions | 1 million | 500,000 | 250,000 | 250,000 |
| Memory | 4GB | 2GB | 1GB | 1GB |
| Flash | 4GB | 4GB | 512MB | 256MB |
| USB | 1×USB3.0/2.0 | 1×USB3.0/2.0 | 1×USB2.0 | 1×USB2.0 |
| WAN Ethernet | 3×10GE(SFP+)+2×GE Combo | 2×10GE(SFP+)+2×GE Combo | 2×GE(SFP)+5×GE | 1×GE+1×GE(SFP) |
| LAN Ethernet | 8×GE (4 switchable layer 3 modes) | 8×GE (4 switchable layer 3 modes) | 8×GE electric (switchable layer 3 mode) | 4×GE Electric |
| SIC slots | 2 | / | 2 | 2 |
| Max power consumption | 54W | 36W | 36W | 30W |
| Dimensions (W×D×H, mm) | 360×300×44.2mm | 266×161×43.6mm | 360×300×44.2mm | 360×300×44.2mm |
| Properties | Characteristics |
|---|---|
| Layer 2 Protocols | Ethernet, Ethernet II, VLAN, 802.3x, 802.1p, 802.1Q, 802.1x, STP(802.1D), RSTP(802.1w), MSTP(802.1s), PPP, PPPoE Client/Server, HDLC, FR, DDR, Modem |
| IP Services | TCP, UDP, IP Option, IP Unnumber, policy routing, Netstream, sFlow, ECMP, UCMP |
| IP Applications | Ping, Trace, ICMP, DHCP Server/Relay/Client, DNS client/Proxy, DDNS, UDP Helper, NTP, SNTP |
| IPv4 Routing | Static routing, RIPv1/v2, OSPFv2, BGP, IS-IS, routing iteration, routing strategy, IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP |
| IPv6 | IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, IPv6 tunnel, 6PE, DS-LITE; IPv6 tunneling technologies; Static routing; RIPng, OSPFv3, IS-ISv6, BGP4+; MLD V1/V2, PIM-DM, PIM-SM |
| QoS | LR, Port-Based Mirroring, Port Trust Mode, Port Priority, CAR, FIFO, WFQ, CBQ, GTS, traffic classification |
| Wireless Controller (AC) | AP management, WLAN access, user security, access authentication, roaming |
| 4G/5G | Extended 4G/5G access, NSA/SA 5G NR, TDD/FDD LTE, WCDMA/HSPA+ networks |
| Security Features | PORTAL, 802.1x, RBAC, Radius, Tacacs+, ASPF, ACL, FILTER, domain-based firewall, connection limit, IPS, IKE/IPSec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPN, NAT/NAPT, PKI, RSA, URPF, DDoS attack prevention, ARP attack prevention, URL filtering, EAD endpoint defense, DPI deep packet recognition, National Secret SM1/2/3/4 algorithms |
| MPLS | LDP, Static LSP, L3VPN, L2VPN, MPLS TE, RSVP TE |
| Reliability | VRRP, VRRPv3, multi-link load sharing and backup, NQA co-routing, VRRP, interface backup linkage |
| Management & Maintenance | SNMP V1/V2c/V3, MIB, SYSLOG, RMON, Telnet, SSHv1.5/2.0, FTP, EAA embedded automation architecture, command line management, file system management, dual image, NQA protocol testing |
