H3C MSR3600-XS Series Multi-Service Enterprise Router – High-Performance, 10G Uplink, VPN, Security & Centralized Management for WAN/SD-WAN

H3C MSR3600-XS Series Multi-Service Enterprise Router – High-Performance, 10G Uplink, VPN, Security & Centralized Management for WAN/SD-WAN

Brand Name: H3C
Model Number: H3C MSR3600-XS series
MOQ: 1
Price: Subject to the specific model and configuration
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Document:
H3C MSR3600-XS.pdf
Firewall Performance:
30Gbps
Encryption Performance:
10Gbps
Memory:
4GB
Fixed GE Port:
20*10GE Light + 10*GE Electricity
Power Consumption:
300W
Packaging Details:
See the hardware specification sheet for details based on the specific model.
Highlight:

H3C MSR3600-XS enterprise router

,

multi-service router with 10G uplink

,

SD-WAN router with VPN security

Product Description
H3C MSR3600-XS Series Multi-Service Enterprise Router
High-Performance, 10G Uplink, VPN, Security & Centralized Management for WAN/SD-WAN
Product Overview
The MSR3600-XS series routers utilize industry-leading high-performance multi-core processors and H3C's advanced software and hardware design technology, delivering superior service forwarding capabilities and exceptional network experience. These routers integrate routing, switching, security, and wireless features to meet the flexible and integrated networking requirements of modern enterprises.
  • Advanced network communication processor with H3C's innovative software and hardware design architecture for excellent concurrent service processing
  • Integrated routing and switching with built-in full Gigabit Ethernet switching interfaces for simplified management and reduced investment costs
  • Industry-leading H3C intelligent traffic scheduling and refined service control technology
  • Zero-configuration deployment supporting multiple methods including USB flash drives
  • Oasis Cloud centralized management for device software upgrades, automatic configuration distribution, operation monitoring, and fault alarms
Hardware Specifications

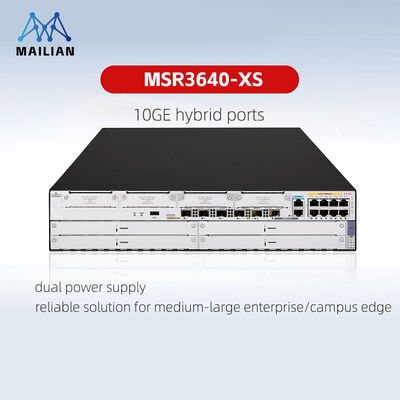

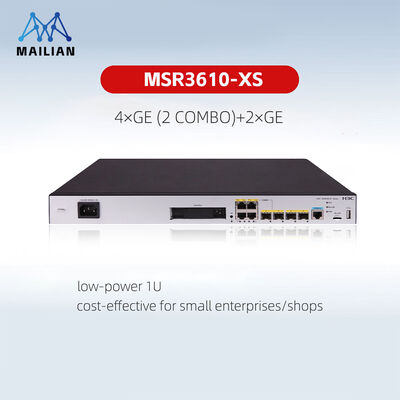

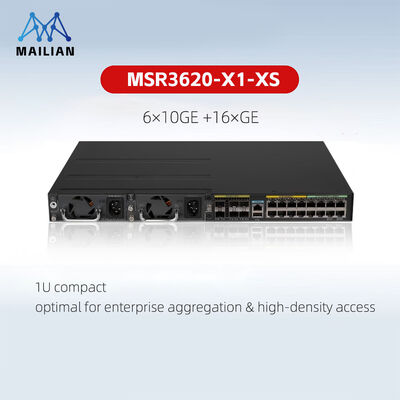

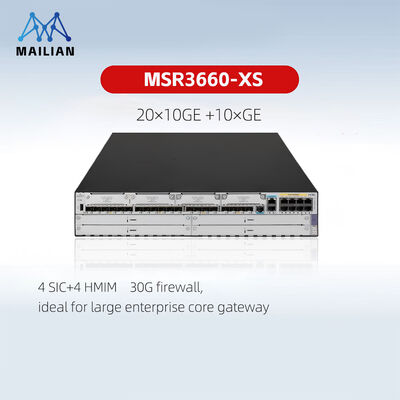

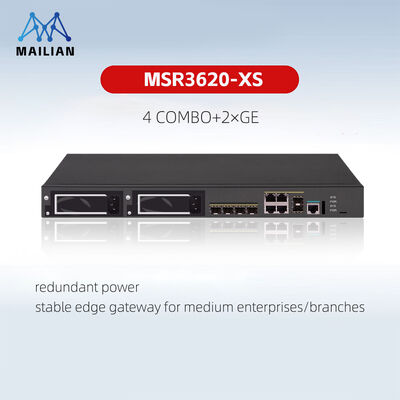

Properties MSR3660-XS MSR3640-XS MSR3620-X1-XS MSR3620-XS MSR3610-XS
Firewall Performance 30Gbps 20Gbps 20Gbps 6Gbps 4Gbps
Encryption Performance 10Gbps 8Gbps 8Gbps 4Gbps 1.9Gbps
IPSec VPN Tunnels 4000 4000 4000 512 256
Concurrent Sessions 2000 1500 1500 800 600
Memory 4GB 2GB 2GB 2GB 2GB
FLASH 1GB 1GB 1GB 512MB 512MB
Fixed GE Ports 20*10GE SFP+ + 10*GE RJ45 3*10GE SFP+ + 2*GE SFP + 1*GE Combo + 8*GE RJ45 6*10GE SFP+ + 16*GE RJ45 4*GE Combo + 2*SFP 4*GE (2 Combo) + 2*SFP
Maximum Power Consumption 300W 300W 150W 200W 54W
Rack Height 2 RU 2 RU 1 RU 1 RU 1 RU
*Note: Concurrent session numbers are comprehensive evaluation recommendations in specific environments and may vary depending on actual site conditions
Software Specifications
Properties Function
Layer 2 Protocols Ethernet, VLAN, 802.1x, STP/RSTP/MSTP, PPP, PPPoE Client/Server, HDLC, FR, DDR
IP Services TCP, UDP, policy routing, Netstream, sFlow, ECMP, UCMP
IPv4 Routing Static routing, RIPv1/v2, OSPFv2, BGP, IS-IS, multicast routing (IGMP, PIM-DM, PIM-SM)
IPv6 IPv6 ND, ACL, NAT-PT, tunneling (6to4, ISATAP), static/dynamic routing (RIPng, OSPFv3, BGP4+)
QoS LR, port mirroring, CAR, FIFO, WFQ, CBQ, GTS, traffic classification
Security Features PORTAL, 802.1x, RBAC, Radius, firewall, IPS, IPsec VPN, DDoS prevention, URL filtering, EAD
MPLS LDP, L3VPN, L2VPN, MPLS TE, RSVP TE
Reliability IRF2, VRRP, multi-link load sharing/backup, NQA, GR
Advanced Technical Support
  • H3C Comware network operating system with intelligent service scheduling and dynamic loading capabilities
  • High-performance multi-core CPU processor for enhanced multi-service concurrent processing
  • Innovative CUBE technology for improved SIC card bus bandwidth and flexible interface resource allocation
Robust Security Features
  • Packet filtering, stateful inspection, MAC/URL filtering, domain-based firewall and IPS
  • Diverse VPN technologies including IPsec, L2TP, GRE, ADVPN, and MPLS VPN
  • Terminal access security with 802.1X/Portal authentication and EAD security checks
  • DDoS attack prevention for SYN/ACK/RST/UDP flooding attacks
  • Role-based permission management and control plane traffic limiting
Refined Business Control
  • Application-layer service identification, speed limiting, bandwidth guarantee, and filtering
  • Equal and Non-Equal Link Load Balancing (ECMP/UCMP) based on bandwidth ratio
  • Load sharing based on source/destination IP addresses
High Reliability & Network Virtualization
  • BFD millisecond-level fault detection with routing and VRRP linkage
  • NQA network service quality detection with routing and interface backup linkage
  • IRF2 technology for device virtualization, reducing operational complexity
  • Cross-device link aggregation for load sharing and backup
Environmental Specifications
Operating Temperature: 0～45℃
Relative Humidity: 5~95% (non-condensing)
EMC & Safety: Compliant with international standards including FCC, ICES, VCCI, CISPR, UL, IEC, and GB 4943
