| Brand Name: | H3C |

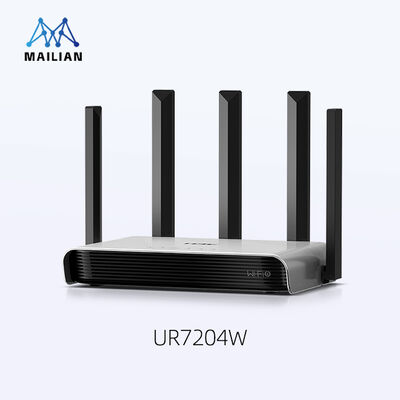

| Model Number: | H3C UR7204W |
| MOQ: | 1 |
| Price: | 77 |
| Property | UR7204W |
|---|---|
| User Capacity | 200 |
| Applicable Bandwidth | 2Gbps |
| IPSec Encryption Performance | 300Mbps |
| IPSec VPN Tunnels | 100 |
| NAT Sessions | 60,000 |
| NAT Mapping Entries | 100 |
| Managed AP Capacity | 200 |
| Memory | 512MB |
| WAN Ethernet | 1*GE |
| LAN Ethernet Ports | 4*GE (1 LAN port supports switching to WAN) |
| Wi-Fi | 2.4G+5G dual-band Wi-Fi 6, Maximum wireless speed up to 2976Mbps (2.4G: 574Mbps + 5G: 2402Mbps) |
| Antenna Gain | Built-in omnidirectional antenna (2.4GHz: 5dBi, 5GHz: 5dBi) |
| Transmit Power | 2.4G: 29dBm; 5G: 29dBm (Combined power, actual power adjusted per national regulations) |
| Reset Key | Yes |
| Maximum Power Consumption | 18W |
| AC Power | Built-in power adapter |
| Dimensions (W*D*H, mm) | 200*280*45 (Foot mat not included & antenna not included) |
| Ambient Temperature | 0–40℃ |
| Ambient Relative Humidity | 5–95% (non-condensing) |
| Property | Function |
|---|---|
| WAN Access | Supports fixed IP addresses, DHCP automatic address acquisition, PPPoE dialing, and other methods. Supports link state detection function, ICMP, DNS, NTP and other detection methods. Static routing and policy routing are supported. |
| LAN | Supports port division VLAN, MAC address learning, broadcast storm suppression, and traffic mirroring. You can configure the built-in Wi-Fi of the machine, including guest network, wireless encryption, radio frequency parameters, and management of wireless access terminals. |
| QoS | Supports limiting traffic per IP. Support restricting traffic based on user groups. Support the green channel function. |
| Security Features | You can define firewall filtering policies based on the source destination address and port. Supports MAC address filtering and MAC address blacklist and whitelist. Supports HTTP and HTTPS protocol URL filtering, website blacklist and whitelist, and fuzzy keyword matching. Support HTTP download file filtering. Supports ARP scanning, ARP detection, ARP protection, and other functions. Support DDoS attack prevention and statistics including: Prevent ping of WAN ports, Prevent TCP syn scanning, Prevent TCP Stealth FIN scanning, Prevent TCP Xmas Tree scanning, Prevent TCP null scanning, Prevent UDP scanning, Land attack prevention, Smurf attack prevention, WinNuke attack prevention, Prevent Ping of Death attacks, SYN Flood attack prevention, UDP Flood Attack Prevention, ICMP Flood attack prevention, Prevent IP Spoofing, Prevent shard pack attacks, Prevent TearDrop attacks, Prevent Fraggle attacks. Support limits based on IP address and number of interface connections. Abnormal host traffic protection function is supported. Support IP address traffic statistics and ranking. Supports the identification and control of common Internet applications, such as Douyin, iQiyi, JD.com, etc., and supports filtering and speed limiting of the identified application traffic. Support multiple access authentication methods such as SMS, WeChat official account, and account (Requires gateway networking mode and cooperates with Jianyou Cloud Network Management Platform). |
| Built-in AC | Supports centralized management of H3C Xiaobei preferred series wireless APs. Supports automatic AP discovery. Supports adjusting the transmit power of APs. You can adjust the AP channel. You can assign AP addresses. Supports automatic upgrades to APs. Supports configuration synchronization of APs. Support AP disconnection detection. AP information display is supported. Supports multi-SSID configuration. Support SSID binding to different VLANs. You can restart a single AP. Support AP configuration template management. Supports wireless client status display on APs. You can view the list of AP models that are compatible with the current version. You can adjust the AP roaming sensitivity. Supports hiding APs to manage Wi-Fi. Support weak signal terminal optimization. Supports turning AP indicators on/off. Global RF switching configuration is supported. Support intelligent optimization. Supports collecting AP logs & configurations. |
| Multi-WAN Load Balancing | Load sharing based on the carrier's destination address is supported. Supports load balancing based on link bandwidth. Support load sharing based on user (IP address). Policy routing is supported for route forwarding. Supports end-to-end link detection and backup functions. |
| Network Characteristics | DHCP Server is supported. NTP Client is supported. Support DDNS (Peanut Shell, 3322.org, Tencent Cloud, Alibaba Cloud). Support UPnP. Support IPTV. IPV6 supported. Support PPPoE services. SD-WAN is supported. |
| VPN | IPSec VPN is supported. Supports 100 IPSec connections. Support AH and ESP protocols. Support IKE to automatically establish security alliances. ESP supports 3DES and AES encryption algorithms. Supports MD5 and SHA-1 verification algorithms. Supports IKE main mode and savage mode. Support NAT-T traversal. Support for configuring IPSec connection (DDNS) via domain name. Supports L2TP VPN (LAC and LNS). |
| Management and Maintenance | Support WEB management page. Support remote management of Jianyou Cloud network management platform. Support mobile management based on the "H3C Xiaobei" APP. |
