H3C UR7808 High-Performance Enterprise Router with 8Gbps Bandwidth, Built-in AC for 512 APs, and IPSec VPN Support

Brand Name:	H3C
Model Number:	H3C UR76808
MOQ:	1
Price:	700

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

H3C UR7808.pdf

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

8Gbps Enterprise Router

Built-in AC Network Router

IPSec VPN Gateway

Product Description

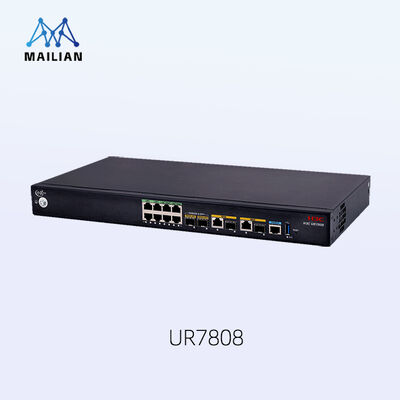

H3C UR7808 High-Performance Enterprise Router

The H3C UR7808 is a next-generation high-performance enterprise router designed for small and medium-sized businesses, government agencies, schools, hospitals, and other organizations requiring high-speed internet access. Featuring advanced ARM quad-core processing and sophisticated software architecture, it delivers superior bandwidth, VPN performance, and enhanced user experience.

Hardware Specifications

Property	UR7808 Specification
User Capacity	1000
Applicable Bandwidth	8Gbps
IPSec Encryption Performance	1.6Gbps
IPSec VPN Tunnels	100
NAT Sessions	400,000
NAT Mapping Entries	500
Managed AP Capacity	512
Memory	2GB
WAN Ethernet	2SFP+ (Convertible LAN) + 2GE Combo (Non-convertible LAN)
LAN Ethernet Ports	8*GE (4 LAN ports support switching to WAN)
USB 3.0	1
Reset Button	Yes
Maximum Power Consumption	36W
Redundant Power Supply	Supported, 2 AC
AC Power	100-240V, 50/60Hz
Dimensions (WDH)	44023044 mm (without foot pads)
Operating Temperature	0-45°C
Operating Humidity	5-95% (non-condensing)

Note: User capacity and applicable bandwidth are recommended values based on comprehensive evaluation in specific environments and may vary depending on actual site conditions.

Software Specifications

Feature Category	Capabilities
WAN Access	Fixed IP, DHCP, PPPoE; Link state detection (ICMP, DNS, NTP); Static and policy routing
LAN	Port-based VLAN, MAC address learning, broadcast storm suppression, traffic mirroring
QoS	Per-IP traffic limiting, user group-based restrictions, green channel functionality
Security Features	Firewall filtering policies, MAC address filtering, URL filtering, application identification and control, DDoS protection, ARP protection, traffic statistics
Built-in AC	Centralized management of H3C Xiaobei APs, automatic discovery, power/channel adjustment, multi-SSID, VLAN binding
Multi-WAN Load Balancing	Carrier-based, bandwidth-based, policy-based routing; Link detection and backup
Network Features	DHCP Server, NTP Client, DDNS, UPnP, IPTV, IPv6 support
VPN	IPSec VPN (100 connections), L2TP VPN (LAC/LNS modes), multiple encryption protocols
Management & Maintenance	WEB management, Jianyou Cloud platform, H3C Xiaobei mobile app

Key Features

High-Performance Business Processing

Utilizes industry-leading ARM quad-core CPU technology combined with H3C's advanced software architecture to deliver gigabit-level concurrent processing power and exceptional network performance.

400,000 NAT sessions
Recommended capacity: 1000 users

Multi-WAN Load Balancing

Default configuration includes four WAN ports with flexible expansion options supporting up to eight concurrent WAN connections for optimal bandwidth utilization and redundancy.

2*SFP+ (10G fiber) + 2*GE Combo + 4*GE convertible LAN ports
Multiple load sharing modes: carrier-based, bandwidth-based, policy routing
Built-in carrier address library with easy updates

Online Behavior Management

Comprehensive control and monitoring of internet usage with advanced application identification and filtering capabilities.

Application identification for platforms like Douyin, iQiyi, Youku, JD.com, Taobao
HTTP/HTTPS URL filtering with blacklist/whitelist and keyword matching
Flexible firewall policies and traffic rate limiting

Built-in Wireless Controller

Integrated AC functionality for seamless management of H3C Xiaobei Preferred Series wireless access points.

Centralized AP management, configuration, and upgrades
Zero-configuration deployment for plug-and-play operation
Multi-SSID support with VLAN binding

Enterprise-Grade VPN

Secure remote access and site-to-site connectivity with robust encryption and authentication.

IPSec VPN with hardware encryption engine
Support for multiple encryption algorithms (3DES, AES)
L2TP VPN in both LNS and LAC modes

Cloud Network Management

Jianyou Cloud platform enables professional network management without requiring dedicated servers or software infrastructure.

Remote WEB management via cloud platform
Reduced investment in network management infrastructure
Enhanced operational efficiency and diagnostics

Mobile App Management

H3C Xiaobei mobile application provides comprehensive network management capabilities from any location.

Available on major app stores
Network deployment, device management, and operational functions
Rich product information and troubleshooting tools
