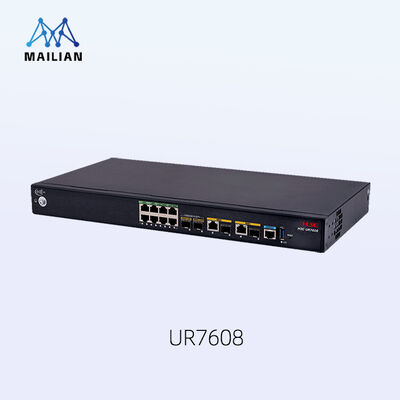

H3C UR7608 High-Performance Enterprise Router with 650-User Capacity 5Gbps Bandwidth and Built-in AC for 256 APs

Brand Name:	H3C
Model Number:	H3C UR7608
MOQ:	1
Price:	434
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

650-User Capacity Enterprise Router

5Gbps Bandwidth Network Router

Built-in AC for 256 APs H3C UR7608 Router

Product Description

H3C UR7608 High-Performance Enterprise Router

The H3C UR7608 is a next-generation high-performance enterprise router designed for small and medium-sized businesses. Featuring an advanced ARM quad-core processor and sophisticated software architecture, it delivers superior bandwidth, VPN performance, and comprehensive networking capabilities.

Hardware Specifications

Property	UR7608
User Capacity	650
Applicable Bandwidth	5Gbps
IPSec Encryption Performance	1300Mbps
IPSec VPN Tunnels	100
NAT Sessions	260,000
NAT Mapping Entries	400
Managed AP Capacity	256
Memory	1GB
WAN Ethernet	2SFP+ (Convertible LAN) + 2GE Combo (Non-convertible LAN)
LAN Ethernet Ports	8*GE (4 LAN ports support switching to WAN)
USB 3.0	1
Reset Button	Yes
Maximum Power Consumption	36W
AC Power	100-240V 50/60Hz
Dimensions (WDH)	44023044 mm (excluding foot pads)
Operating Temperature	0-45°C
Operating Humidity	5-95% (non-condensing)

Note: User capacity and applicable bandwidth are recommended values based on specific environments and may vary depending on actual site conditions.

Software Specifications

WAN Access

Supports fixed IP, DHCP, PPPoE dial-up
Link state detection (ICMP, DNS, NTP)
Static routing and policy routing

LAN Features

Port-based VLAN division
MAC address learning
Broadcast storm suppression
Traffic mirroring

QoS

Per-IP traffic limiting
User group-based traffic control
Green channel functionality

Security Features

Firewall filtering policies based on source/destination address and port
MAC address filtering with blacklist/whitelist
HTTP/HTTPS URL filtering with website blacklist/whitelist and keyword matching
HTTP download file filtering
ARP scanning, detection, and protection
Comprehensive DDoS attack prevention
IP-based connection limits
Abnormal host traffic protection
IP address traffic statistics and ranking
Application identification and control (Douyin, iQiyi, Youku, JD.com, Taobao, etc.)
Multiple access authentication methods (SMS, WeChat, account-based)

Built-in AC Controller

Centralized management of H3C Xiaobei wireless APs
Automatic AP discovery
AP transmit power and channel adjustment
AP address assignment and software upgrades
Configuration synchronization and disconnection detection
Multi-SSID configuration with VLAN binding
AP configuration template management
Wireless client status monitoring

Multi-WAN Load Balancing

Load sharing based on carrier destination address
Bandwidth-based load balancing
User (IP address) based load sharing
Policy routing for route forwarding
End-to-end link detection and backup

Network Characteristics

DHCP Server
NTP Client
DDNS (Peanut Shell & 3322.org)
UPnP
IPTV support
IPv6 support

VPN

IPSec VPN with 100 connections
AH and ESP protocols
IKE automatic security alliance establishment
3DES and AES encryption algorithms
MD5 and SHA-1 verification algorithms
IKE main mode and aggressive mode
NAT-T traversal
Domain name-based IPSec configuration (DDNS)
L2TP VPN (LAC and LNS modes)

Management and Maintenance

WEB management interface
Remote management via Jianyou Cloud platform
Mobile management via "H3C Xiaobei" APP

High-Performance Business Processing

Utilizing an industry-leading ARM quad-core CPU combined with H3C's advanced software and hardware technology, the UR7608 provides gigabit-level concurrent processing power and delivers an exceptional network experience with 260,000 NAT sessions and recommended capacity for 650 users.

Multi-WAN Load Balancing

Default configuration includes four WAN ports (2*SFP+ and 2*GE Combo) with additional LAN-to-WAN conversion supporting up to 8 total WAN ports. Features built-in carrier address library with one-click updates for optimal routing performance.

Online Behavior Control

Comprehensive application identification and control for popular services including video streaming and e-commerce platforms. Advanced URL filtering, firewall policies, and traffic rate limiting mechanisms ensure optimal network performance and security.

Built-in AC Controller

Integrated wireless controller functionality enables unified management, configuration, and upgrades of H3C Xiaobei wireless access points with zero-configuration deployment for plug-and-play operation.

Enterprise-Grade VPN

Hardware-accelerated IPSec VPN with multiple encryption algorithms facilitates secure virtual private network establishment over internet connections. Supports L2TP VPN in both LNS and LAC operational modes.

Jianyou Cloud Network Management

Professional cloud-based network management platform eliminates the need for dedicated management servers, reducing operational costs while providing comprehensive remote configuration, monitoring, and diagnostic capabilities.

Mobile APP Management

The "H3C Shell" mobile application available on major app stores provides integrated network deployment, device management, and operational maintenance functions for efficient mobile network administration.
