H3C UR7508E High-Performance Enterprise Router with 500-User Capacity 5Gbps Bandwidth and Built-in AC Controller

H3C UR7508E High-Performance Enterprise Router with 500-User Capacity 5Gbps Bandwidth and Built-in AC Controller

Brand Name: H3C
Model Number: H3C UR7508E
MOQ: 1
Price: 304
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Document:
H3C UR7508E.pdf
Packaging Details:
See the hardware specification sheet for details based on the specific model.
Highlight:

500-User Capacity Enterprise Router

,

5Gbps Bandwidth Network Router

,

Built-in AC Controller VPN Gateway

Product Description

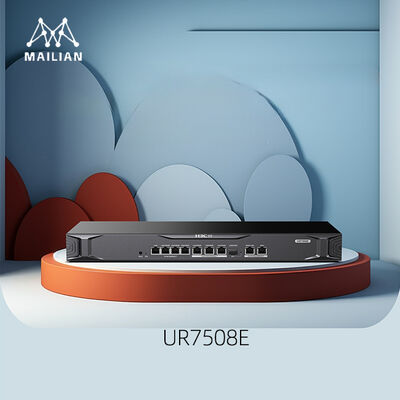

H3C UR7508E High-Performance Enterprise Router
The H3C UR7508E is a next-generation high-performance enterprise router designed for small and medium-sized businesses, featuring a triple-core processor, advanced software architecture, and delivering superior bandwidth and VPN service performance.
Key Specifications
PropertySpecification
User Capacity500
Applicable Bandwidth5Gbps
IPSec Encryption Performance1000Mbps
IPSec VPN Tunnels100
NAT Sessions200,000
NAT Mapping Entries300
Managed APs200
Memory1GB
WAN Ports2*2.5G (1 WAN port supports switching to LAN)
LAN Ports1*GE + (3*GE + 3*2.5GE + 1*SFP+, configurable as WAN)
PoE SupportNot supported
Maximum Power Consumption15W
AC Power100-240V, 50/60Hz
Dimensions (W*D*H)440*225.5*43.6 mm
Operating Temperature-10 to 55℃
Operating Humidity5-95% (non-condensing)
Note: User capacity and applicable bandwidth are recommended values based on specific environments and may vary in actual deployment.
Software Features
WAN Access
  • Supports fixed IP, DHCP, PPPoE dial-up
  • Link state detection (ICMP, DNS, NTP)
  • Static routing and policy routing
LAN Features
  • Port-based VLAN division
  • MAC address learning
  • Broadcast storm suppression
  • Traffic mirroring
Quality of Service (QoS)
  • Per-IP traffic limiting
  • User group-based traffic control
  • Green channel functionality
Security Features
  • Firewall filtering policies based on source/destination address and port
  • MAC address filtering with blacklist/whitelist
  • HTTP/HTTPS URL filtering with website blacklist/whitelist and keyword matching
  • HTTP download file filtering
  • Comprehensive DDoS attack prevention (ARP protection, SYN Flood, UDP Flood, ICMP Flood, etc.)
  • IP address traffic statistics and ranking
  • Application identification and control (Douyin, iQiyi, Youku, JD.com, Taobao, etc.)
  • Multiple access authentication methods (SMS, WeChat, account-based)
Built-in Wireless AC Controller
  • Centralized management of H3C Xiaobei wireless APs
  • Automatic AP discovery and zero-configuration deployment
  • AP transmit power and channel adjustment
  • Automatic AP upgrades and configuration synchronization
  • Multi-SSID configuration with VLAN binding
  • Wireless client status monitoring
  • Wi-Fi 6/Wi-Fi 5 switching capability
  • Intelligent optimization and weak signal terminal optimization
Multi-WAN Load Balancing
  • Dual WAN by default, supports up to 9 WAN connections
  • Load sharing based on carrier destination address, link bandwidth, or user IP
  • Policy routing for route forwarding
  • End-to-end link detection and backup
  • Built-in operator address library with easy updates
Network Characteristics
  • DHCP Server
  • NTP Client
  • DDNS (Peanut Shell & 3322.org)
  • UPnP support
  • IPTV support
  • IPv6 support
VPN Capabilities
  • IPSec VPN with 100 connections
  • Support for AH and ESP protocols
  • IKE automatic security alliance establishment
  • 3DES and AES encryption algorithms
  • MD5 and SHA-1 verification algorithms
  • NAT-T traversal support
  • L2TP VPN (LAC and LNS modes)
Management & Maintenance
  • Web-based management interface
  • Remote management via Jianyou Cloud platform
  • Mobile management via "H3C Xiaobei" APP
High-Performance Business Processing
Utilizing a high-performance triple-core CPU with H3C's advanced software and hardware technology, the UR7508E delivers ultra-gigabit concurrent processing power and exceptional network experience with 200,000 NAT sessions and 500-user recommended capacity.
Jianyou Cloud Network Management Platform
Enterprise users can access professional network management and operation services without investing in dedicated servers and software, significantly reducing management costs while improving the network operation experience. Supports remote WEB management configuration and convenient remote diagnostics.
Mobile APP Management
Available for download from major app stores as "H3C Shell," the mobile application integrates network deployment, device management, operation maintenance, and comprehensive product information to enable efficient network management.
