H3C UR7103 High-Performance Enterprise Multi-WAN Gigabit VPN Router with Integrated Firewall Security and Intelligent Network Management

Brand Name:	H3C
Model Number:	H3C UR7103
MOQ:	1
Price:	70$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

Multi-WAN Gigabit Enterprise Router

Integrated Firewall Security VPN Router

Intelligent Network Management Network Router

Product Description

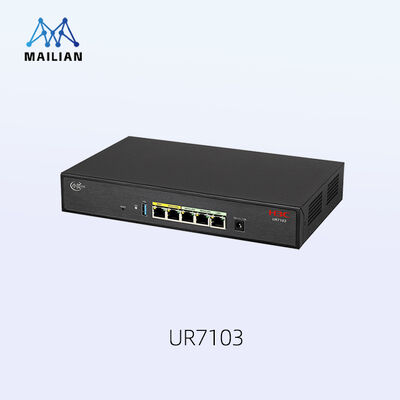

H3C UR7103 High-Performance Enterprise Multi-WAN Gigabit VPN Router

The H3C UR7103 is a next-generation high-performance enterprise router designed for small and medium-sized businesses. Featuring a dual-core professional network processor and advanced software architecture, it delivers superior wireless forwarding capabilities, bandwidth management, and VPN performance for business office and enterprise network construction.

Hardware Specifications

Property	UR7103
Recommended Capacity	100-150 users
Applicable Bandwidth	1000Mbps
IPSec Encryption Performance	100Mbps
IPSec VPN Tunnels	100
NAT Sessions	40,000
NAT Mapping Entries	100
Managed AP Capacity	32
Memory	256MB
WAN Ethernet Ports	2*GE (1 WAN port supports switching to LAN)
LAN Ethernet Ports	3*GE (2 LAN ports support switching to WAN)
USB 3.0	1
Reset Key	Yes
Maximum Power Consumption	10W
AC Power	100-240V 50/60Hz
Dimensions (WDH)	266 * 161 * 43.6 mm
Operating Temperature	0-45°C
Operating Humidity	5-95% (non-condensing)

Note: Recommended capacity and bandwidth values are based on comprehensive evaluation in specific environments and may vary based on actual site conditions.

Software Specifications

WAN Access

Supports fixed IP, DHCP, PPPoE dialing
Link state detection (ICMP, DNS, NTP)
Static routing and policy routing

LAN Features

Port-based VLAN division
MAC address learning
Broadcast storm suppression
Traffic mirroring

QoS

Per-IP traffic limiting
User group-based traffic restriction
Green channel function

Security Features

Firewall filtering policies based on source/destination address and port
MAC address filtering with blacklist/whitelist
HTTP/HTTPS URL filtering with website blacklist/whitelist and keyword matching
HTTP download file filtering
ARP scanning, detection, and protection
Comprehensive DDoS attack prevention
IP address connection limits
Abnormal host traffic protection
IP address traffic statistics and ranking
Application identification and control (Douyin, iQiyi, Youku, JD.com, Taobao, etc.)
Multiple access authentication methods (SMS, WeChat, account-based)

Built-in AC Controller

Centralized management of H3C Xiaobei wireless APs
Automatic AP discovery
AP transmit power and channel adjustment
AP address assignment and software upgrades
Configuration synchronization and disconnection detection
Multi-SSID configuration with VLAN binding
AP configuration template management
Wireless client status display

Multi-WAN Load Balancing

Load sharing based on carrier destination address
Bandwidth-based load balancing
User (IP address) based load sharing
Policy routing for route forwarding
End-to-end link detection and backup

Network Features

DHCP Server
NTP Client
DDNS (Peanut Shell & 3322.org)
UPnP
IPTV support
IPv6 support

VPN

IPSec VPN with 100 connections
AH and ESP protocols
IKE automatic security alliance establishment
3DES and AES encryption algorithms
MD5 and SHA-1 verification algorithms
IKE main mode and aggressive mode
NAT-T traversal
IPSec connection via domain name (DDNS)
L2TP VPN (LAC and LNS)

Management & Maintenance

WEB management interface
Remote management via Jianyou Cloud platform
Mobile management via "H3C Xiaobei" APP

Key Features

High-Performance Business Processing

Utilizes high-performance dual-core professional network CPU with H3C's advanced software and hardware technology to provide gigabit concurrent processing capacity and excellent network experience.

Multi-WAN Load Balancing

Supports multiple WAN concurrent access with flexible LAN-to-WAN port switching. Features built-in carrier address library with one-click updates for easy operation.

Online Behavior Control

Comprehensive application identification and control for popular platforms with flexible traffic management policies and rate limiting mechanisms.

Built-in AC Controller

Zero-configuration AP deployment with unified management, configuration, and upgrade capabilities for H3C Xiaobei wireless APs.

Enterprise-Grade VPN

Hardware VPN encryption engine delivers doubled encryption performance compared to ERG2, supporting multiple encryption algorithms for secure virtual private networks.

Jianyou Cloud Network Management Platform

Professional network management and operation services without dedicated servers, reducing investment costs while improving management experience. Supports remote WEB management and diagnostics.

Mobile APP Management

Available as "H3C Shell" on major app stores, integrating network deployment, device management, and operational functions for efficient network administration.
