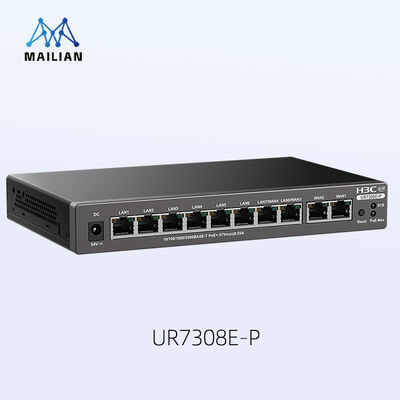

H3C UR7308E-P High-Performance Enterprise PoE Router with Triple-Core CPU Multi-WAN Load Balancing and Built-in AC Controller

H3C UR7308E-P High-Performance Enterprise PoE Router with Triple-Core CPU Multi-WAN Load Balancing and Built-in AC Controller

Brand Name: H3C
Model Number: H3C UR7308E-P
MOQ: 1
Price: 183$
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Document:
H3C UR7308E-P.pdf
Packaging Details:
See the hardware specification sheet for details based on the specific model.
Highlight:

High-Performance Triple-Core CPU Enterprise Router

,

Multi-WAN Load Balancing VPN Gateway

,

Built-in AC Controller PoE Router

Product Description
H3C UR7308E-P High-Performance Enterprise PoE Router
A new generation gigabit multi-WAN VPN gateway AC controller designed for small and medium-sized enterprises, government agencies, schools, and hospitals requiring high-speed internet access.
Key Performance Features
Utilizing high-performance triple-core processors and advanced software architecture to deliver exceptional bandwidth and VPN service performance with superior network experience.
Hardware Specifications
Property Specification
Recommended Capacity 400 users
Applicable Bandwidth 5Gbps
IPSec Encryption Performance 850Mbps
IPSec VPN Tunnels 100
NAT Sessions 120,000
NAT Mapping Entries 200
Manageable APs 200
Memory 512MB
WAN Ethernet Ports 2 × 2.5G
LAN Ethernet Ports 8 × 2.5G (2 LAN ports support switching to WAN)
PoE Support 802.3af/at standard; Up to 8 PoE ports, maximum 125W output, single port 30W
Maximum Power Consumption 140W (including PoE)
AC Power 100-240V 50/60Hz
Dimensions (W×D×H) 210 × 128.3 × 30 mm
Operating Temperature -10°C to 40°C
Operating Humidity 5% to 95% (non-condensing)
Software Features
WAN Access & Routing
  • Supports fixed IP, DHCP, PPPoE dialing
  • Link state detection (ICMP, DNS, NTP)
  • Static routing and policy routing
LAN Management
  • Port-based VLAN division
  • MAC address learning and broadcast storm suppression
  • Traffic mirroring capabilities
Quality of Service (QoS)
  • Per-IP traffic limiting
  • User group-based traffic restrictions
  • Green channel functionality
Security Features
  • Firewall filtering based on source/destination address and port
  • MAC address filtering with blacklist/whitelist
  • HTTP/HTTPS URL filtering with website blacklist/whitelist
  • Comprehensive DDoS attack prevention
  • Application identification and control (Douyin, iQiyi, Youku, JD.com, Taobao)
  • Multiple access authentication methods (SMS, WeChat, account-based)
Built-in AC Controller
  • Centralized management of H3C Xiaobei wireless APs
  • Automatic AP discovery and configuration
  • Transmit power and channel adjustment
  • Automatic AP upgrades and configuration synchronization
  • Multi-SSID configuration with VLAN binding
  • Wi-Fi 6/Wi-Fi 5 switching support
Multi-WAN Load Balancing
  • Dual WAN by default, up to 4 WAN concurrent access
  • Carrier-based destination address load sharing
  • Link bandwidth-based load balancing
  • Policy-based routing
  • End-to-end link detection and backup
VPN Capabilities
  • IPSec VPN with 100 connections
  • AH and ESP protocol support
  • 3DES and AES encryption algorithms
  • MD5 and SHA-1 verification
  • L2TP VPN (LAC and LNS modes)
  • Hardware VPN encryption engine
Management & Maintenance
  • Web management interface
  • Jianyou Cloud network management platform
  • Mobile management via "H3C Xiaobei" APP
Management Platforms
Jianyou Cloud Network Management Platform: Professional remote management and operation services without dedicated servers, reducing management costs while improving operational experience.
Mobile APP Management: Download "H3C Shell" from app stores for network deployment, device management, and efficient network operations.
