H3C UR7208 POE Series Gigabit Performance Enterprise Router with Multi-WAN Load Balancing and IPSec VPN Support

Brand Name:	H3C
Model Number:	H3C UR7208 POE Series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

Gigabit Performance Enterprise Router

Multi-WAN Load Balancing VPN Gateway

IPSec VPN Support PoE Gateway

Product Description

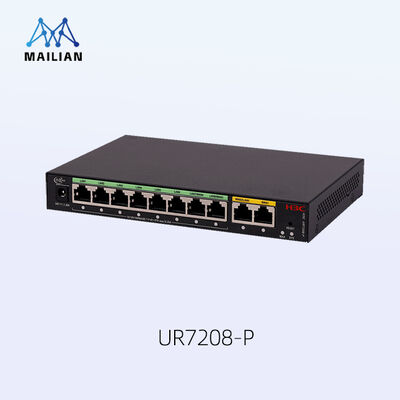

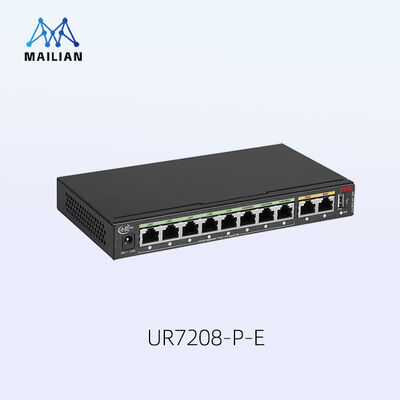

H3C UR7208 Series Gigabit Enterprise PoE Router VPN Gateway

The H3C UR7208 series represents a new generation of high-performance enterprise-level PoE gateways designed for small to medium-sized enterprises, villas, and large residential networking scenarios. Featuring high-performance ARM dual-core processors and advanced software architecture, these routers deliver superior bandwidth, VPN service performance, and an enhanced user experience in a compact form factor suitable for space-constrained environments.

Hardware Specifications

Properties	UR7208-P-E	UR7208-P
Recommended User Capacity	250	200
Applicable Bandwidth	1Gbps	1Gbps
IPSec Encryption Performance	150Mbps	100Mbps
IPSec VPN Tunnel Number	100	100
NAT Sessions	80,000	40,000
NAT Mapping Table Items	100	100
Supported APs	200	200
Memory	256MB	256MB
WAN Ethernet	2*GE	2*GE (1 WAN port supports switching to LAN)
LAN/WAN Ports	3*GE (PoE+, max 30W per port)	2*GE (PoE+, max 30W per port)
LAN Ethernet Port	5*GE (PoE+, max 30W per port)	6*GE (PoE+, max 30W per port)
USB 2.0	1	/
Reset Key	Yes	Yes
Maximum Power Consumption	120W (PoE max 110W)	80W (PoE max 75W)
AC Power	Rated Range: 100-240V 50/60Hz
Dimensions (WDH, mm)	20210528	19012527
Ambient Temperature	0-45℃	0-40℃
Ambient Relative Humidity	5-95% (non-condensing)

Note: User capacity and applicable bandwidth are recommended values based on comprehensive evaluation in specific environments and may vary based on actual site conditions.

Software Specifications

WAN Access

Supports fixed IP addresses, DHCP automatic address acquisition, and PPPoE dialing
Link state detection with ICMP, DNS, and NTP detection methods
Static routing and policy routing support

LAN Features

Port division VLAN support
MAC address learning and broadcast storm suppression
Traffic mirroring capability

QoS

Traffic limiting per IP address
User group-based traffic restrictions
Green channel function

Security Features

Firewall filtering policies based on source/destination address and port
MAC address filtering with blacklist and whitelist support
HTTP and HTTPS URL filtering with website blacklist/whitelist and keyword matching
HTTP download file filtering
ARP scanning, detection, and protection
DDoS attack prevention and statistics
Comprehensive attack prevention including Ping of Death, SYN Flood, UDP Flood, and more
Application identification and control for platforms like Douyin, iQiyi, Youku, JD.com, Taobao
Multiple access authentication methods (SMS, WeChat, account-based)

Built-in AC Controller

Centralized management of H3C Xiaobei wireless APs
Automatic AP discovery and configuration
AP transmit power and channel adjustment
AP software upgrades and configuration synchronization
Multi-SSID configuration with VLAN binding
Wireless client status monitoring

Multi-WAN Load Balancing

Load sharing based on carrier destination address
Bandwidth-based load balancing
User (IP address) based load sharing
Policy routing for route forwarding
End-to-end link detection and backup

Network Characteristics

DHCP Server support
NTP Client functionality
DDNS (Peanut Shell & 3322.org)
UPnP and IPTV support
IPv6 compatibility

VPN Capabilities

IPSec VPN with 100 connections
AH and ESP protocol support
IKE automatic security alliance establishment
3DES and AES encryption algorithms
MD5 and SHA-1 verification algorithms
NAT-T traversal support
L2TP VPN (LAC and LNS modes)

Management and Maintenance

WEB management interface
Remote management via Jianyou Cloud platform
Mobile management with H3C Xiaobei APP

Key Features

High-Performance Business Processing: Industry-leading dual-core CPU with advanced software/hardware technology provides gigabit concurrent processing capacity and excellent network experience.

Multi-WAN Load Balancing: Flexible WAN port configuration with multiple load sharing modes and built-in carrier address library.

Online Behavior Control: Comprehensive application identification, URL filtering, and firewall policies for traffic management.

Built-in AC Controller: Zero-configuration AP management with plug-and-play functionality.

Enterprise-Grade VPN: Hardware VPN encryption engine with high-speed IPSec and L2TP VPN support.

Jianyou Cloud Management: Professional remote network management without additional server investment.

Mobile APP Management: H3C Xiaobei APP for efficient network deployment and management.
