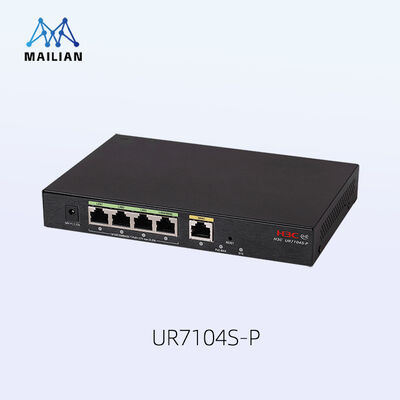

H3C UR7104S-P Gigabit Performance Enterprise Router with Multi-WAN Load Balancing and IPSec VPN Support

Brand Name:	H3C
Model Number:	H3C UR7104S-P
MOQ:	1
Price:	56$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

Gigabit Performance Enterprise Router

Multi-WAN Load Balancing VPN Gateway

IPSec VPN Support Network Router

Product Description

H3C UR7104S-P Gigabit Enterprise PoE Router VPN Gateway

The H3C UR7104S-P is a next-generation high-performance enterprise router designed for small and medium-sized businesses. Featuring a dual-core processor and advanced software architecture, it delivers superior bandwidth, VPN service performance, and enhanced user experience.

Hardware Specifications

Property	Specification
Device Capacity	100
Applicable Bandwidth	1Gbps
IPSec Encryption Performance	100Mbps
IPSec VPN Tunnels	100
NAT Sessions	40,000
NAT Mapping Entries	100
Managed APs	32
Memory	256MB
WAN Ethernet	1*GE
LAN Ethernet Ports	4*GE (1 LAN port supports switching to WAN, 58W PoE+)
PoE Support	802.3af/at standard; Up to 4 LAN ports as PoE ports, max 58W output, single port 30W
Reset Key	1
Maximum Power Consumption	63W (including PoE)
AC Power	External power adapter, 100-240V 50/60Hz
Dimensions (WDH)	19012527 mm
Operating Temperature	0-40℃
Operating Humidity	5-95% (non-condensing)

Note: Device capacity and applicable bandwidth are recommended values for specific environments and may vary based on actual site conditions.

Software Specifications

WAN Access

Fixed IP, DHCP, PPPoE dialing
Link state detection (ICMP, DNS, NTP)
Static routing and policy routing

LAN Features

Port-based VLAN division
MAC address learning
Broadcast storm suppression
Traffic mirroring

QoS

Per-IP traffic limiting
User group-based traffic restriction
Green channel function

Security Features

Firewall filtering policies based on source/destination address and port
MAC address filtering with blacklist/whitelist
HTTP/HTTPS URL filtering with website blacklist/whitelist and keyword matching
HTTP download file filtering
ARP scanning, detection, and protection
Comprehensive DDoS attack prevention
IP address traffic statistics and ranking
Internet application identification and control (Douyin, iQiyi, Youku, JD.com, Taobao)
Multiple access authentication methods (SMS, WeChat, account)

Built-in AC Controller

Centralized management of H3C Xiaobei wireless APs
Automatic AP discovery and configuration
AP transmit power and channel adjustment
Automatic AP upgrades and configuration synchronization
Multi-SSID configuration with VLAN binding
Wireless client status monitoring
AP roaming sensitivity adjustment
Wi-Fi 6/Wi-Fi 5 switching
Intelligent optimization and weak signal terminal optimization

Multi-WAN Load Balancing

Load sharing based on carrier destination address
Bandwidth-based load balancing
User (IP address) based load sharing
Policy routing for route forwarding
End-to-end link detection and backup

Network Features

DHCP Server
NTP Client
DDNS (Peanut Shell & 3322.org)
UPnP support
IPTV support
IPv6 support

VPN

IPSec VPN with 100 connections
AH and ESP protocols
IKE automatic security alliance establishment
3DES and AES encryption algorithms
MD5 and SHA-1 verification algorithms
NAT-T traversal support
L2TP VPN (LAC and LNS modes)

Management & Maintenance

WEB management interface
Remote management via Jianyou Cloud platform
Mobile management via "H3C Xiaobei" APP

Key Features

High-Performance Business Processing

Utilizes high-performance dual-core CPU with H3C's advanced software and hardware technology to provide gigabit concurrent processing capacity and excellent network experience. Supports 40,000 NAT sessions with recommended capacity of 100 devices.

Multi-WAN Load Balancing

Default single WAN with support for dual WAN concurrent access. Multiple load sharing modes including carrier-based destination address, bandwidth-based, and policy routing. Built-in operator address library with easy updates.

Online Behavior Control

Comprehensive identification and control of common Internet applications. Advanced URL filtering with blacklist/whitelist and keyword matching. Flexible firewall policies and IP-based traffic rate limiting.

Built-in AC Controller

Integrated AC functionality for unified management of H3C Xiaobei wireless APs. Zero-configuration deployment with plug-and-play operation.

Enterprise-Grade VPN

Hardware VPN encryption engine for high-speed IPSec VPN with multiple encryption algorithms. Supports L2TP VPN in both LNS and LAC modes for secure enterprise networking.

Jianyou Cloud Network Management Platform

Professional remote management and operation services without requiring dedicated servers. Reduces management costs while improving network operation and maintenance experience. Supports remote WEB management and diagnostics.

Mobile APP Management

Available as "H3C Shell" on major app stores. Comprehensive mobile management including network deployment, device management, and operational maintenance with rich product information for efficient network administration.
