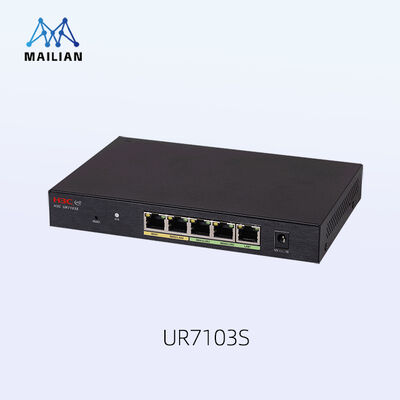

H3C UR7103S Gigabit Enterprise Router with Multi-WAN Load Balancing and IPSec VPN Support

H3C UR7103S Gigabit Enterprise Router with Multi-WAN Load Balancing and IPSec VPN Support

Brand Name: H3C
Model Number: H3C UR7103S
MOQ: 1
Price: 43$
Detail Information
Product Description
Detail Information
Place of Origin:
China
Document:
H3C UR7103S.pdf
Packaging Details:
See the hardware specification sheet for details based on the specific model.
Highlight:

Gigabit Performance Enterprise Router

,

Multi-WAN Load Balancing VPN Gateway

,

IPSec VPN Support Network Router

Product Description
H3C UR7103S Gigabit Enterprise Router VPN Gateway
AC Management Multi-WAN Load Balance
The H3C UR7103S is a new generation high-performance enterprise router designed for small and medium-sized businesses. Featuring a high-performance dual-core processor and advanced software architecture, it delivers superior bandwidth, VPN service performance, and enhanced user experience.
Hardware Specifications
PropertiesUR7103S
Recommended Capacity100
Applicable Bandwidth1000Mbps
IPSec Encryption Performance100Mbps
IPSec VPN Tunnel Number100
Number of NAT Sessions40,000
NAT Mapping Table Items100
Manageable Xiaobei APs32
Memory256MB
WAN Ethernet2*GE (1 WAN port supports switching to LAN)
LAN Ethernet Port3*GE (2 LAN ports support switching to WAN)
Reset KeyYes
Maximum Power Consumption12W
AC PowerRated Range: 100～240V 50/60Hz
Dimensions (W*D*H, mm)190 x 125 x 27
Ambient Temperature0～45℃
Ambient Relative Humidity5~95% (non-condensing)
Note: The number of bands and applicable bandwidth are recommended values for comprehensive evaluation in specific environments, and may vary based on the actual site environment.
Software Specifications
PropertiesFunction
WAN AccessSupports fixed IP addresses, DHCP automatic address acquisition, PPPoE dialing; Link state detection (ICMP, DNS, NTP); Static routing and policy routing
LANPort division VLAN, MAC address learning, broadcast storm suppression, traffic mirroring
QoSTraffic limiting per IP and user groups; Green channel function
Safety FeaturesFirewall filtering policies based on source/destination address and port; MAC address filtering; URL filtering; ARP protection; DDoS attack prevention; Application identification and control; Multiple access authentication methods
Built-in ACCentralized management of H3C Xiaobei wireless APs; Automatic AP discovery; Power and channel adjustment; Multi-SSID configuration; Wireless client management; Wi-Fi 6/Wi-Fi 5 switching
Multi-WAN Load BalancingLoad sharing based on carrier destination address, link bandwidth, and user IP; Policy routing; Link detection and backup
Network CharacteristicsDHCP Server; NTP Client; DDNS; UPnP; IPTV; IPv6
VPNIPSec VPN (100 connections); L2TP VPN (LAC and LNS); Multiple encryption algorithms; NAT-T traversal
Management and MaintenanceWEB management page; Remote management via Jianyou Cloud platform; Mobile management via "H3C Xiaobei" APP
Key Features
High-Performance Business Processing Capabilities
Utilizes high-performance dual-core professional network CPU with H3C's advanced software and hardware technology to provide gigabit service concurrent processing capacity and excellent network experience.
Multi-WAN Load Balancing
Supports multiple WAN concurrent access with flexible LAN-to-WAN port switching. Features multiple load sharing modes including operator-based destination address, WAN link bandwidth-based, and policy-based routing. Includes built-in operator address library with easy updates.
Online Behavior Control
Identifies and controls common Internet applications (Douyin, iQiyi, JD.com, etc.). Supports HTTP/HTTPS URL filtering with website blacklist/whitelist and fuzzy keyword matching. Flexible firewall policies with IP-based traffic rate limiting and NAT entry limits.
Built-in AC Functionality
Unified management, configuration, and upgrade of H3C Xiaobei Preferred Series wireless APs. Features AP zero configuration for plug-and-play deployment.
Enterprise-Grade VPN Features
Comprehensive IPSec VPN support with multiple encryption algorithms for secure virtual private networks. Hardware VPN encryption engine delivers doubled performance compared to ERG2. Supports L2TP VPN in both LNS and LAC modes.
Jianyou Cloud Network Management Platform
Enables professional network management and operation without dedicated servers, reducing investment costs while improving management experience. Remote WEB management access for service configuration and diagnostics.
Mobile APP Management
Available as "Xiaobei APP" in major app stores. Integrates network deployment, device management, operation and maintenance, and product information for efficient network management.
