H3C UR-3000AX AX3000 Dual Band WiFi 6 Enterprise Router with 2Gbps Bandwidth and IPSec VPN Support

Brand Name:	H3C
Model Number:	H3C UR-3000AX
MOQ:	1
Price:	58$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

AX3000 Dual Band WiFi 6 Enterprise Router

2Gbps Bandwidth Wireless Router

IPSec VPN Support VPN Gateway

Product Description

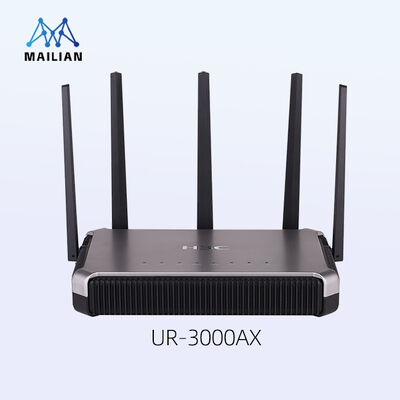

H3C UR-3000AX AX3000 Dual Band WiFi 6 Enterprise Gigabit Wireless Router VPN Gateway

The H3C UR-3000AX is a new generation high-performance enterprise router designed for small and medium-sized businesses. Featuring advanced dual-core processors and sophisticated software architecture, it delivers superior wireless forwarding capabilities with 2Gbps bandwidth and enhanced hardware specifications.

Hardware Specifications

Property	UR-3000AX
Device Capacity	150
Applicable Bandwidth	2Gbps
IPSec Encryption Performance	300Mbps
IPSec VPN Tunnel Number	100
NAT Sessions	60,000
NAT Mapping Table Items	100
Managed AP Capacity	32
Memory	512MB
WAN Ethernet	1×GE
LAN Ethernet Port	4×GE (1 LAN port supports switching to WAN)
Wi-Fi	2.4G+5G dual-band Wi-Fi6, Maximum wireless speed up to 2976Mbps (2.4G: 574Mbps + 5G: 2402Mbps)
Reset Key	Yes
Maximum Power Consumption	12W
AC Power	Rated Range: 100～240V 50/60Hz
Dimensions (W×D×H, mm)	222×156×38 (Foot mat not included & antenna not included)
Ambient Temperature	0～40℃
Ambient Relative Humidity	5~95% (non-condensing)

Note: The number of bands and applicable bandwidth are recommended values for comprehensive evaluation in specific environments, and may vary based on the actual site environment.

Software Specifications

Property	Function
WAN Access	Supports fixed IP addresses, DHCP automatic address acquisition, PPPoE dialing; Link state detection (ICMP, DNS, NTP); Static routing and policy routing
LAN	Port division VLAN, MAC address learning, broadcast storm suppression, traffic mirroring; Built-in WiFi configuration including guest network, wireless encryption, radio frequency parameters
QoS	Traffic limiting per IP and user groups; Green channel function
Security Features	Firewall filtering policies; MAC address filtering; HTTP/HTTPS URL filtering; ARP protection; DDoS attack prevention; Application identification and control; Multiple access authentication methods
Built-in AC	Centralized management of H3C Xiaobei series wireless APs; Automatic AP discovery; Configuration synchronization; Multi-SSID configuration; Wireless client management
Multi-WAN Load Balancing	Load sharing based on carrier destination address, link bandwidth, and user IP; Policy routing; Link detection and backup
Network Characteristics	DHCP Server; NTP Client; DDNS (Peanut Shell & 3322.org); UPnP; IPTV; IPv6
VPN	IPSec VPN (100 connections); L2TP VPN (LAC and LNS modes); Multiple encryption algorithms; NAT-T traversal
Management & Maintenance	WEB management page; Remote management via Jianyou Cloud platform; Mobile management via "H3C Xiaobei" APP

Key Features

Wi-Fi 6 High-Speed Wireless

2.4G+5G dual-band Wi-Fi 6 with maximum wireless rate of 2976Mbps
Intelligent antenna coverage technology with 5 external high-gain antennas
Professional green and low-carbon design with optimized energy consumption

High-Performance Business Processing

High-performance dual-core CPU with advanced software and hardware technology
Up to 2Gbps traffic concurrent processing capacity
60,000 NAT sessions with recommended capacity of 150 devices

Multi-WAN Load Balancing

5 full Gigabit ports with dual WAN concurrent access capability
Multiple WAN link load sharing modes
Built-in operator address library with easy updates

Online Behavior Control

Identification and control of common Internet applications (Douyin, iQiyi, JD.com, etc.)
HTTP/HTTPS URL filtering with website blacklist/whitelist and keyword matching
Flexible firewall policies and IP-based traffic rate limiting

Built-in AC Functionality

Unified management, configuration, and upgrade of H3C Xiaobei Preferred Series wireless APs
AP zero configuration for plug-and-play deployment

Enterprise-Grade VPN Features

IPSec VPN with multiple encryption algorithms
Hardware VPN encryption engine for high-speed performance
L2TP VPN support in both LNS and LAC modes

Jianyou Cloud Network Management Platform

Enterprises can access professional network management and operation services without building dedicated management servers and software, significantly reducing investment costs while improving network operation and maintenance management experience.

Mobile APP Management

Available through "H3C Xiaobei" app in major app stores. The mobile app integrates network deployment, device management, operation and maintenance functions, and rich product information for efficient network management.
