| Brand Name: | H3C |

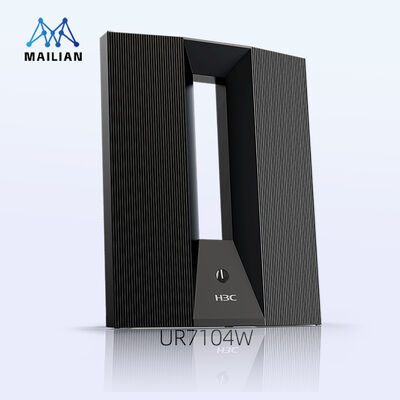

| Model Number: | H3C UR7104W |
| MOQ: | 1 |
| Price: | 32$ |
| Payment Terms: | T/T |
| Properties | UR7104W |
|---|---|
| Device Capacity | 100 |
| Applicable Bandwidth | 1Gbps |
| IPSec Encryption Performance | 300Mbps |
| IPSec VPN Tunnel Number | 100 |
| NAT Sessions | 60,000 |
| NAT Mapping Table Items | 100 |
| Managed APs | 32 |
| Memory | 512MB |
| WAN Ethernet | 1×GE |
| LAN Ethernet Port | 4×GE (1 LAN port supports switching to WAN) |
| Wi-Fi Overall Rate | 2.4G+5G dual-band Wi-Fi 6, Maximum wireless speed up to 2976Mbps (2.4G: 574Mbps + 5G: 2402Mbps) |
| Antenna Gain | Built-in omnidirectional antenna (2.4GHz: 5dBi, 5GHz: 5dBi) |
| Transmit Power | 2.4G: 29dBm; 5G: 29dBm (Combined power, actual power adjusted per national regulations) |
| Reset Key | Yes |
| Maximum Power Consumption | 18W |
| AC Power | Includes adapter DC 12V/1.5A |
| Dimensions (W×D×H, mm) | 200×250×75 (Foot mat not included & antenna not included) |
| Ambient Temperature | 0～40℃ |
| Ambient Relative Humidity | 5~95% (non-condensing) |
| Properties | Function |
|---|---|
| WAN Access | Supports fixed IP addresses, DHCP automatic address acquisition, PPPoE dialing; Link state detection (ICMP, DNS, NTP); Static routing and policy routing |
| LAN | Port division VLAN, MAC address learning, broadcast storm suppression, traffic mirroring; Configurable built-in Wi-Fi including guest network, wireless encryption, radio frequency parameters |
| QoS | Traffic limiting per IP; User group-based traffic restriction; Green channel function |
| Security Features | Firewall filtering policies; MAC address filtering (blacklist/whitelist); HTTP/HTTPS URL filtering; Website blacklist/whitelist; Fuzzy keyword matching; HTTP download file filtering; ARP protection; DDoS attack prevention; Multiple access authentication methods |
| Built-in AC | Centralized management of H3C Xiaobei preferred series APs; Automatic AP discovery; RF power/channel adjustment; AP address assignment; Configuration synchronization; Multi-SSID with VLAN binding; Wireless client management |
| Multi-WAN Load Balancing | Carrier-based destination address load sharing; Link bandwidth-based load balancing; User (IP address) load sharing; Policy routing; End-to-end link detection and backup |
| Network Characteristics | DHCP Server; NTP Client; DDNS (Peanut Shell, 3322.org, Tencent Cloud, Alibaba Cloud); UPnP; IPTV; IPv6; PPPoE services |
| VPN | IPSec VPN (100 connections); AH and ESP protocols; IKE automatic security alliances; 3DES and AES encryption; MD5 and SHA-1 verification; NAT-T traversal; L2TP VPN (LAC and LNS) |
| Management & Maintenance | WEB management page; Remote management via Jianyou Cloud platform; Mobile management via "H3C Xiaobei" APP |
