High Speed H3C 100Gbps 50Gbps Optical Transceiver Module RoHS REACH Compliant

Brand Name:	H3C
Model Number:	H3C 100G/50G Series Optical Modules
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T
Supply Ability:	About 15–45 days, depending on order quantity.

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHS, REACH, FDA

Name:

Optical Modules

Gbps:

50Gbps And 100Gbps

Package Type:

Carton/customized

Compliant:

RoHS REACH

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Supply Ability:

About 15–45 days, depending on order quantity.

Highlight:

H3C 100Gbps Optical Transceiver Module

High Speed 50Gbps Optical Module

Hot-Pluggable Fiber Optic Module

Product Description

H3C 100G/50G Series Optical Modules

H3C 100G and 50G series optical modules incorporate advanced technologies to deliver low power consumption, high-speed performance, and broad compatibility. These modules address the critical need for stable, efficient data transmission in modern network environments, supporting both 50Gbps and 100Gbps transmission rates for reliable high-bandwidth applications.

Key Advantages: Low power consumption design reduces data center energy costs • High reliability ensures consistent performance • Hot-pluggable for simplified maintenance • Compliant with RoHS, REACH, FDA standards

Core Features & Specifications

Supports 50Gbps and 100Gbps data transmission rates
100G QSFP28 to SFP28 cables enable interconnection between 100G QSFP28 ports and four 25G SFP28 ports
Hot-pluggable design simplifies installation and maintenance
Low power consumption with high reliability for continuous operation
Compliant with international standards including RoHS, REACH, and FDA
Digital diagnostic monitoring for temperature, voltage, bias current, and optical power levels

Application Scenarios

Ideal for data centers, backbone transmission networks, access networks, and high-performance computing environments requiring large-capacity data transmission.

Product Series Overview

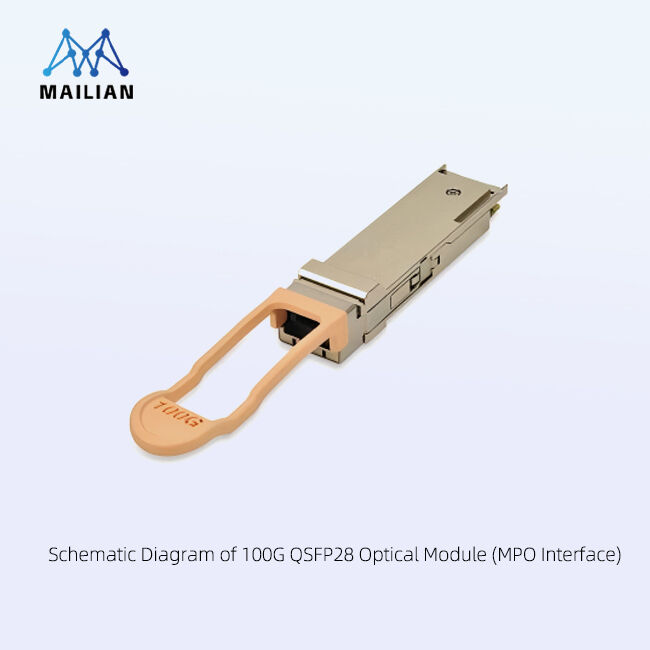

100G QSFP28 Optical Modules (MPO Interface)

Models: QSFP-100G-SR4-MM850, QSFP-100G-SR4-MM850-H, QSFP-100G-SR4-MM850-B-CM, QSFP-100G-SR4-MM850-CM, QSFP-100G-SR4-MM850-A, QSFP-100G-eSR4-MM850, QSFP-100G-PSM4-SM1310

QSFP28 packaging with MPO interface • 850nm wavelength (multi-mode fiber) supports up to 300m • QSFP-100G-PSM4-SM1310 uses 1310nm wavelength (single-mode fiber) supports up to 0.5km

100G QSFP28 Liquid Cooling Modules (MPO)

Models: QSFP-100G-SR4-MM850-Y5

QSFP28 packaging with MPO interface • Multi-mode fiber • Maximum transmission distance: 100m • Liquid cooling dedicated design

QSFP28 Optical Modules (LC Interface)

Includes 100G and 50G QSFP28 modules

QSFP28 packaging with LC interface • Supports interconnection between 100G/50G ports • Maximum transmission distance: 80km

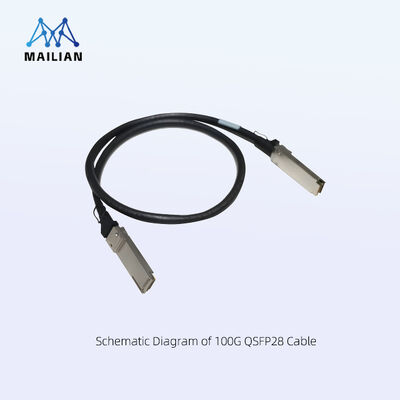

100G QSFP28 Cables

QSFP28 packaging for short-range interconnection

Available lengths: 1m, 3m, 5m • Designed for high-density short-reach applications

100G QSFP28 to SFP28 Optical Cables

QSFP28 packaging with breakout capability

Available lengths: 7m, 10m, 20m, 30m, 50m • Enables 100G to 4x25G port connections

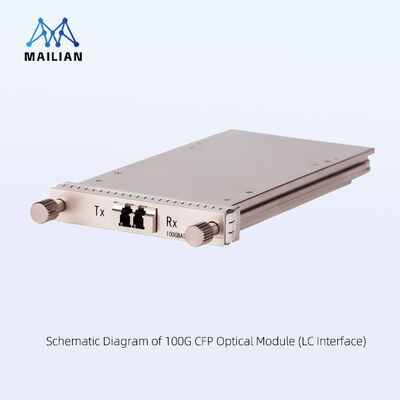

100G CFP Optical Modules

Models: CFP-100G-LR4-WDM1300-A

CFP packaging with LC interface • Supports transmission distances: 10km, 40km

100G CFP2 Optical Modules (MPO Interface)

Models: CFP2-100G-SR10-MM850

CFP2 packaging with MPO interface • 850nm wavelength with multi-mode fiber • Maximum distance: 150m

100G CFP2 Optical Modules (LC Interface)

Models: CFP2-100G-LR4-WDM1300, CFP2-100G-ER4-WDM1300

CFP2 packaging with LC interface • Single-mode fiber • Maximum transmission distance: 40km
