H3C 10G SFP+ Optical Module 10.31Gbps Transmission For High Speed Data Transfer

Brand Name:	H3C
Model Number:	H3C Ten Gigabit SFP Optical Module Series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	,T/T
Supply Ability:	Up to 15 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHS, REACH, FDA

Transmission Rate:

10.31Gbps

Industrial Operating Temperature Range:

-40°C To 85°C

Enterprise Operating Temperature Range:

0°C To 70°C

Design:

Hot-swappable

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Supply Ability:

Up to 15 days

Highlight:

H3C 10G SFP+ Optical Module

10.31Gbps Transmission SFP+ Optical Module

Sfp+ Modules For Data Transfer

Product Description

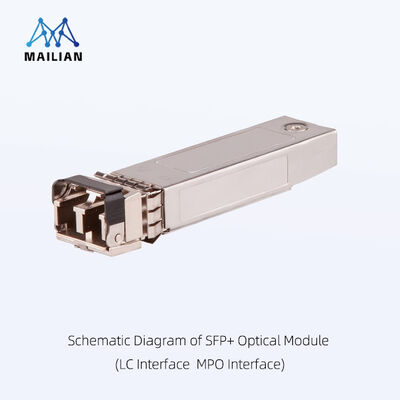

H3C Ten Gigabit SFP+ Optical Module

Advanced 10G series optical modules featuring 10.31Gbps transmission, hot-plug support, and low power consumption for stable, efficient data transmission in modern network environments.

Product Overview

H3C 10G series optical modules incorporate advanced technologies to deliver low power consumption, high-speed transmission, hot-pluggable functionality, and cost-effectiveness. These modules provide reliable support for large-capacity data transmission and high-performance computing across various application scenarios.

Key Features

Hot-swappable design for simplified maintenance
Low power consumption with high reliability for continuous operation
Compliant with RoHS, REACH, FDA, and other industry standards
Enterprise operating temperature range: 0°C to 70°C
Industrial operating temperature range: -40°C to 85°C

Available Models

Model	Description
SFP‑XG‑SX‑MM850‑D	10.31Gbps, 850nm wavelength, 300m distance, 2*LC interface
SFP‑XG‑SX‑MM850‑I	10.31Gbps, 850nm wavelength, 300m distance, 2*LC interface, -40°C to 85°C
SFP‑XG‑LX‑SM1310‑D	10.31Gbps, 1310nm wavelength, 10KM distance, 2*LC interface
SFP‑XG‑LH40‑SM1550‑D	10.31Gbps, 1550nm wavelength, 40KM distance, 2*LC interface
SFP‑XG‑LH40‑SM1550‑I	10.31Gbps, 1550nm wavelength, 40KM distance, 2*LC interface, -40°C to 85°C
SFP‑XG‑LH80‑SM1550‑D	10.31Gbps, 1550nm wavelength, 80KM distance, 2*LC interface
SFP‑XG‑LX‑SM1270‑BIDI	10.31Gbps, Tx:1270nm/Rx:1330nm, 10KM distance, 1*LC interface
SFP‑XG‑LX‑SM1330‑BIDI	10.31Gbps, Tx:1270nm/Rx:1330nm, 10KM distance, 1*LC interface
SFP‑XG‑LH40‑SM1270‑BIDI	10.31Gbps, Tx:1270nm/Rx:1330nm, 40KM distance, 1*LC interface
SFP‑XG‑LH40‑SM1330‑BIDI	10.31Gbps, Tx:1270nm/Rx:1330nm, 40KM distance, 1*LC interface
SFP‑XG‑LH80‑SM1490‑BIDI	10.31Gbps, Tx:1490nm/Rx:1550nm, 80KM distance, 1*LC interface
SFP‑XG‑LH80‑SM1550‑BIDI	10.31Gbps, Tx:1490nm/Rx:1550nm, 80KM distance, 1*LC interface
SFP‑10GE‑T	10.31Gbps, 30m distance, SFP+ to RJ‑45 interface
LSWM2STK	10G SFP+ passive cable, 1.2M length, with stacking module
LSWM3STK	10G SFP+ passive cable, 3M length, with stacking module
LSTM1STK	10G SFP+ passive cable, 5M length, with stacking module

Additional Product Variants

10G SFP+ Optical Module (LC Interface): Designed for 10G port interconnection with SFP+ packaging and LC interface. Supports transmission distances up to 500m (850nm), 10km (1310nm), and 80km (1550nm).

10G SFP+ Optical Module (SC Interface): Includes SFP-XG-PR30-U-SM1270 and SFP-XG-PRX30-U-SM1310 models. Designed for 10G port interconnection with SFP+ packaging and SC interface, supporting up to 20km transmission.

10G SFP+ EPON OLT Optical Module (SC Interface): Includes SFP-XG-PR30-D-SM1577-C and SFP-XG-PR40-D-SM1577-C models. Designed for OLT equipment 10G port interconnection with SFP+ packaging and SC interface, supporting up to 20km transmission.

10G SFP+ Electrical Optical Module: Solves interconnection between optical and electrical ports using electrical signals for data transmission. RJ45 connector with SFP+ packaging, supports up to 10Gbps transmission rate.

10G SFP+ Cables: Designed for short-distance interconnection with SFP+ packaging, supporting up to 7m transmission distance.

10G SFP+ Optical Cables: Designed for short-distance interconnection with SFP+ packaging, supporting up to 20m transmission distance.

Application Scenarios

Widely used in data centers, backbone transmission, routing products, servers, and access networks, providing reliable solutions for diverse networking requirements.
