H3C US100C Security Series Industrial Ethernet Switch Network Solution Energy Saving

Brand Name:	H3C
Model Number:	H3C US100C
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

china

Document:

Port Lightning Protection:

No Fan, Natural Heat Dissipation

MTBF:

>100,000 Hours

Certification:

CQC Certification, Network Access License

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C US100C Network Ethernet Switch

H3C Network Industrial Ethernet Switch

H3C US100C Industrial Ethernet Switch

Product Description

H3C US100C Security Series Ethernet Switch

The H3C US100C Security Series Ethernet Switch is a new generation of green energy-saving unmanaged Ethernet switch products designed for stable and reliable network solutions in commercial and industrial applications. Featuring rich basic functions, easy installation, and convenient maintenance, these switches are ideal for small and micro business networks.

Product Specifications Comparison

Support Features	US05GC	US08GC	US103C-P	US106GC-P	US110GC-P	US120GC-P	US128GC-P
Exchange Capacity	10Gbps	16Gbps	0.6Gbps	12Gbps	20Gbps	40Gbps	56Gbps
Package Forwarding Rate	7.5Mpps	12Mpps	0.45Mpps	9Mpps	15Mpps	30Mpps	42Mpps
Fixed Ports	5 x 10/100/1000Base-T	8 x 10/100/1000Base-T	1 x 10/100 Base-T PoE+ power port, 2 x 10/100 Base-T PoE+ power port	4 x 10/100/1000Base-T PoE+ ports, 2 x 10/100/1000Base-T ports	8 x 10/100/1000Base-T PoE+ ports, 2 x 10/100/1000Base-T ports	16 x 10/100/1000Base-T PoE+ ports, 2 x 10/100/1000Base-T ports, 2 x 1000Base-X SFP optical ports	24 x 10/100/1000Base-T PoE+ ports, 2 x 10/100/1000Base-T ports, 2 x 1000Base-X SFP optical ports
MAC Address Table	2K	4K	2K	2K	2K	12K	12K
Mode Switching	Standard exchange, Port isolation, Prevent private contact	Standard exchange, Port isolation, Prevent private contact	Standard exchange, Long-distance transmission	Standard exchange, Port isolation, Long-distance transmission	Standard exchange, Port isolation, Long-distance transmission	Standard exchange, Port isolation, Long-distance transmission, Gather the upper couplet	Standard exchange, Port isolation, Long-distance transmission, Gather the upper couplet
PoE+ Support	Not supported	Yes	Yes	Yes	Yes	Yes	Yes
Single-port Max PoE Power	Not involved	27W	30W	30W	30W	30W	30W
Max PoE Power Supply	Not involved	27W	65W	110W	130W	225W	225W
Priority Power Supply Port	Not involved	Not supported	1-2 ports	1-4 ports	1-8 ports	1-16 ports	1-16 ports
Long-distance Transmission Port	Not involved	Not supported	3-4 ports	5-8 ports	13-16 ports	21-24 ports	21-24 ports
PoE Watchdog	Not involved	Not supported	Yes	Yes	Yes	Yes	Yes
Permanent PoE	Not involved	Not supported	Yes	Yes	Yes	Yes	Yes
Input Voltage	5V/1A DC, support type C	5V/1A DC, support type C	PoE/PoE+ powered, supports up to 30W	180~264V AC	180~264V AC	180~264V AC	180~264V AC
Dimensions (WDH, mm)	886322	1356322	9810427	18614036	18614036	44017344	44021044

Additional Specifications

Port Lightning Protection: 6KV

Fan: No fan, natural heat dissipation

Operating Temperature: 0ºC～45ºC / Storage Temperature: -40ºC～70ºC

Operating Humidity: 10%~90% RH / Storage Humidity: 5%~90% RH (non-condensing)

Certification: CQC certification, network access license

MTBF: >100,000 hours

Key Features

Rich Port Types

Dual uplink line design supports simultaneous connection to NVR and router for local monitoring and remote access requirements
Supports various specifications including optical port uplink, electronic port uplink, and convergence uplink to match multiple networking needs

Safe and Reliable Protection

Standard 6KV high-level lightning protection reduces risk of lightning damage and improves system stability
Supports IEEE 802.3af/at standard with integrated PoE watchdog to intelligently monitor camera abnormalities and automatically restart for self-healing fault recovery

Multiple Working Modes

Standard DIP switch enables one-click working mode switching for simple operation across different scenarios
Rich functional features including standard mode, anti-private connection, long-distance transmission, port isolation, and aggregation uplink

Excellent Design Quality

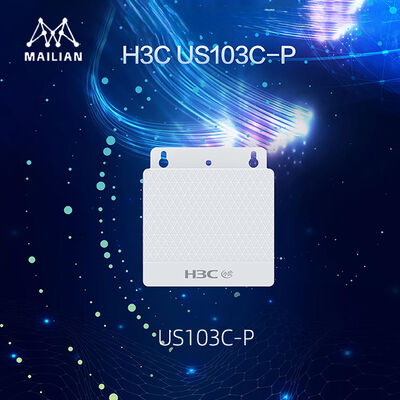

Plastic shell made of V0 flame retardant material with US103C-P supporting IP53 waterproof level
Metal shell features all-steel heat dissipation design for durability
Supports desktop, wall-mounted, and rack mounting for diverse scenario requirements with plug-and-play convenience
