| Brand Name: | H3C |
| Model Number: | H3C R4300 G6 |
| MOQ: | 1 |
| Price: | According to the configuration requirements |
| Payment Terms: | L/C,T/T,Western Union,D/A,D/P |
| Supply Ability: | 500 |

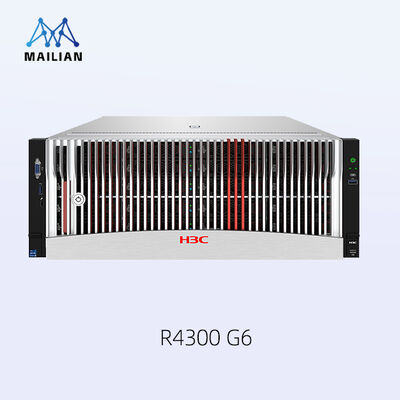

With the continuous growth in the volume of enterprise data, how to meet the demand for efficient processing and secure storage of massive data for business has become one of the major problems disturbing IT managers. The new generation of H3C UniServer R4300 G6 is based on the newly Intel® Xeon® 4th/5th Generation Scalable Processor Family, which can achieve 60% increase in the number of cores, and with the support of NVMe, EDSFF and new-generation enterprise GPUs, it can meet the comprehensive demands for high storage density, efficient data processing and linear expansion within 4U rack, which is especially suitable for distributed storage, big data and backup and archiving scenarios in the Government, Public Security, Carrier, Internet, Enterprise and other industries. Meanwhile, with the use of highly efficient energy-saving technology, it helps customers build green and low-carbon data centers.
|
CPU |
2 4th Generation Intel®Xeon®Sapphire Rapids/5th Generation Intel®Xeon®Emerald Rapids SP series 64 Cores for each Processor and 385W power consumption Supports HBM technology |
|
Chipset |
Intel®C741 |
|
Memory |
32*DDR5 RDIMMs (maximum) Up to 5600 MT/s Data Rate, Dual-socket processor with maximum capacity of 8TB |
|
Storage controller |
Standard PCIe HBA Controller or Raid Controller Support NVMe RAID |
|
FBWC |
8 GB Cache, support Supercapacitor protection |
|
Storage |
Supports SAS/SATA/NVMe U.2/EDSFF E1.S Drives Front 24LFF; Rear 12LFF+4LFF(2LFF)+4SFF; Support internal 4LFF or 8SFF*; Optional 18 NVMe drives* Support 2 M.2 as boot disk |
|
Network |
1 x onboard 1 Gbps HDM management Ethernet port 2 x OCP3.0 Ethernet adapter support NCSI function and hot-swap PCIe Standard Slots for 10/25/100/200Gb Ethernet Adapter or 100/200/400Gb InfiniBand card |
|
PCIe slots |
Up to 10 x PCIe standard slots Supports PCIe 5.0 and 2x dedicated OCP3.0 Slots |
|
Ports |
2 x VGA connector (Front and Rear) and 1 x serial port 5 x USB connectors (2 at the front and 2 at the rear and 1 at the internal), 1 * Type C for HDM |
|
GPU |
Up to 2 double-width or 8 single-width GPUs* |
|
Optical drive |
External optical drive |
|
Management |
HDM Management System(with rear independent management Ethernet port and front dedicated Type C port) H3C iFIST/UniSystem U-Center data center management platform(Optional) |
|
Security |
Supports chassis intrusion detection Supports TCM/TPM security modules Dual-factor authentication |
|
Power supply and cooling |
1+1 Redundancy power supply Optional Platinum-level l 800W/1300W/1600W/2000W/2400W/2700W -48V/336V DC power module Optional Titanium-level power supply, CQC31-461288 certified power supply level V Hot swappable redundant Fans |
|
Standards |
CE, UL, FCC, VCCI, CB, etc. |
|
Operating temperature |
Operating temperature: 5ºC to 40°C (41ºF to 104ºF) Storage Temperature: -40~85ºC (-41ºF to 185ºF) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device |
|
Dimensions (H*W*D) |
4U Height Without a security bezel: 174.8*447*781 mm (6.88*17.60*30.75 in) With a security bezel: 174.8*447*809 mm (6.88*17.60*31.85 in) |
